10
4.3 TFT 800 | 4.4 Additional devices
Contacting/Assignment

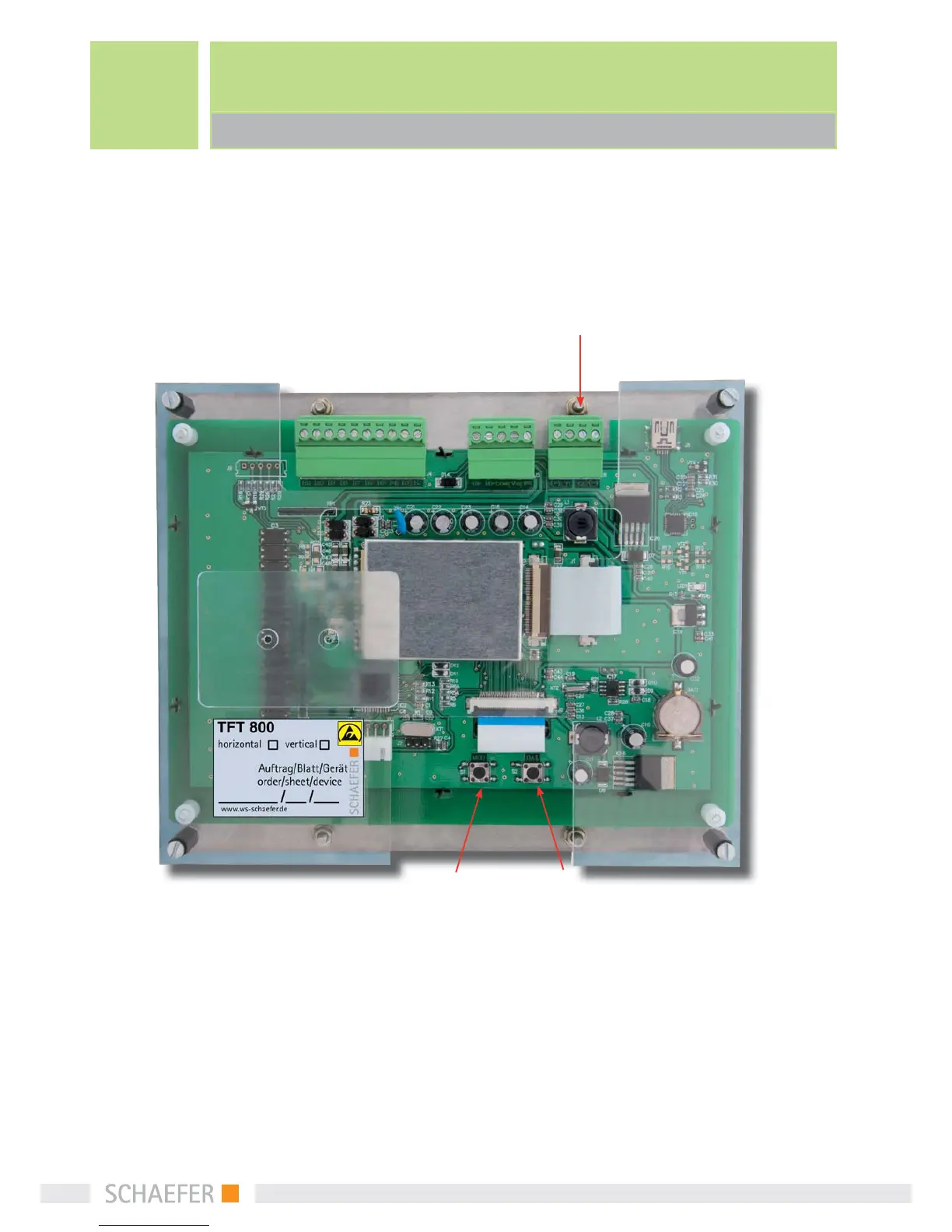

4.3 TFT 800
B11 special
B10 special
B9 special
B8 special
B7 down arrow
B6 up arrow
B5 addr. 5 / travel
B4 addr, 4
B3 addr. 3
B2 addr. 2
B1 addr. 1
B0 addr. 0
COM opposite*
V+ +24V
V- GND
MOD key DAT key
(see section
”Operation“)
*Opposite potential to B0 - B11
Common anode: COM = V+
Common cathode: COM = V-
4.4 Additional devices
With the control types Dual or Gray the lines can be
connected directly to the terminals.
With control 1 out of n and up to 6 stops the lines can
also be connected directly.
An Encoder is required for more than 7 stops.
It can be mounted directly on the rear reinforcement
plate of the TFT display.
not required
