Schaefer TFT 480 User Manual

8
4.1 TFT 480
Configuration/Simulation | Contacting/Assignment
3 Configuration/Simulation
If the TFT display is to be tested prior to installation,
the Simulation Kit is suitable

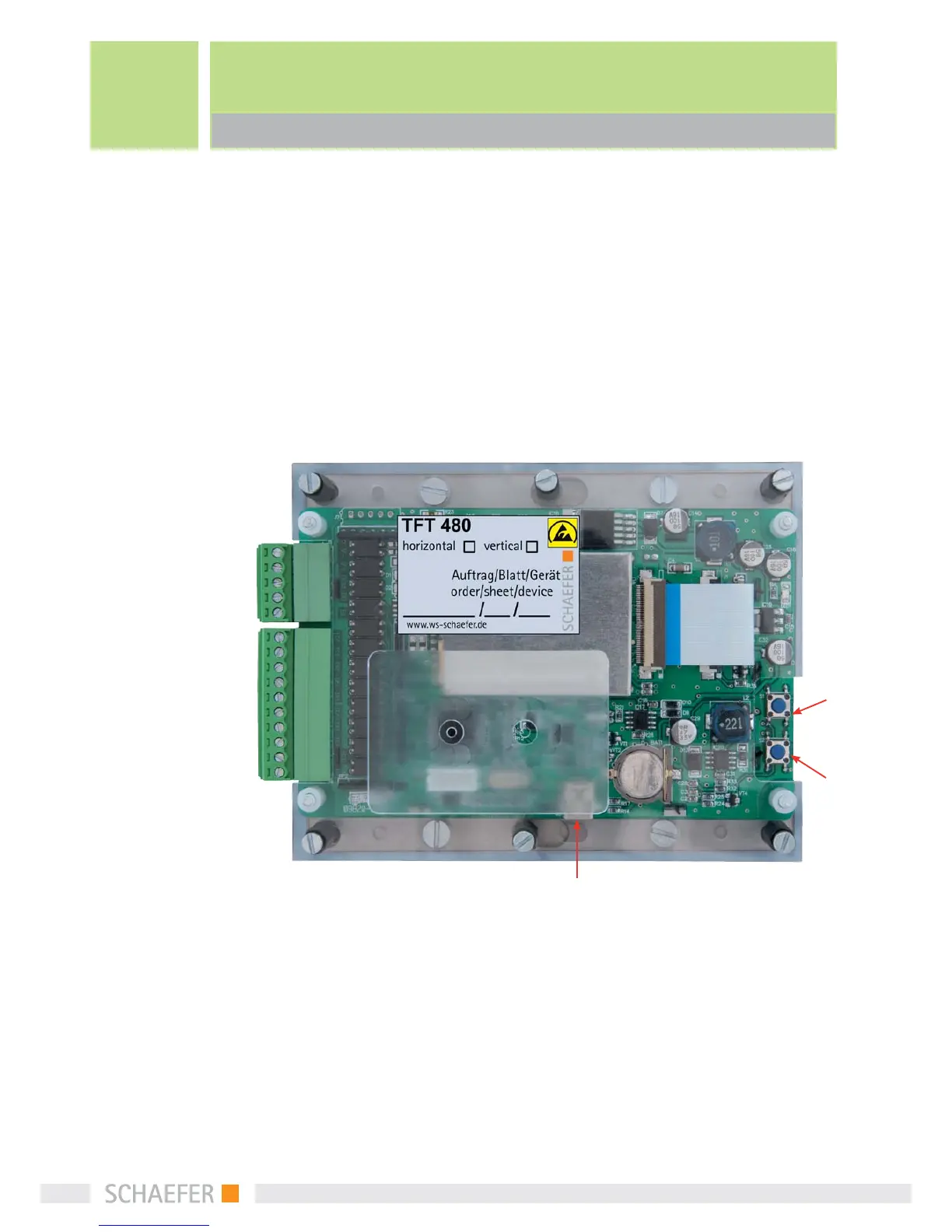

4 Contacting/Assignment
4.1 TFT 480
GND V-
+24V V+
opposite* COM
addr. 0 B0
addr. 1 B1
addr. 2 B2
addr. 3 B3
addr. 4 B4
addr. 5 B5
up arrow B6
down arrow B7
special B8
special B9
special B10
special B11
Mini-USB  PC
MOD key
DAT key
* Opposite potential to B0 - B11
Common anode: COM = V+
Common cathode: COM = V-
(see section
”Operation)
