11
Operation
5.1 Configuration | 5.2 Settings
5 Operation
5.1 Configuration
To configure the display, the device must be connected
via USB to the PC.
The MOD and DAT keys must now be pressed and held,
the power supply must be plugged in at the same time.
The keys can be released after approx. 2 sec.
The display is now in the configuration mode and can
be configured using the PC.
5.2 Settings
The following modes can be selected with the TFT 640
and TFT 800 displays using the MOD key:
Time HH: hours
MM: minutes
Date YY: year
MM: month
DD: day
WW: weekday
Brightness BR: brightness
FL control: BIN (Dual)
GREY
BCD
… (not needed)
7SEG (7-segment)
1W1F (1ausN)
Other ID: Not required
The values can be set accordingly with the DAT key.

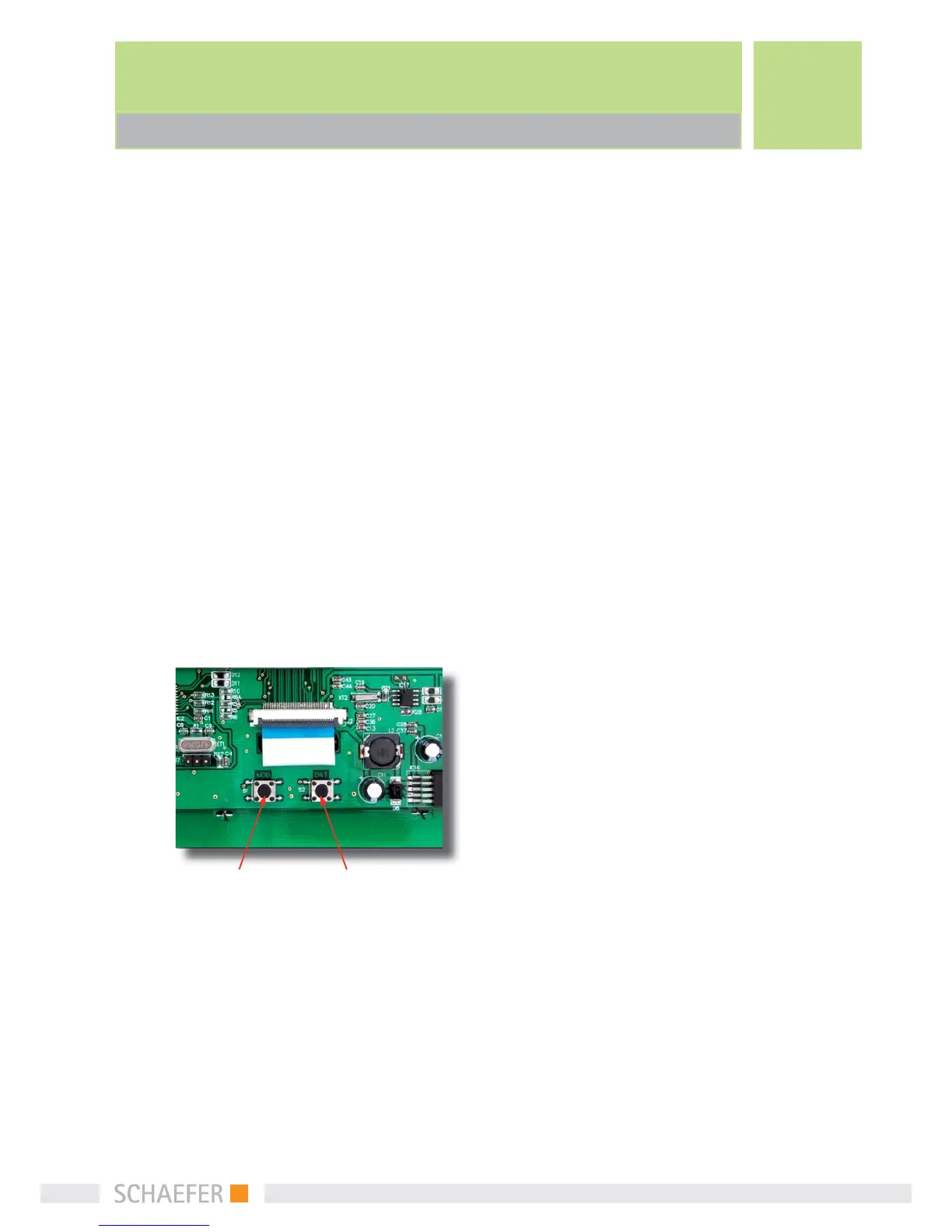

MOD key
DAT key
