Schaudt EBL 101 D - F Layout

Instruction Manual EBL 101 D / EBL 101 C with OVP
15
Date: 29.04.2010
811.554 BA / EN
F Layout
11
23 4 5
67 8
12
9
13
1
14
10
16171819 15
*(

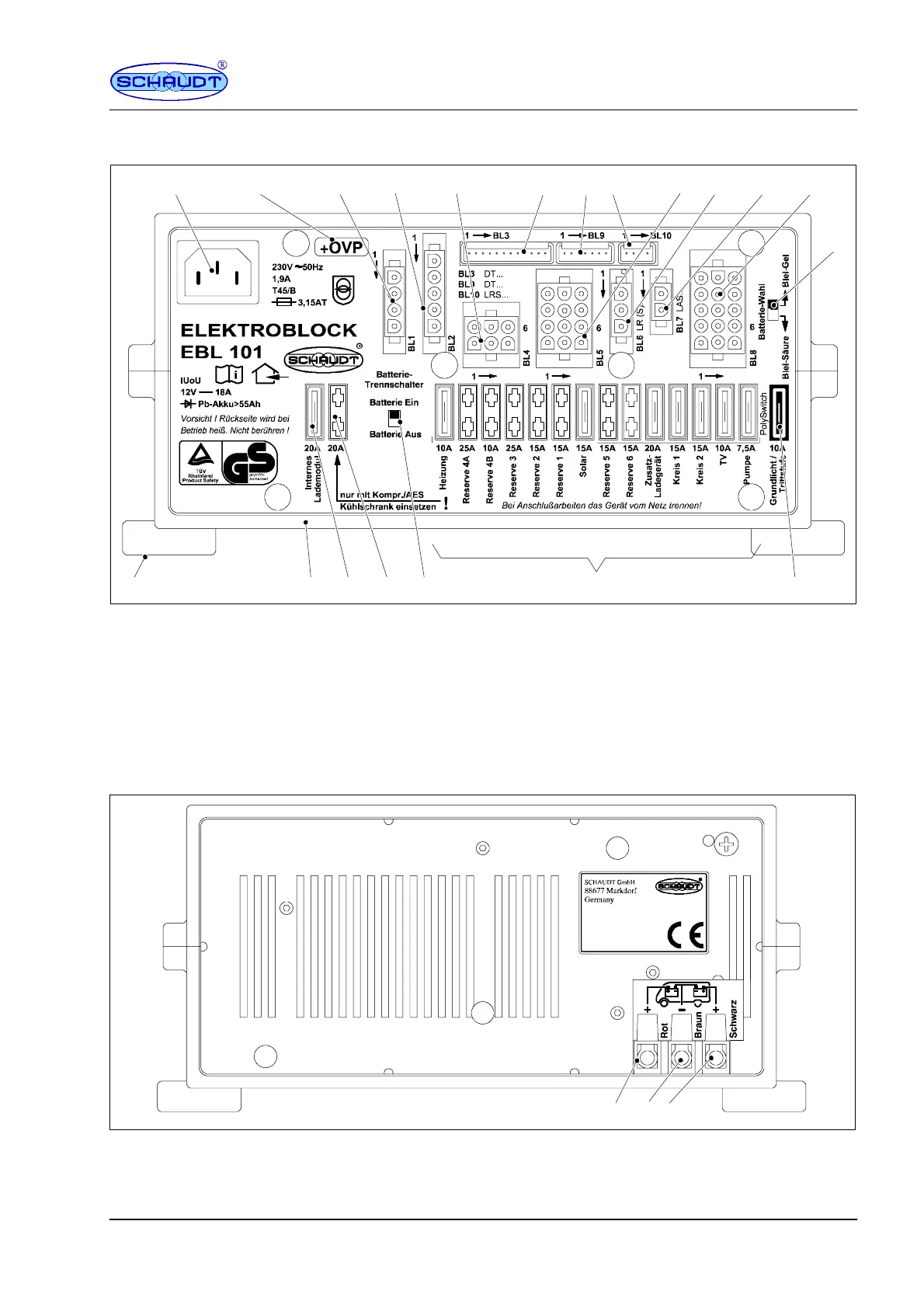

Fig. 4 Layout of Electroblock EBL 101 D / EBL 101 C with OVP (front); *(+OVP label only for EBL 101 C with OVP)
1 Mains connector
2 Connection block, refrigerator supply
3 Connector block, refrigerator supply D+,
Battery sensor/control lines
4 Connector block, heating, floor light, step
5 Connector, DT ... control and switch panel
6 Connector, DT ... control and switch panel
7 Connection block, solar regulator (measurement signal)
8 Connection block, reserve
9 Connection block, solar regulator (supply)
10 Connection block, additional charger
11 Connection block TV, pump, consumers
12 Selector switch acid/gel battery
13 Self resetting step fuse (internal)
14 Flat vehicle fuses, consumers
15 Battery cut-off switch
16 AES refrigerator fuse
17 Flat vehicle fuse, internal charger module
18 Housing
19 Assembly flaps
123
Fig. 5 Layout of Electroblock EBL 101 D / EBL 101 C with OVP (rear)
1 Connection, living area battery
2 Connection, earth
3 Connection, starter battery
