Operating Instructions Operator and control panel LT 100
2
Date: 19.07.2018 8310068 BA / EN
1 Introduction
This instruction manual contains important information for the safe operation
of equipment supplied by Schaudt.
The operating instructions should always be kept in the vehicle.
Y ATTENTION!
Failure to comply with the sign may result in damage to equipment or other
connected loads.
2 Application and function
The LT 100 control panel is the central console for electroblock EBL ... /
CSV ... supplying all 12V consumers in the electrical system on board the
motorhome. It is usually installed in an easily accessible place high up near
the door of the vehicle.
+--
+--

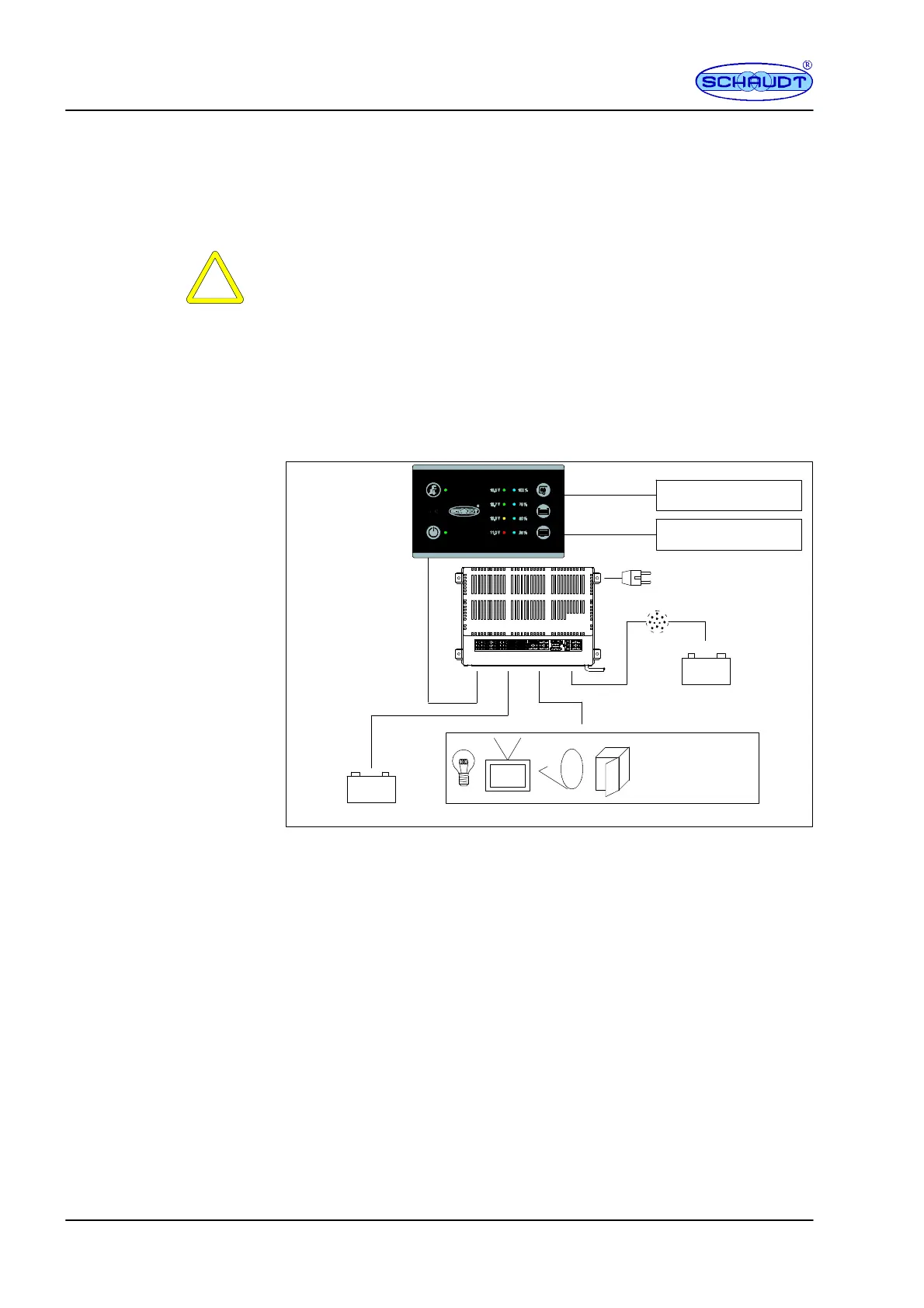

LT 100
control panel
Power supply
CSV ...
EBL ...
starter battery
(car or base vehicle)
Lighting
Pump
Heater
etc.
230V AC
12V consumersLeisure area battery
W ater tank
W aste water tank
Fig. 1 On-board power supply system
The main layout of the on-board vehicle electrical system is shown in Fig. 1.
The functions of the LT 100 control panel is to switch on and off the 12V
supply to the caravan, and to display the battery voltage, the tank levels and
the connection to the mains supply (230 V).
An EBL ... / CSV ... power supply must be connected for operation. This pro-
vides the 12V supply to the caravan devices and charges the battery.
The following connection options are available:
F EBL ... / CSV ... power supply
F W ater tank probe
F W aste water tank probe or sensors
Pur pose
Functi on
System devices
