4.5 Electric connections
ATTENTION
These steps have to be performed by a qualified technician/operator, by referring to the
electrical drawings provided within this document.
4.5.1 Remote control panel mounting
The remote control panel has the following dimensions:
width 100 mm. height 66 mm.
It can be fixed on any internal boat panel, provided that the area behind is free of humidity and condensation
and there is enough depth to house the rear part of the panel (approx. 50 mm.).
The cut to be performed on the boat covering panel, to encase the remote control panel, has the following
dimensions:
width 80 mm. height 50 mm.
The remote control panel can be connected through the pre-wired multiple cable of a 10mt standard length
provided. It is possible to require to the factory a longer cable if necessary.
REMOTE CONTROL PANEL

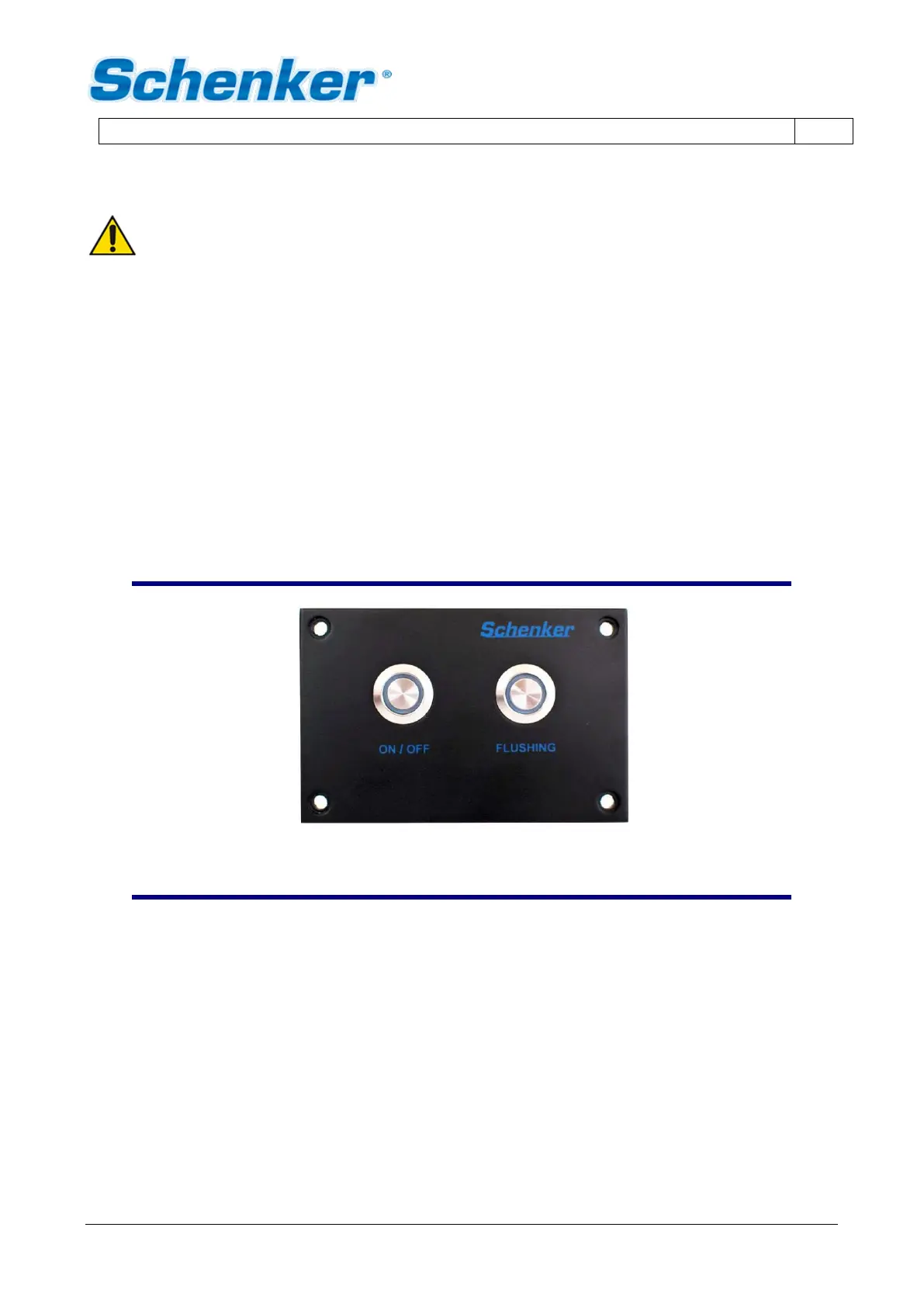

fig. 4-3
