20

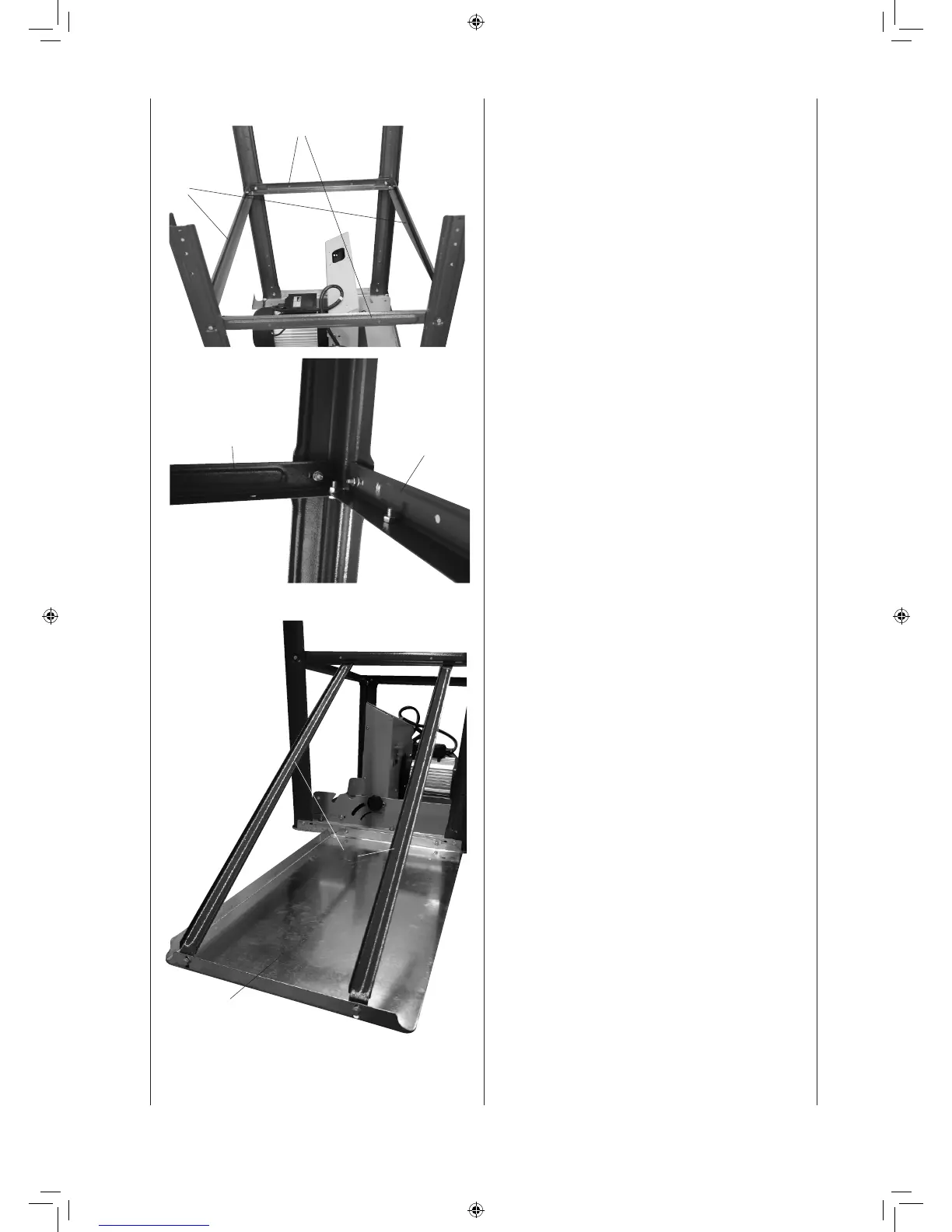

Fig. 6 / 6.1
Montieren Sie 2 Längsstreben (10) und 2 Querstreben
(9), an die Gestellfüße (2,3,4,und 5) mit 12 Sechs-
kantschrauben M 6 x 16, 12 Scheiben 6, 12 Sechskant-
muttern M 6. Die Schrauben von Hand leicht festziehen.
Fig. 7 / 7.1 / 7.2 / 7.3
MontierenSiedieTischverlängerungsplatte(8),mitzwei
Streben(11),anTischplatteundQuerstrebemit6Sechs-
kantschrauben M6 x 16, 6 Scheiben 6, und 6 Sechskant-
muttern M6. Die Schrauben von Hand leicht festziehen.
(DieTischplatte(8)kannauchseitlichalsTischverbreite-
rungmitdenverlängertenStrebenmontiertwerden.)
Fig. 6.1
10
9
Fig. 6
9
10
Fig. 7
11
8
BA hs 120o (st 12).indd 20 08.04.11 10:50
