Scheppach Tiger 2500 - Electrical Schematics; Motor Wiring Diagram

Scheppach Tiger 2500
12 pages
Print Icon
To Next Page IconTo Next Page
To Next Page IconTo Next Page
To Previous Page IconTo Previous Page
To Previous Page IconTo Previous Page
Loading...

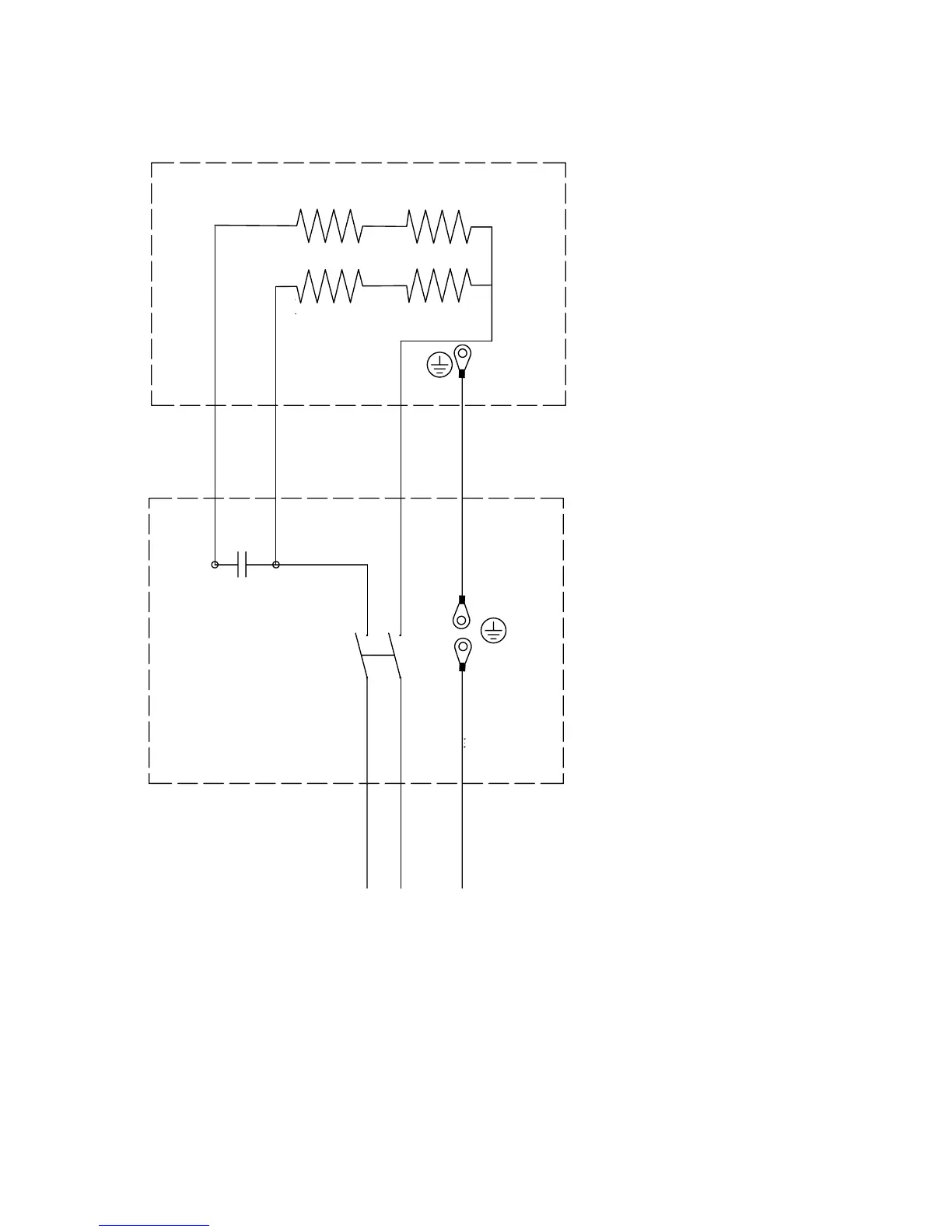

Schaltplan / wiring diagram
MOTOR
White
Auxiliary winding
Black
Green
Wire box
Blue
Main winding
Black
Black
White
Green
international 37
