115VAC 30W
1 Hot Tubes
When using the tube gain stage, Freya’s
tubes get hot. We don’t recommend
touching them when in operation, or
letting your pets sleep on them.
2 Mute LED
This light is on when Freya is muted.
3 Buffer LED
This light is on when using the buffer.
This stage also provides SE-to-balanced
conversion.
4 Tube LED
This light is on when using the tube gain.
This provides SE-to-balanced conversion
and gain.
5 Mute Button
Press to toggle mute on and off.
6 Output Select
Press to select the output stage:
• Passive (resistor ladder only, 0dB gain)
• Differential buffer (0dB gain)
• Differential tube gain (12-13.5dB gain)
OPERATION

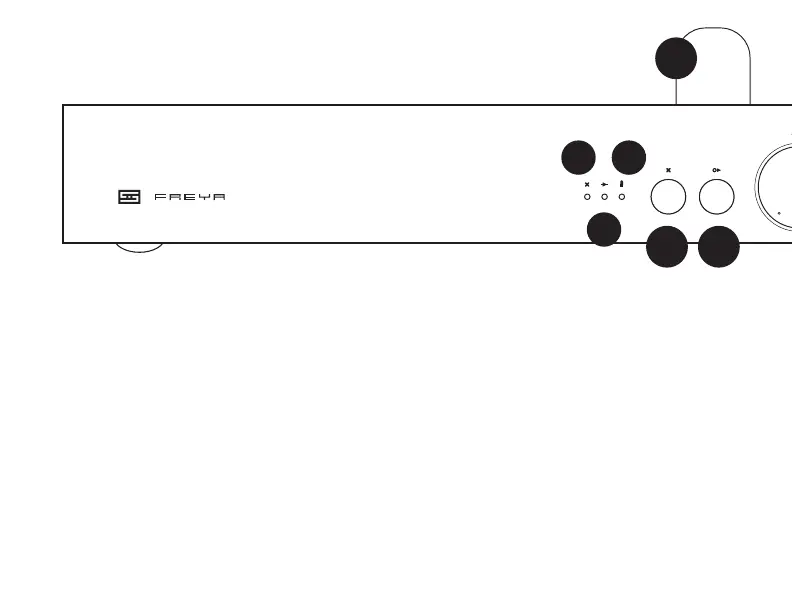

1
3
2
5 6
4
