Schlage L9485 User Manual

L Service Manual
56

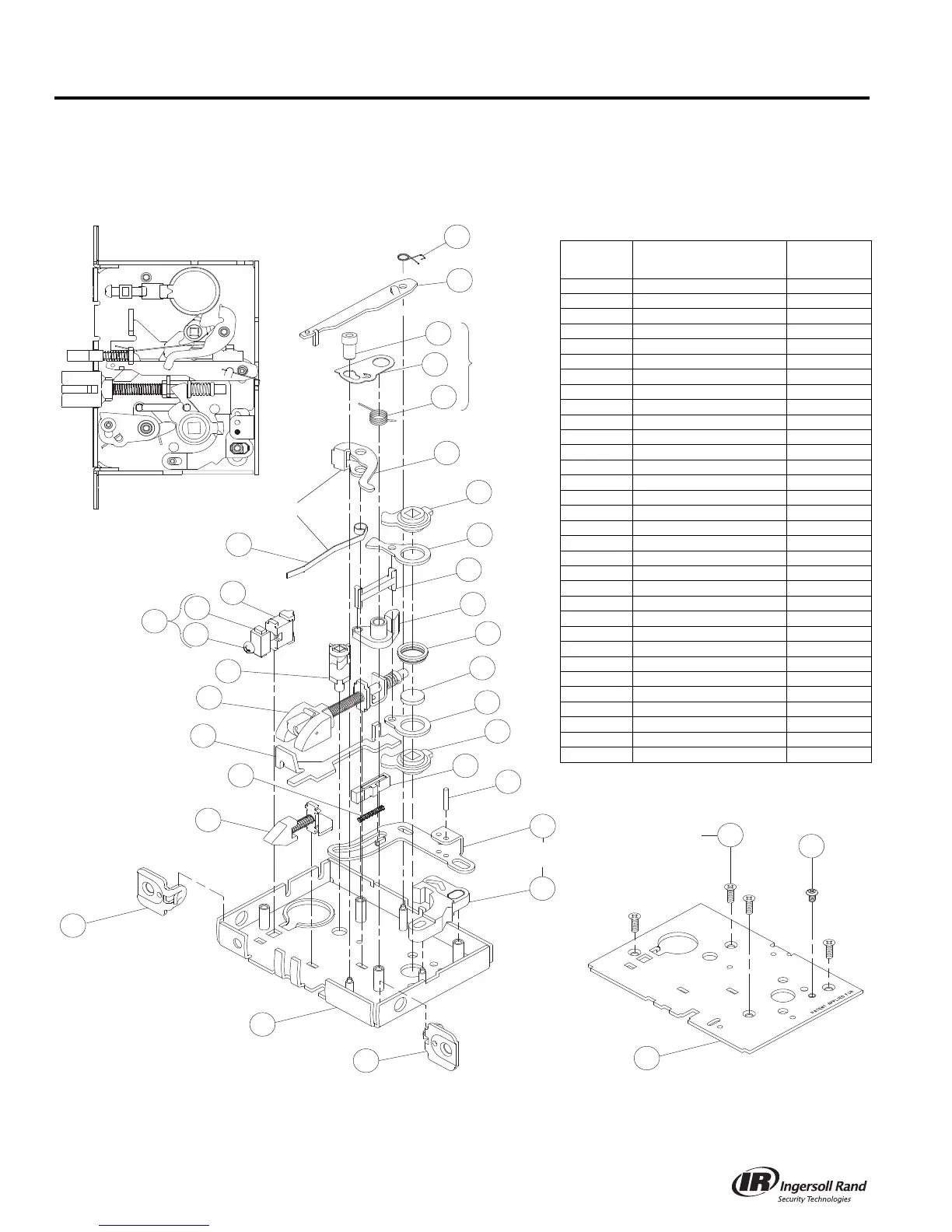

Lock Case Assemblies
L9076, L9077
Assembled Lock Case L283-039
** Please see “Assembly of Lock Case Parts” on page 87.
NOTE: Lock case assembly shown for LH and LHR doors. See page 117 for instructions on changing the lock hand.
58
33
54
52
4
26
48
38
49
30
27
24
17
19
22
23
18
21
20
17
50
25
39
55
10
8
47
56
53
5
51
51
7
34
(couple before
assembly)**
(couple before assembly)**
13
**
Number Description
Part
Number
5 Auxiliary Latchbolt L283-006
7 Locking Link L283-010
8 Latchbolt L283-049
10 Cylinder Plate & Screw L283-055
13 L9000 Lock Case L283-112
17 Retractor Hub L583-019
18 Hub Spacer L583-020
19 Retractor Lever L583-021
20 Retractor Rocker L583-022
21 Blocking Plate L583-023
22 Retractor Link L583-024
23 Retractor Crank L583-025
24 Hub Spring L583-026
25 Fire Door Fuse L583-027
26 Fire Door Catch L583-028
27 Turn Hub L583-029
30 Turn Hub Spring L583-035
33 Stop Spring L583-044
34 Locking Catch L583-045
38 Link Pin L583-050
39 Transfer Lever L583-051
47 Transfer Lifter L583-156
48 Holdback Dog L583-174
49 Dog Spring L583-192
50 Auxiliary Stop L583-196
51 1¹⁄₄" Faceplate Tab L583-426
52 Case Cover Screws L583-454
53 Cylinder Retainer Screw L583-481
54 Lock Handing Screw L583-485
55 Cylinder Retainer L583-490
56 Screw Plate L583-492
58 Lock Case Cover L583-496

Schlage L9485 Specifications

General

Type	Deadbolt
Brand	Schlage
Model	L9485
Series	L Series
Function	Single Cylinder
Finish	Satin Nickel
Door Thickness	1-3/8" to 1-3/4"
Material	Metal
Handing	Non-Handed
Latch Type	Deadlatch
Strike Plate Included	Yes
Mounting Hardware Included	Yes
ANSI Grade	Grade 1
Keying	Keyed Different
Backset	2-3/4"
