Schlage L9485 User Manual

L Service Manual
92
L Escutcheon Trim

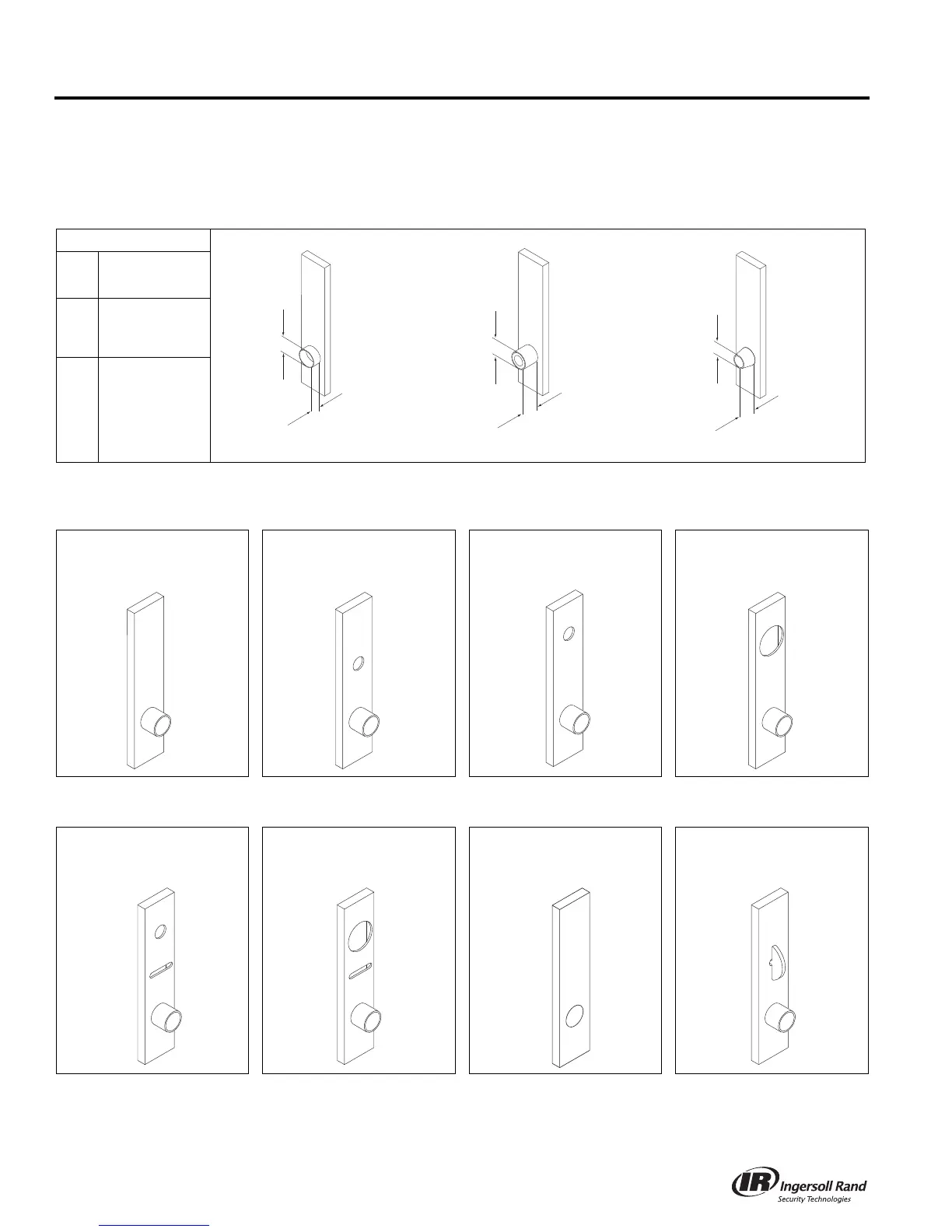

Outside Escutcheon Dimensions
(Bushing attached at factory)
Outside Escutcheons
NOTES: When ordering trim parts, specify the complete design and finish (e.g. 09-636 01L 605).
See Schlage Commercial Pri ce book for available finishes.
Knob/LeverDesign
ABC
A 41, 42
B 01, 02, 03, 05, 06,
07, 12, 17, 18
C
ACC, AST, MER,
OME, STA
8" x 1³⁄₄" x ⁷⁄₁₆" Cold Forged Brass or Bronze, and Stainless Steel
09-636 Outside Blank x
Knob/Lever
09-637 Emergency Turn x
Knob/Lever
09-638 Concealed Cylinder x
Knob/Lever
09-639 Full Face Cylinder x
Knob/Lever
Specify 09-636 or 09-550 with
knob/lever.
Specify 09-637 or 09-551 with
knob/lever.
Specify 09-638 or 09-552 with
knob/lever.
Specify 09-639 or 09-553 with
knob/lever.
09-640 Concealed Cylinder
with Indicator x Knob/Lever
09-641 Full Face Cylinder
with Indicator x Knob/Lever
XL11-636 Blank Outside 09-636 x XL11-446 Outside
w/ Thumbturn x Knob/Lever
Specify 09-640 or 09-554 with
knob/lever. Specifiy L583-375
for “Occupied”.
Specify 09-641 or 09-555 with
knob/lever. Specifiy L583-375
for “Occupied”.
Specify XL11-636 OOL. For L9040 x XL11-446 function.
Not sold separately as a part.
1¹⁄₈"
⁹⁄₁₆"
1"
⁷⁄₈"
³⁄₄"
⁷⁄₈"

Schlage L9485 Specifications

General

Type	Deadbolt
Brand	Schlage
Model	L9485
Series	L Series
Function	Single Cylinder
Finish	Satin Nickel
Door Thickness	1-3/8" to 1-3/4"
Material	Metal
Handing	Non-Handed
Latch Type	Deadlatch
Strike Plate Included	Yes
Mounting Hardware Included	Yes
ANSI Grade	Grade 1
Keying	Keyed Different
Backset	2-3/4"
