Schlage L9486 - L9000-Series Deadbolt Trim: L9460 Series

144 pages

Save Page as PDF

To Next Page

To Previous Page

Service Manual L

Trim Assemblies

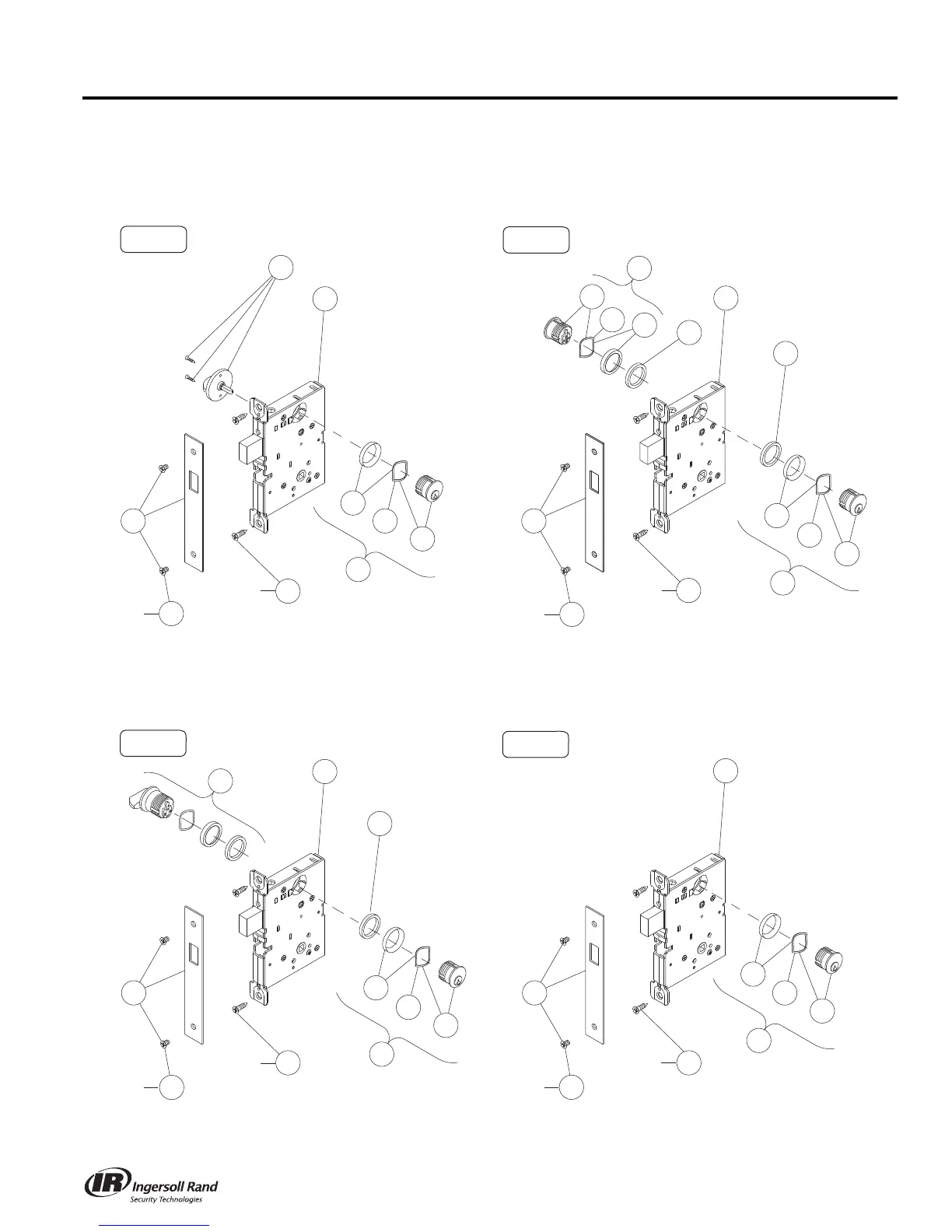

L9000-Series Deadbolt Trim: L9460, L9462, L9463, L9464

NOTE: Standard full face mortise cylinder shown.

L9463P

L9464P

L9460P

L9462P
