Trim assemblies
Schlage • ND-Series service manual • 53

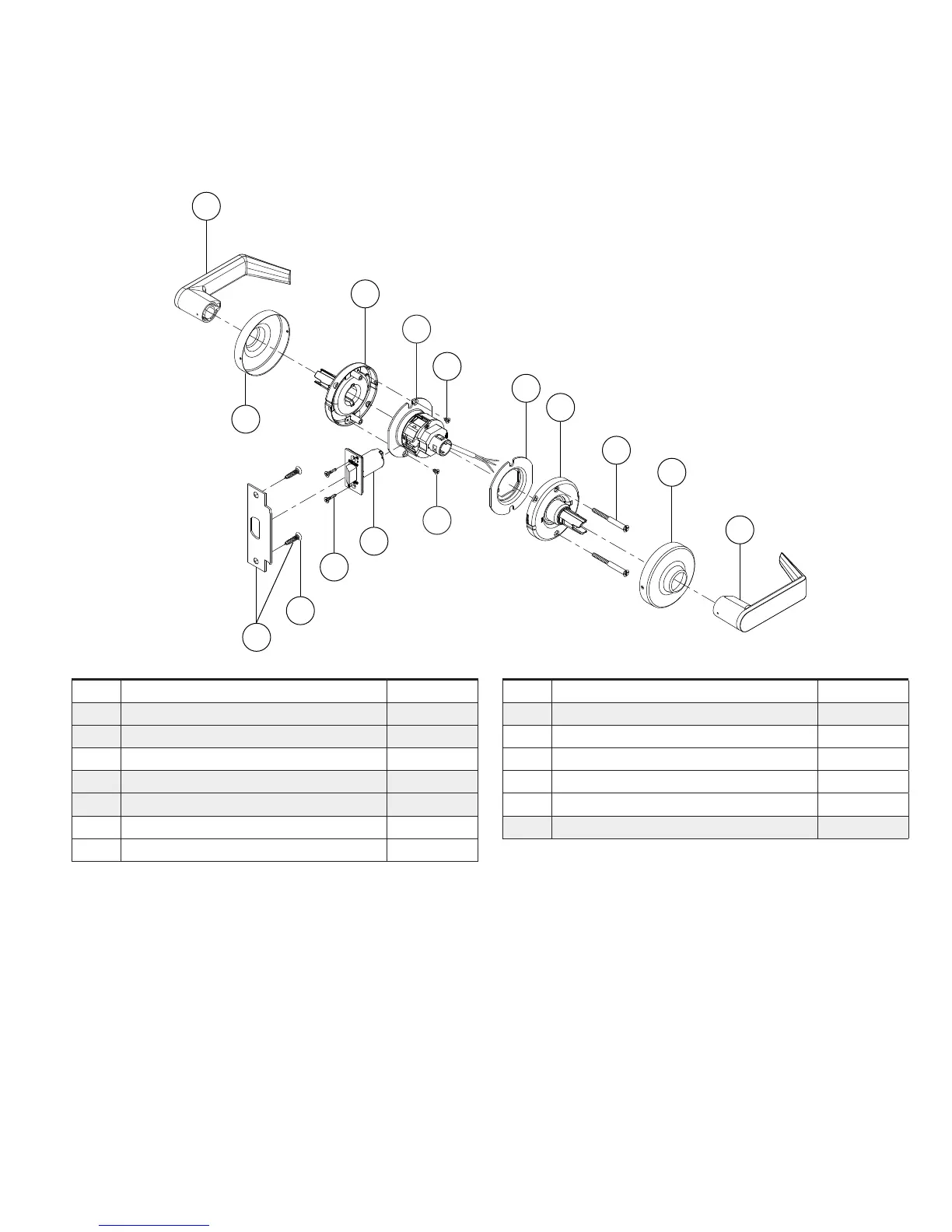

Passage latch with request-to-exit
ND10 RX**
A
C
B
C
P
E
J
D
K
N
Q
M
GG
H
GG
Letter Description Part number
A Outside lever—closed 03-230
B Inside lever—closed 03-230
C Rose 03-042
D Outside spring cage assembly—passage N523-218
E Inside spring cage assembly—standard N523-221
H Chassis 24088429*
J Anti-rotation plate N523-055
Letter Description Part number
K Springlatch 13-248
M Strike assembly 10-025
N Latch screw C603-897
P Mounting screws N523-021
Q Strike screws C603-256
GG Adjustment plate screws N523-240
* Chassis part number is for reference only.
** For RX details, see Request-to-exit feature on page 106.
Designates new parts or assemblies.
