54 • Schlage • ND-Series service manual

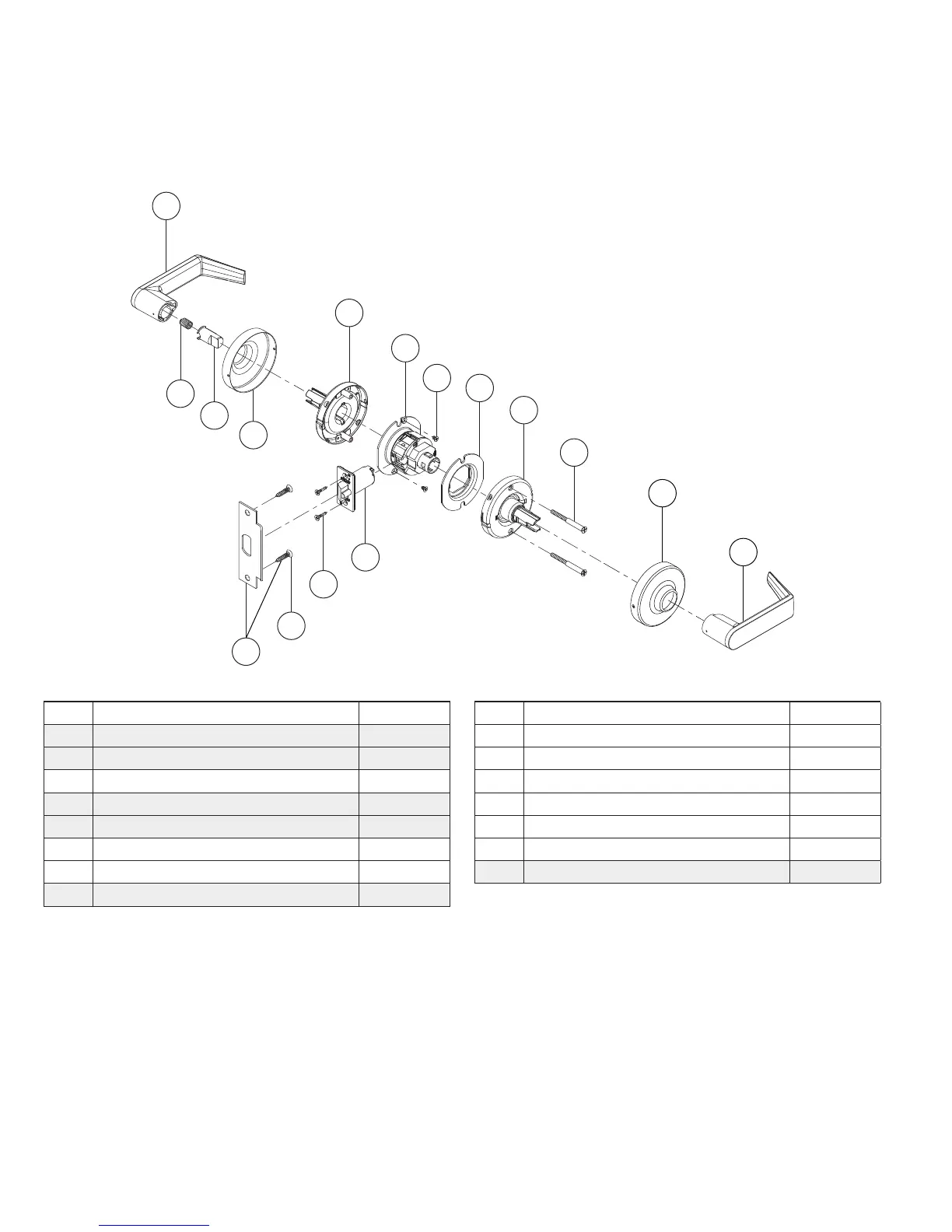

Trim assemblies
Exit lock
ND12
A
C
P
E
J
GG
H
D
K
N
Q
M
CC
DD
B
C
Letter Description Part number
A Outside lever—closed 03-230
B Inside lever—closed 03-230
C Rose 03-042
D Outside spring cage assembly—standard N523-218
E Inside spring cage assembly—standard N523-221
H Chassis 24088262*
J Anti-rotation plate N523-055
K Deadlatch 13-247
Letter Description Part number
M Strike assembly 10-025
N Latch screws C603-897
P Mounting screws N523-021
Q Strike screws C603-256
CC Spring, plunger C503-331
DD Catch stop N523-041
GG Adjustment plate screws N523-240
* Chassis part number is for reference only.
Designates new parts or assemblies.
