Schlage ND75 - Exit lock-electrically locked (fail safe) or electrically unlocked (fail secure)

Trim assemblies
Schlage • ND-Series service manual • 57

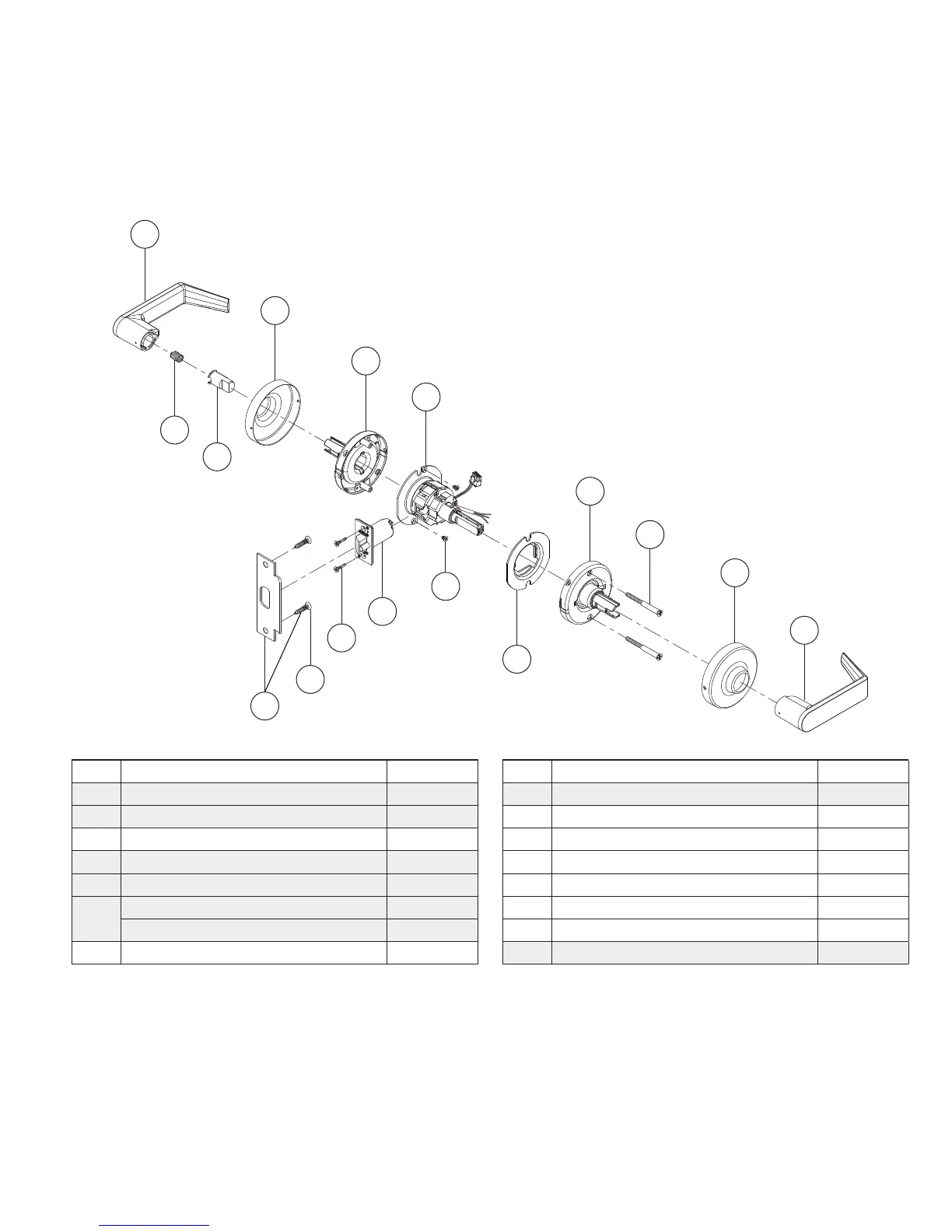

Exit lock— electrically locked (fail safe) or electrically unlocked (fail secure)
with request-to-exit
ND12EL RX or ND12EU RX**
A
B
E
H
D
C
K
N
Q
M
CC
DD
GG
P
C
J
Letter Description Part number
A Outside lever—closed 03-230 
B Inside lever—closed 03-230 
C Rose 03-042
D Outside spring cage—standard N523-218 
E Inside spring cage—standard N523-221 
H
Chassis, electrically locked 63-184*
Chassis, electrically unlocked 63-185*
J Anti-rotation plate N523-131
Letter Description Part number
K Deadlatch 13-247 
M Strike assembly 10-025
N Latch screw C603-897
P Mounting screw N523-021
Q Strike screw C603-256
CC Spring, plunger C503-331
DD Catch stop N523-041
GG Adjustment plate screws N523-240 
* Chassis part number is for reference only.
** For electrified lock details, see Electrified locks on page 105. For RX details, see Request-to-exit feature on page 106.
 Designates new parts or assemblies.
