66 • Schlage • ND-Series service manual

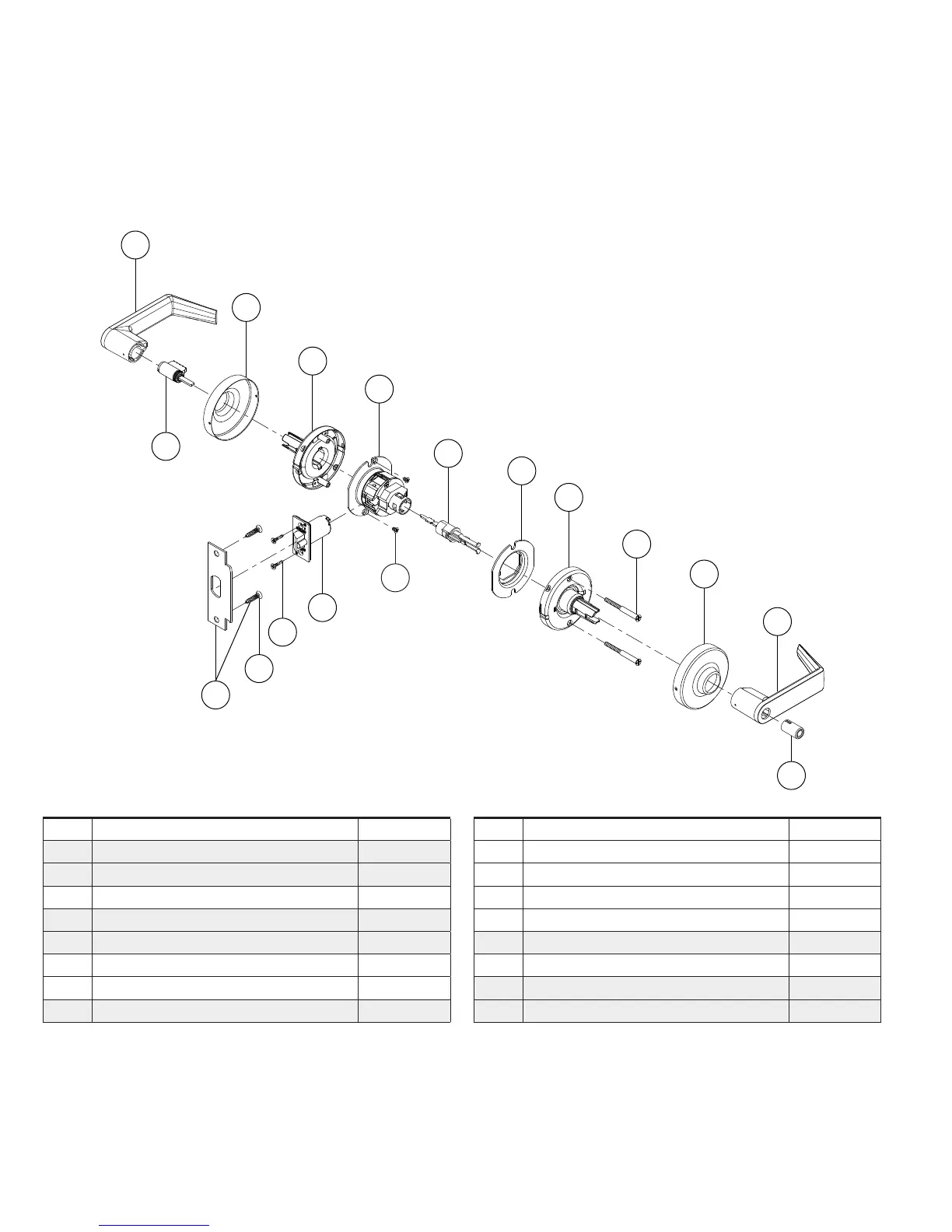

Trim assemblies
Entrance/oce lock
ND50
ND50PD (shown), ND50RD √, ND50GD √
A
B
C
P
E
J
H
D
K
N
Q
M
S
R
V
C
GG
Letter Description Part number
A Outside lever—open (cylinder) 03-231
B Inside lever—open (button) 03-233
C Rose 03-042
D Outside spring cage assembly—standard N523-218
E Inside spring cage assembly—standard N523-221
H Chassis 24088247*
J Anti-rotation plate N523-055
K Deadlatch 13-247
Letter Description Part number
M Strike assembly 10-025
N Latch screw C603-897
P Mounting screw N523-021
Q Strike screw C603-256
R Plunger—push button N123-086
S Cylinder—6-pin 23-065
V Push button N523-209
GG Adjustment plate screws N523-240
For RD (Full Size Interchangeable Core) and GD (SFIC) inside trim configurations, see page 98.
* Chassis part number is for reference only.
Designates new parts or assemblies.
