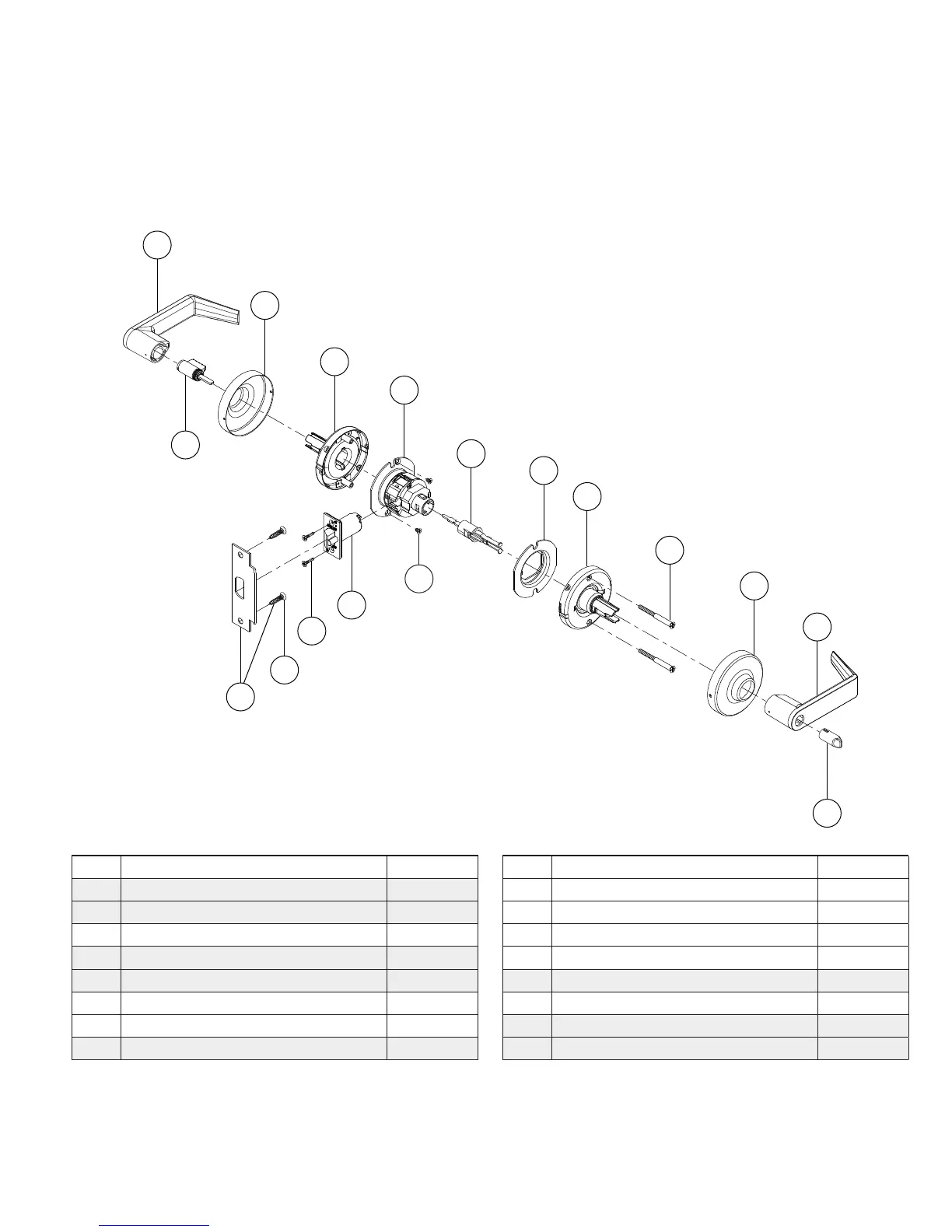

Schlage ND75 - Entrance;office lock

Trim assemblies
Schlage • ND-Series service manual • 67
Entrance/oce lock
ND53
ND53PD (shown), ND53RD √, ND53GD √
A
B
C
P
E
J
H
D
K
N
Q
M
S
R
W
C
GG
Letter Description Part number
A Outside lever—open (cylinder) 03-231 
B Inside lever—open (button) 03-233 
C Rose 03-042
D Outside spring cage—standard N523-218 
E Inside spring cage—standard N523-221 
H Chassis 24088247*
J Anti-rotation plate N523-055
K Deadlatch 13-247 
Letter Description Part number
M Strike assembly 10-025
N Latch screw C603-897
P Mounting screw N523-021
Q Strike screw C603-256
R Plunger—push and turn N123-085 
S Cylinder—6-pin 23-065
W Push and turn button N523-210 
GG Adjustment plate screws N523-240 
√ For RD (Full Size Interchangeable Core) and GD (SFIC) inside trim configurations, see page 98.
* Chassis part number is for reference only.
 Designates new parts or assemblies.
