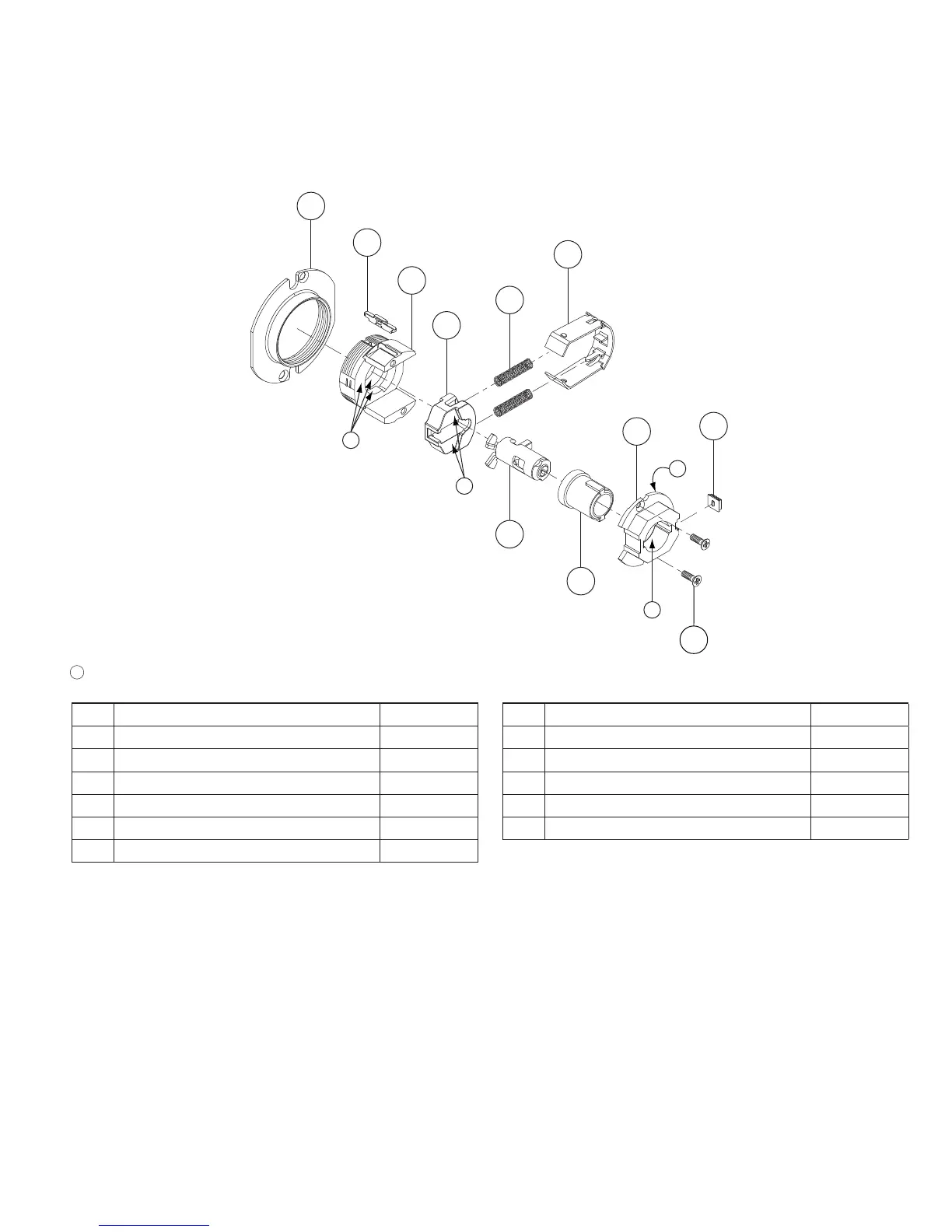

Chassis
Schlage • ND-Series service manual • 23
Special— storeroom exit lock
ND25X80
37
29
1
30
25
8
22
a
a
a
53
23
a
52
6
a
Apply light film of 100% synthetic grease on surfaces with brush.
No. Description Part number
1 Slide spring C503-019
6 Chassis screw L583-454
8 Keycam assembly N123-008
22 Spindle N523-013
23 Outside housing 24088544
25 Inside hub 24085060
No. Description Part number
29 Slide N523-149
30 Slide clip N523-025
37 Adjustment plate N523-054
52 Gauge insert 23988066
53 Insert, inside hub N523-160*
* Not sold separately as a part.
