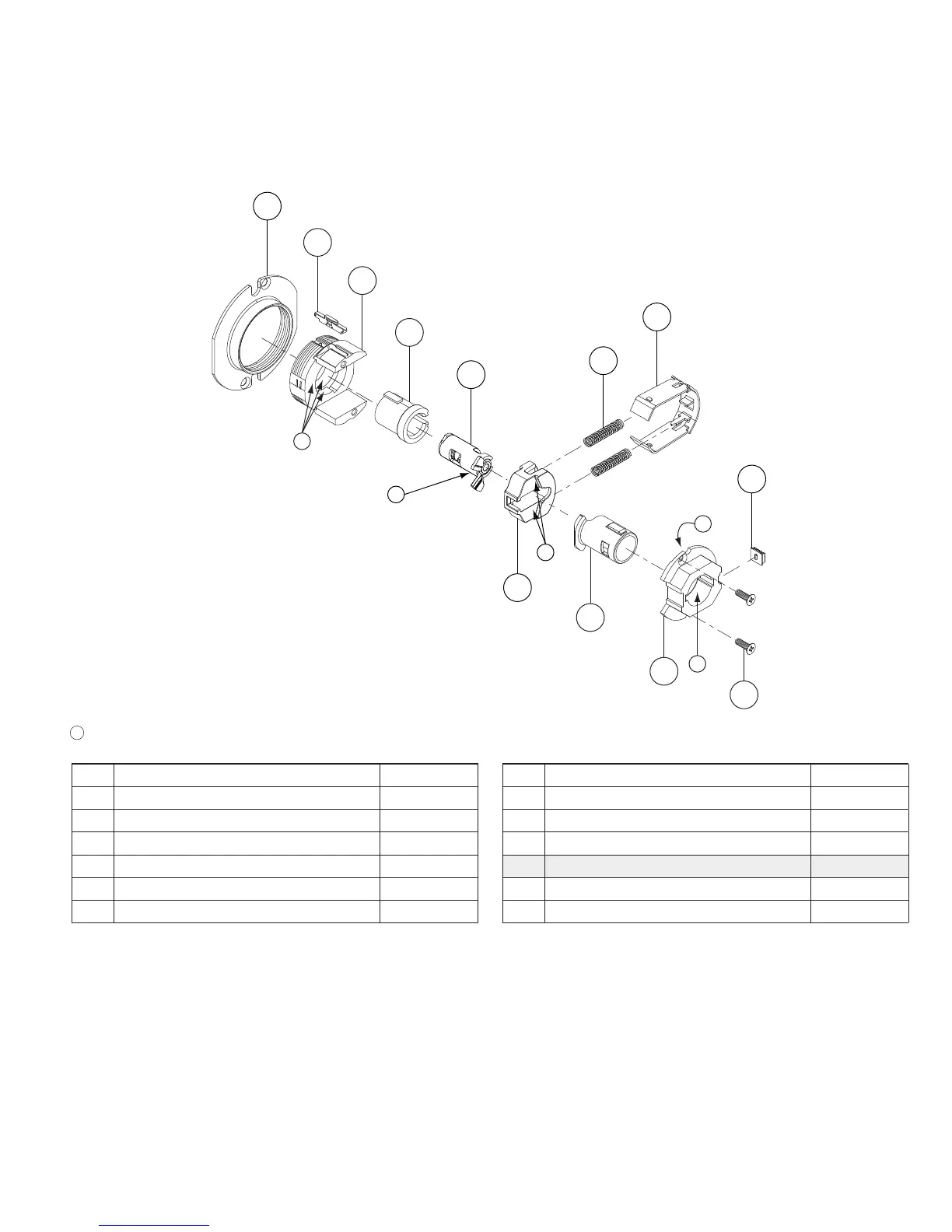

Chassis
Schlage • ND-Series service manual • 45
Storeroom lock with Vandlgard
®
ND96
37
13
a
23
22
a
52
a
a
6
38
24
53
1
30
29
a
a
Apply light film of 100% synthetic grease on surfaces with brush.
No. Description Part number
1 Slide spring C503-019
6 Chassis screw L583-454
13 Keycam assembly N123-013
22 Spindle N523-013
23 Outside housing 24088544
24 Inside hub 24085037
No. Description Part number
29 Slide N523-149
30 Slide clip N523-025
37 Adjustment plate N523-054
38 Spindle N523-177
52 Gauge insert 23988066
53 Insert, inside hub N523-160*
* Not sold separately as a part.
Designates new parts or assemblies.
