Chassis
Schlage • ND-Series service manual • 27

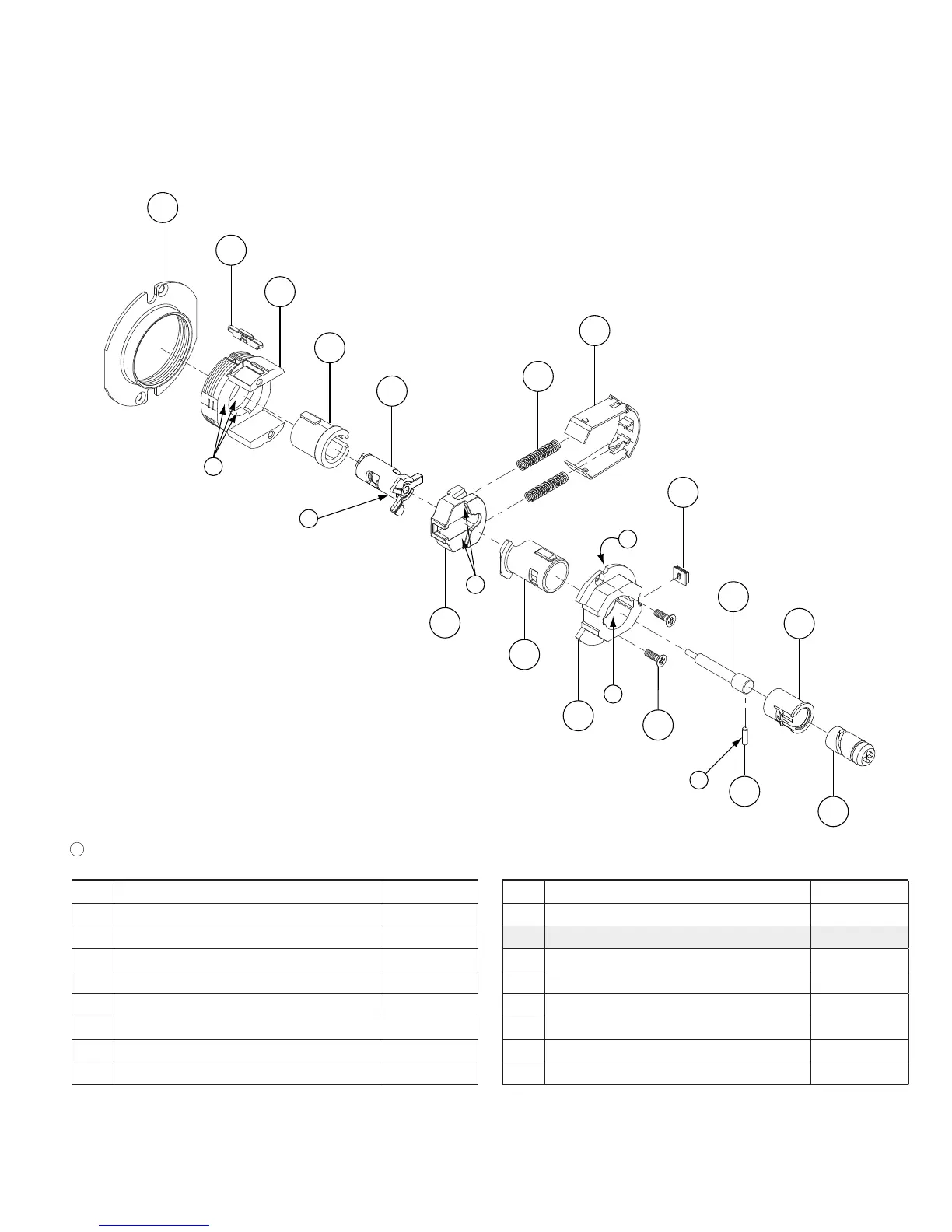

Vestibule lock
ND60
42
43
40
41
53
37
22
1
30
24
38
29
a
a
a
23
a
52
7
a
6
a
a
Apply light film of 100% synthetic grease on surfaces with brush.
No. Description Part number
1 Slide spring C503-019
6 Chassis screw L583-454
7 Keycam assembly N123-007
22 Spindle N523-013
23 Outside housing 24088544
24 Inside hub 24085037
29 Slide N523-149
30 Slide clip N523-025
No. Description Part number
37 Adjustment plate N523-054
38 Spindle N523-177
40 Plunger sleeve N523-063
41 Plunger N523-064
42 Cam pin N523-065
43 Cam N523-066
52 Gauge insert 23988066
53 Insert, inside hub N523-160*
* Not sold separately as a part.
Designates new parts or assemblies.
