Schlage ND85 - Unlocked (Fail Secure)

Chassis
Schlage • ND-Series service manual • 19

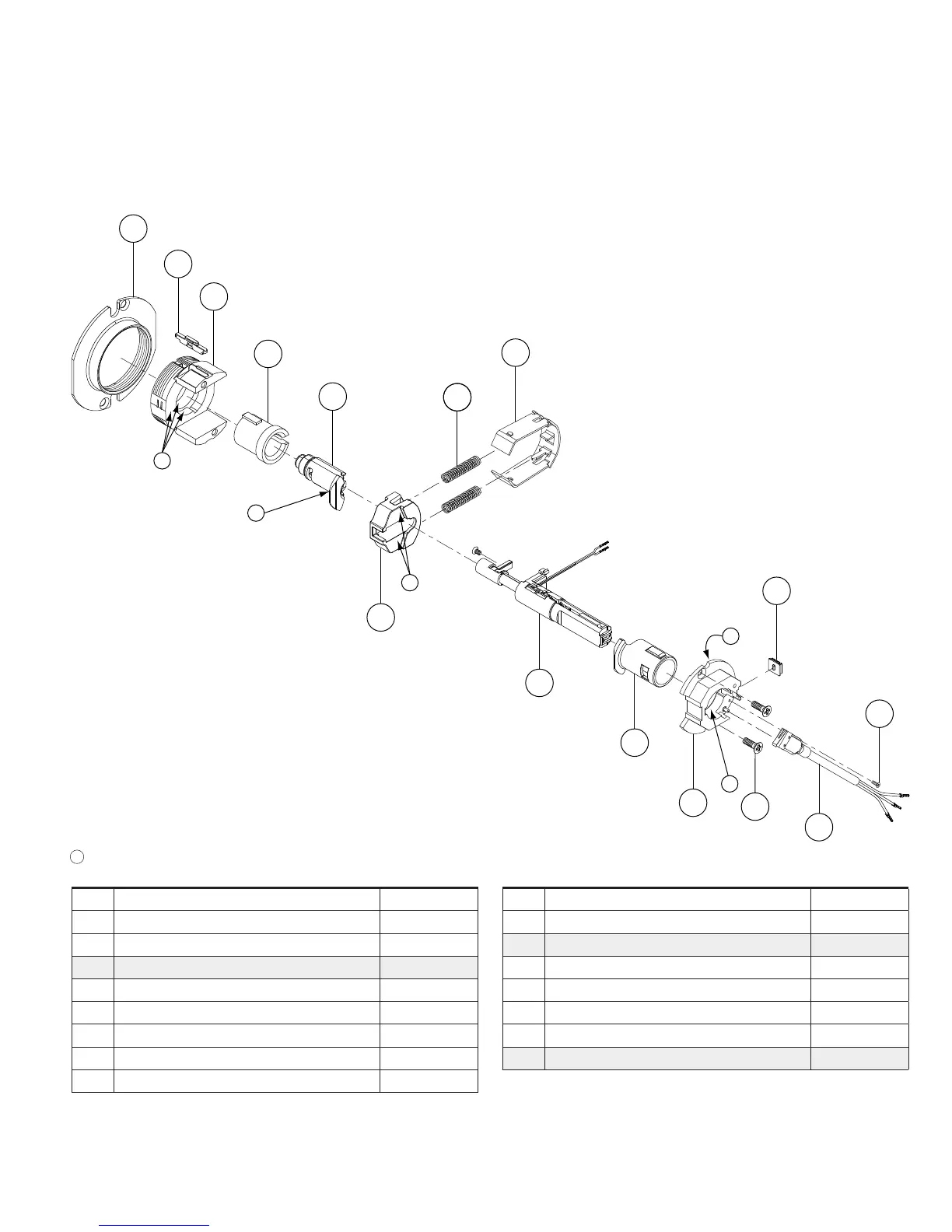

Exit lock— Electrically locked (fail safe) or electrically unlocked (fail secure)
with request-to-exit
ND12EL RX or ND12EU RX
27
48
49
53
a
a
37
26
1
28
15
30
39
29
a
a
a
52
54
6
a
Apply light film of 100% synthetic grease on surfaces with brush.
No. Description Part number
1 Slide spring C503-019
6 Chassis screw L583-454
15 Electrified keycam assembly N223-066 
26 Outside electrified housing 24088551
27 Inside hub, electrified and RX 24085078
28 Outside electrifed spindle N523-019
29 Slide N523-149
30 Slide clip N523-025
No. Description Part number
37 Adjustment plate N523-054
39 Inside spindle electrified N523-177 
48 RX harness N523-194**
49 RX harness screw N523-135
52 Gauge insert 23988066
53 Insert, inside hub N523-160*
54 Electrified motor assembly N223-062**
* Not sold separately as a part.
** For RX details, see Request-to-exit feature on page 106. For electrified lock details, see Electrified locks on page 105.
 Designates new parts or assemblies.
