Schlage ND85 - Electrically Locked Storeroom Lock Chassis (ND80 EL;EU)

Chassis
Schlage • ND-Series service manual • 37

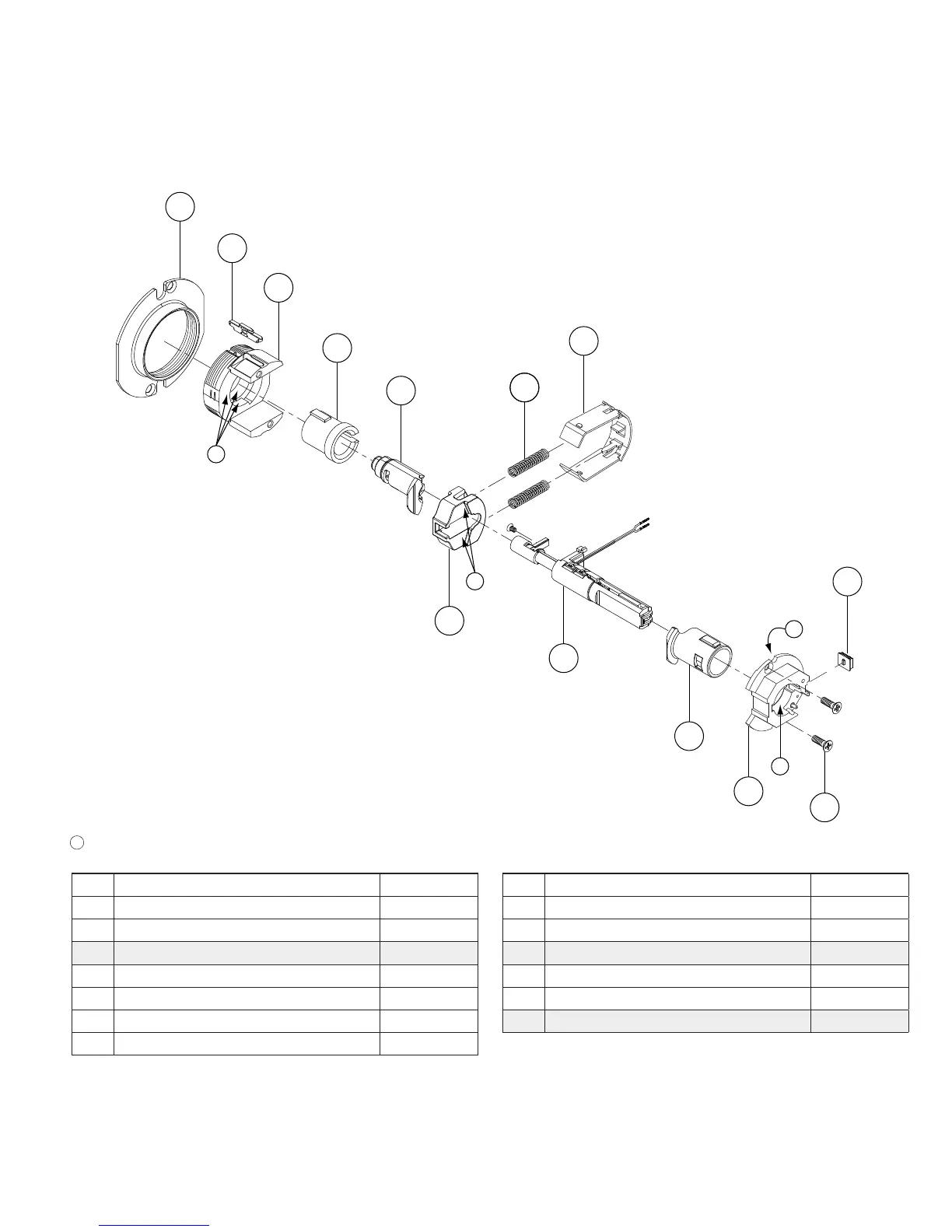

Storeroom lock— Electrically locked (fail safe) or electrically locked (fail safe)
ND80EL or ND80EU
37
1
28
15
54
30
27
39
29
a
a
a
26
a
52
53
6
a
Apply light film of 100% synthetic grease on surfaces with brush.
No. Description Part number
1 Slide spring C503-019
6 Chassis screw L583-454
15 Electrified keycam assembly N223-066 
26 Outside electrified housing 24088551
27 Inside hub, electrified and RX 24085078
28 Outside electrified spindle N523-019
29 Slide N523-149
No. Description Part number
30 Slide clip N523-025
37 Adjustment plate N523-054
39 Inside spindle N523-177 
52 Gauge insert 23988066
53 Insert, inside hub N523-160*
54 Electrified motor assembly N223-062**
* Not sold separately as a part.
** For electrified lock details, see Electrified locks on page 105.
 Designates new parts or assemblies.
