Trim assemblies
Schlage • ND-Series service manual • 55

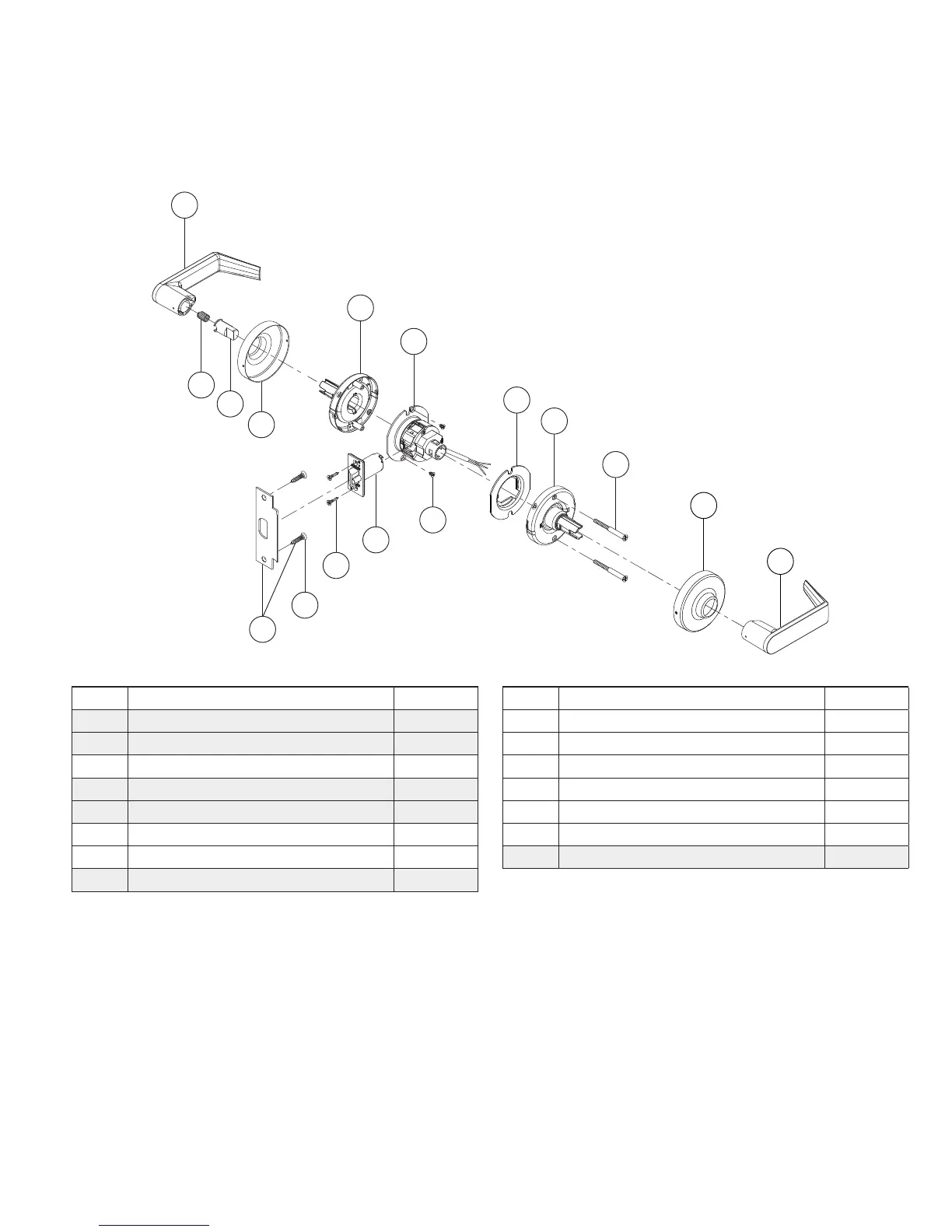

Exit lock with request-to-exit
ND12 RX**
A
C
P
E
J
H
D
K
N
Q
M
CC
DD
B
C
GG
Letter Description Part number
A Outside lever—closed 03-230 
B Inside lever—closed 03-230 
C Rose 03-042
D Outside spring cage assembly—standard N523-218 
E Inside spring cage assembly—standard N523-221 
H Chassis 24088437*
J Anti-rotation plate N523-131
K Deadlatch 13-247 
Letter Description Part number
M Strike assembly 10-025
N Latch screws C603-897
P Mounting screws N523-021
Q Strike screws C603-256
CC Spring, plunger C503-331
DD Catch stop N523-041
GG Adjustment plate screws N523-240 
* Chassis part number is for reference only.
** For RX details, see Request-to-exit feature on page 106.
 Designates new parts or assemblies.
