62 • Schlage • ND-Series service manual

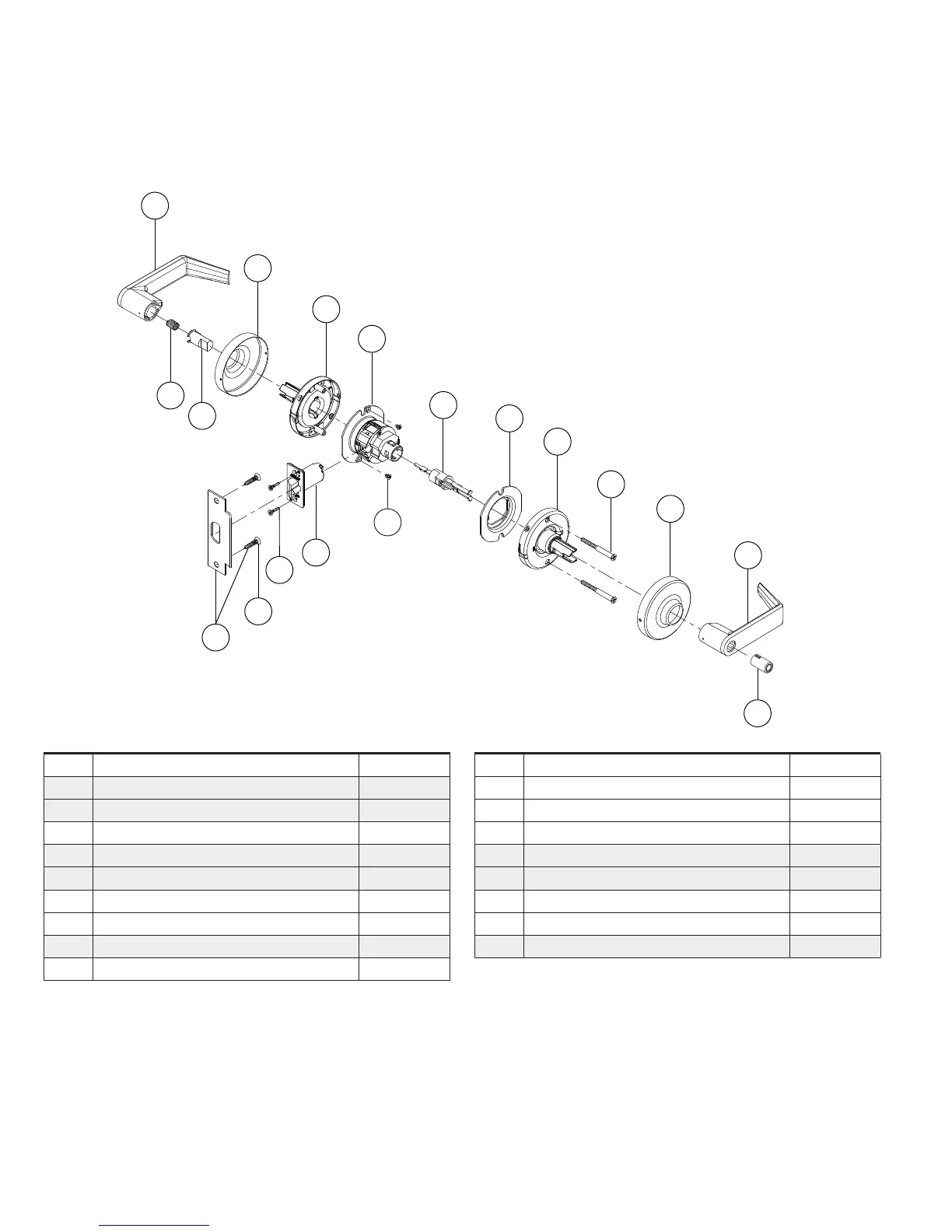

Trim assemblies
Special—patio lock
ND30
A
C
D
H
J
E
P
C
R
M
K
B
Q
N
CC
DD
V
GG
Letter Description Part number
A Outside lever—closed 03-230 
B Inside lever—open (button) 03-233 
C Rose 03-042
D Outside spring cage assembly—standard N523-218 
E Inside spring cage assembly—standard N523-221 
H Chassis 24088304*
J Anti-rotation plate N523-055
K Deadlatch 13-247 
M Strike assembly 10-025
Letter Description Part number
N Latch screws C603-897
P Mounting screws N523-021
Q Strike screws C603-256
R Plunger assembly—push button N123-086 
V Push button N523-209 
CC Spring, plunger C503-331
DD Catch stop N523-041
GG Adjustment plate screws N523-240 
* Chassis part number is for reference only.
 Designates new parts or assemblies.
