74 • Schlage • ND-Series service manual
Trim assemblies

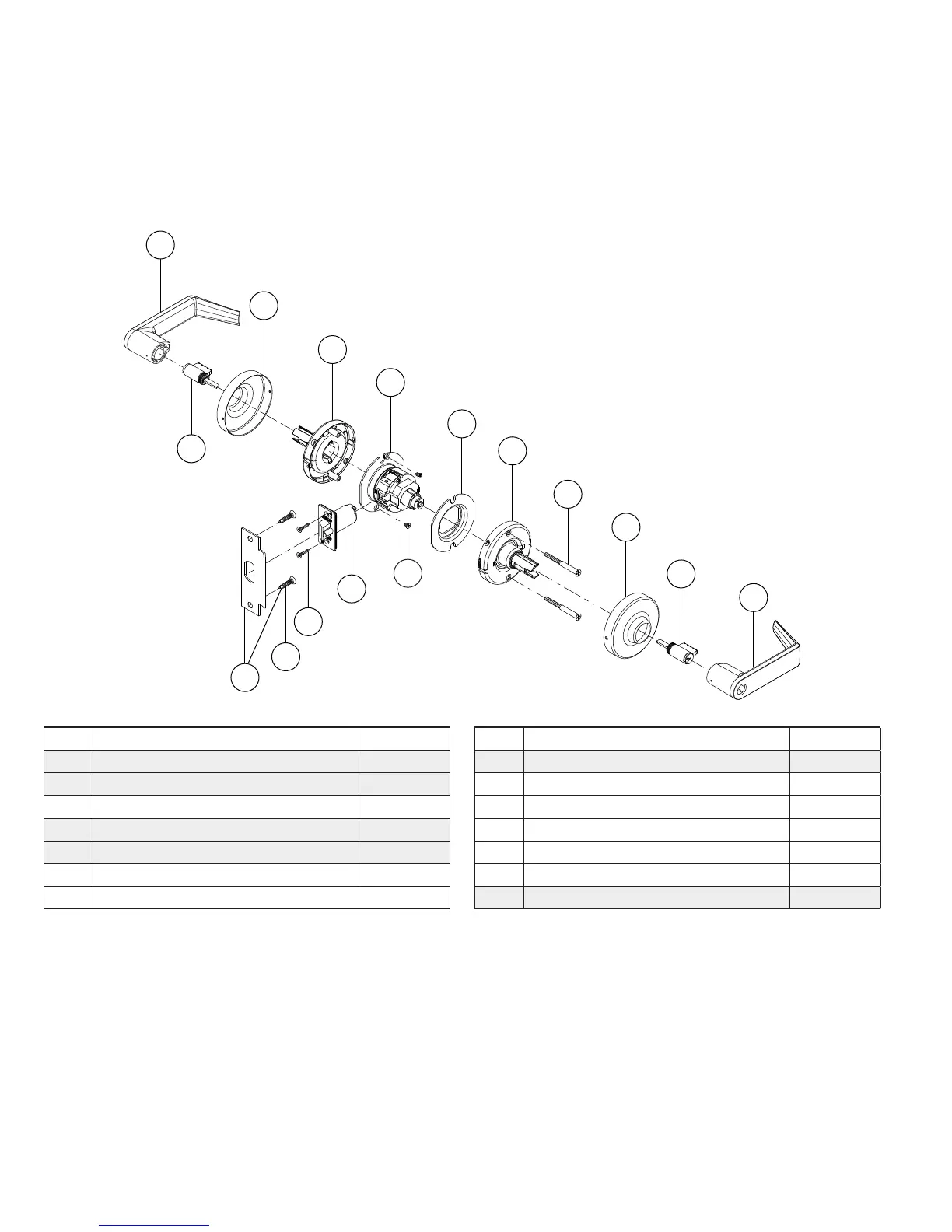

Special—communicating lock with Vandlgard
®
ND72 Vandlgard
®
ND72PD Vandlgard
®
(shown), ND72RD Vandlgard
®
*, ND72GD Vandlgard
®
*
A
C
H
J
E
P
C
S
M
K
B
Q
N
S
D
GG
Letter Description Part number
A Outside lever—open (cylinder) 03-231
B Inside lever—open (cylinder) 03-231
C Rose 03-042
D Outside spring cage—standard N523-218
E Inside spring cage—keyed inside except SFIC N523-222
H Chassis 24088205*
J Anti-rotation plate N523-055
Letter Description Part number
K Deadlatch 13-247
M Strike assembly 10-025
N Latch screw C603-897
P Mounting screw N523-021
Q Strike screw C603-256
S Cylinder—6-pin 23-065
GG Adjustment plate screws N523-240
√ For RD (Full Size Interchangeable Core) and GD (SFIC) inside trim configurations, see page 98.
* Chassis part number is for reference only.
Designates new parts or assemblies.
