76 • Schlage • ND-Series service manual

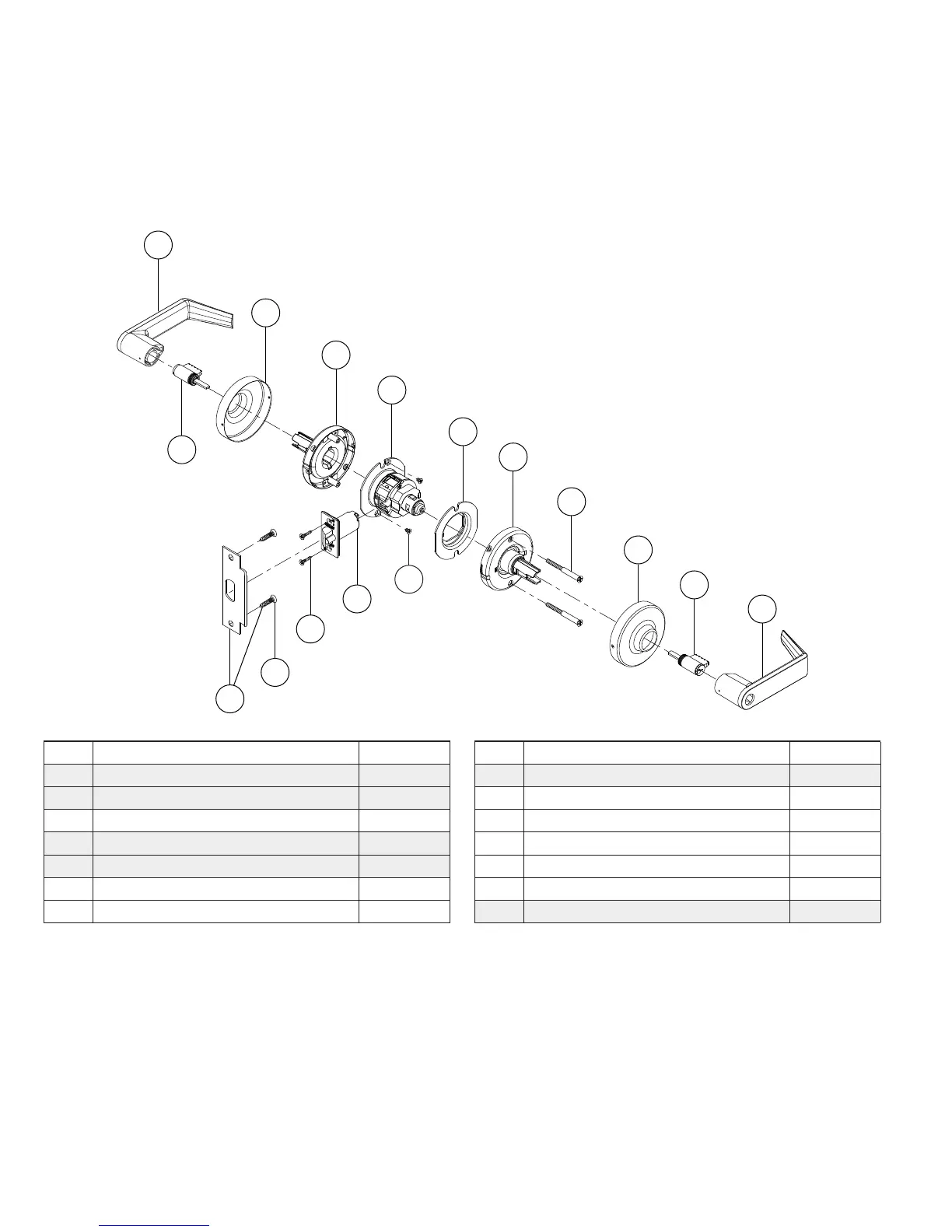

Trim assemblies
Classroom security lock
ND75
ND75PD (shown), ND75RD √, ND75GD √
A
B
S
C
P
E
H
D
K
N
Q
M
S
J
C
GG
Letter Description Part number
A Outside lever—open (cylinder) 03-231 
B Inside lever—open (cylinder) 03-231 
C Rose 03-042
D Outside spring cage—standard N523-218 
E Inside spring cage—keyed inside except SFIC N523-222 
H Chassis 24088163*
J Anti-rotation plate N523-055
Letter Description Part number
K Deadlatch 13-247 
M Strike assembly 10-025
N Latch screw C603-897
P Mounting screw N523-021
Q Strike screw C603-256
S Cylinder—6-pin 23-065
GG Adjustment plate screws N523-240 
√ For RD (Full Size Interchangeable Core) and GD (SFIC) inside trim configurations, see page 98.
* Chassis part number is for reference only.
 Designates new parts or assemblies.
