78 • Schlage • ND-Series service manual

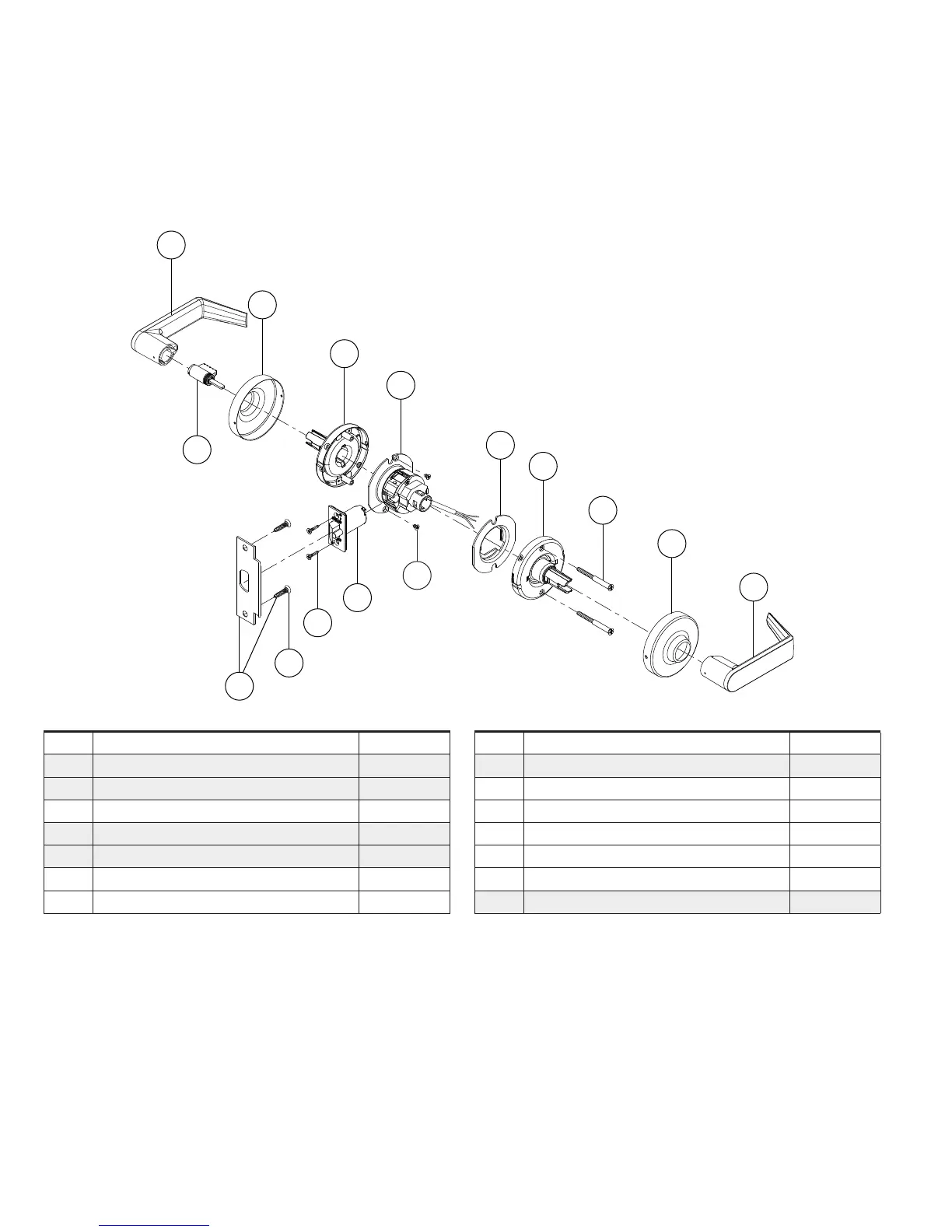

Trim assemblies
Storeroom lock with request-to-exit
ND80 RX**
ND80PD RX (shown), ND80RD RX √, ND80GD RX √
M
K
N
Q
S
C
P
J
H
D
C
A
E
B
GG
Letter Description Part number
A Outside lever—open (cylinder) 03-231 
B Inside lever—closed 03-230 
C Rose 03-042
D Outside spring cage—standard N523-218 
E Inside spring cage—standard N123-221 
H Chassis 24088437*
J Anti-rotation plate N523-131
Letter Description Part number
K Deadlatch 13-247 
M Strike assembly 10-025
N Latch screw C603-897
P Mounting screw N523-021
Q Strike screw C603-256
S Cylinder—6-pin 23-065
GG Adjustment plate N523-240 
√ For RD (Full Size Interchangeable Core) and GD (SFIC) inside trim configurations, see page 98.
* Chassis part number is for reference only.
** For RX details, see Request-to-exit feature on page 106.
 Designates new parts or assemblies.
