88 • Schlage • ND-Series service manual

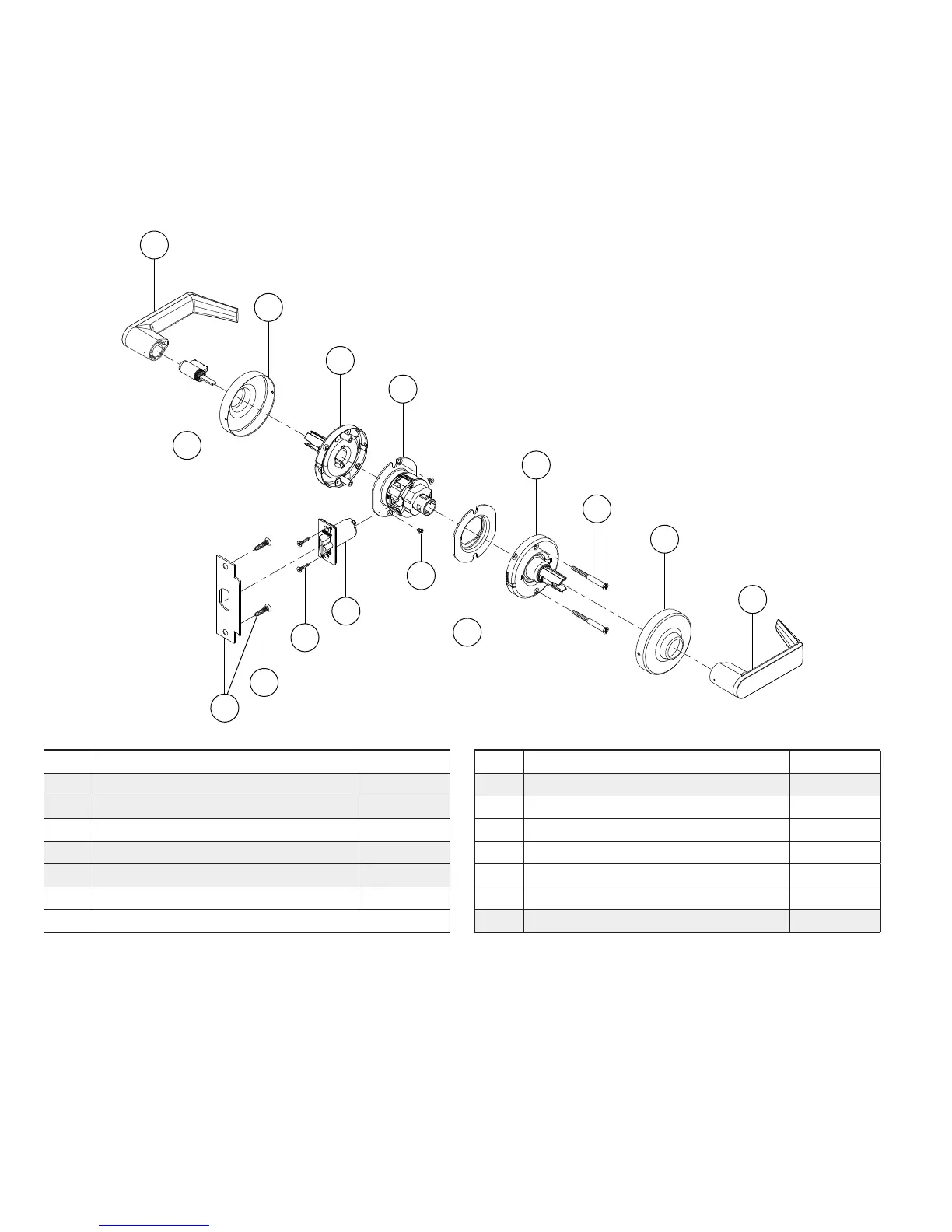

Trim assemblies
Storeroom lock with Vandlgard
®
ND96
ND96PD (shown), ND96RD √, ND96GD √
A
B
E
H
D
C
K
N
Q
M
S
P
C
J
GG
Letter Description Part number
A Outside lever—open (cylinder) 03-231
B Inside lever—closed 03-230
C Rose 03-042
D Outside spring cage—standard N523-218
E Inside spring cage—standard N523-221
H Chassis 24088403*
J Anti-rotation plate N523-055
Letter Description Part number
K Deadlatch 13-247
M Strike assembly 10-025
N Latch screw C603-897
P Mounting screw N523-021
Q Strike screw C603-256
S Cylinder—6-pin 23-065
GG Adjustment plate screws N523-240
√ For RD (Full Size Interchangeable Core) and GD (SFIC) outside trim configurations, see page 98.
* Chassis part number is for reference only.
Designates new parts or assemblies.
