Trim assemblies
Schlage • ND-Series service manual • 91

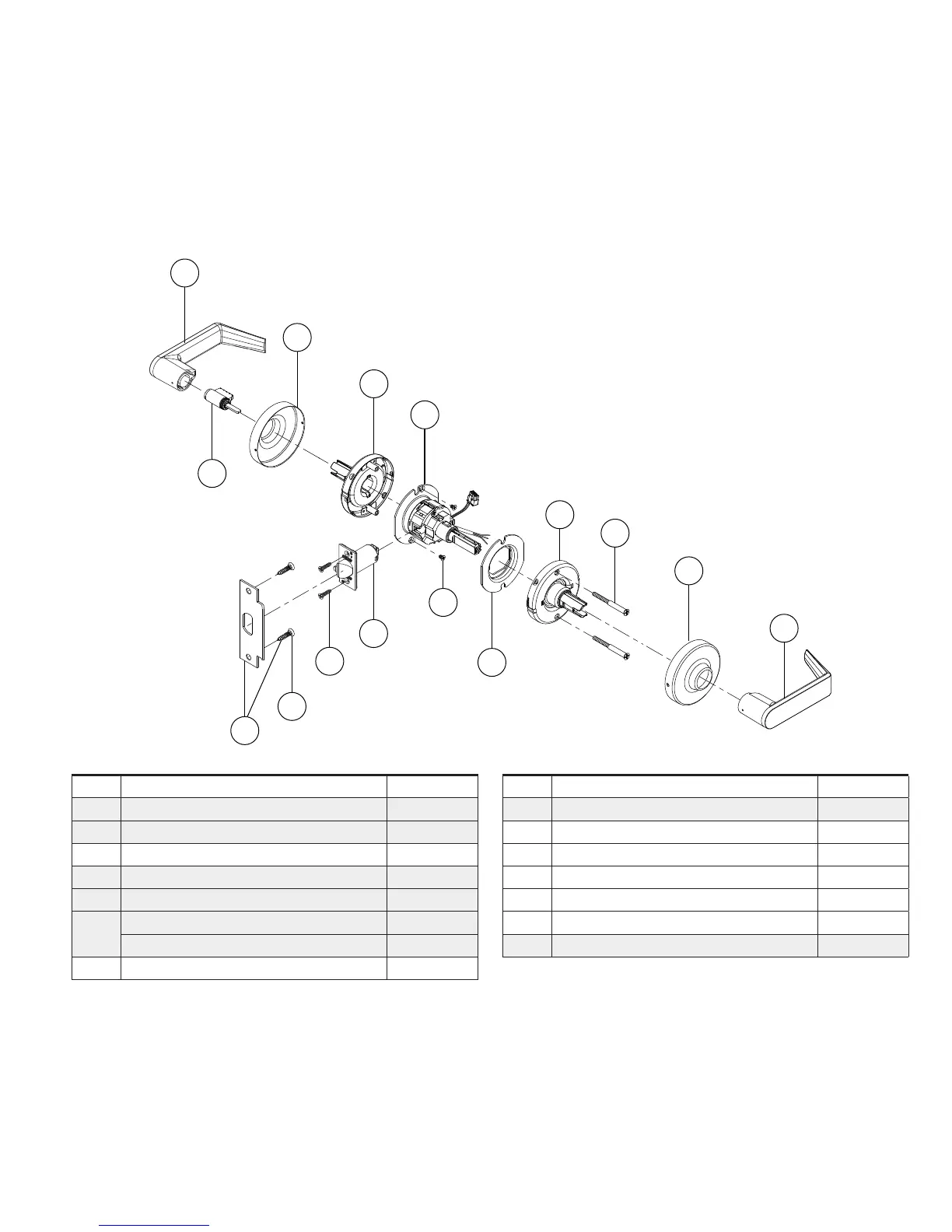

Storeroom lock with Vandlgard
®
—electrically locked (fail secure) or
electrically unlocked (fail secure) with request-to-exit
ND96EL RX or ND96EU RX**
ND96EL/EUPD RX (shown), ND96EL/EURD RX √, ND96EL/EUGD RX √
A
B
E
H
D
C
K
N
Q
M
S
P
C
J
GG
Letter Description Part number
A Outside lever—open (cylinder) 03-231
B Inside lever—closed 03-230
C Rose 03-042
D Outside spring cage—standard N523-218
E Inside spring cage—standard N523-221
H Chassis, electrically locked 63-186*
Chassis, electrically unlocked 63-187*
J Anti-rotation plate N523-131
Letter Description Part number
K Deadlatch 13-247
M Strike assembly 10-025
N Latch screw C603-897
P Mounting screw N523-021
Q Strike screw C603-256
S Cylinder—6-pin 23-065
GG Adjustment plate screws N523-240
√ For RD (Full Size Interchangeable Core) and GD (SFIC) outside trim configurations, see page 98.
* Chassis part number is for reference only.
** For electrified lock details, see Electrified locks on page 105. For RX details, see Request-to-exit feature on page 106.
Designates new parts or assemblies.
