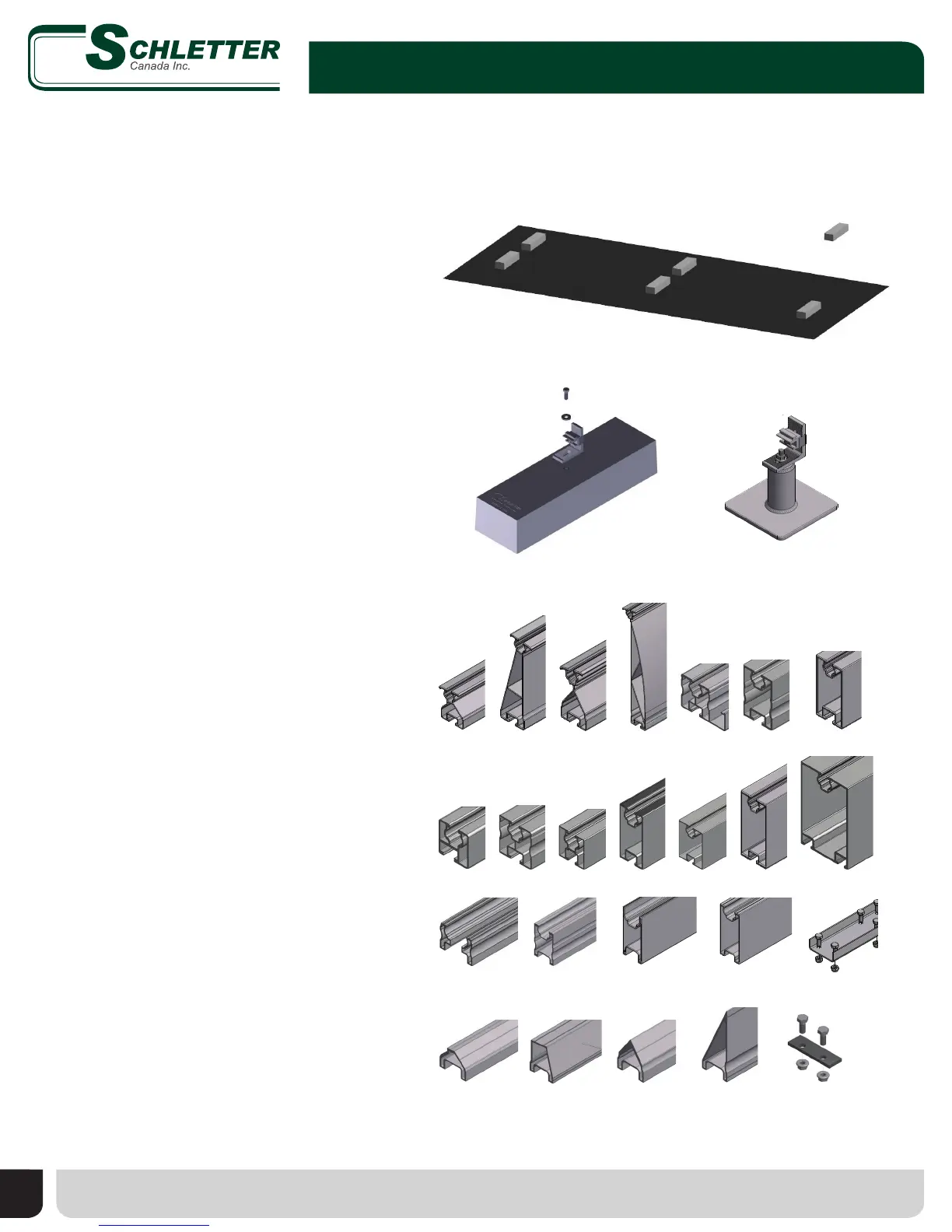

Mounting the Individual Assembly Groups
1. Position Ballast Blocks/Rail Supports
2. L-Foot Connection
• Protective roof pad recommended, but
not included as standard
system component.
8
• Ballast blocks/support (169015-001)
should be placed according to project
ballast map which consists of ve zones:
yellow, blue, red, green, and white (yellow
requiring the highest ballast, white
the least).
• Connect pre-assembled Rapid
2+
Angle
with KlickTop (119026-002) to threaded
insert on top of ballast block using
included hex head screw and washer.
• Repeat step for all ballast blocks/
rail supports.
SIDE VIEW
SCALE 1 : 1.5
TOP VIEW
SCALE 1 : 1.5
ASSEMBLY VIEW
SCALE 1 : 1
PARTS LIST
MASSMATERIALDESCRIPTIONPART NUMBERQTYITEM
0.714 kgWelded Aluminum-6061
Rail Support, Fix-EZ, 4", Weldment
169015-00211
0.183 kg Angle, Rapid2+, Slots 8.5x30, 11x30mm, Assembly, A119026-00212
0.015 kg
316 SSNut, Flange, Serrated, M10, DIN 6923, 316 SS
943912-01013
1
1
2
2
3
3
4
4
A A
B B
C C
D D
MATERIAL:
DATEBY
SHEET: OF
TOLERANCES:
REVISION
#
WEIGHT:
AREA:
PART NUMBER:
CROWN:
TITLE / PROJECT / CUSTOMER:
RT PART #:
SIZE:
SCALE: AS SHOWN
SUBCONTRACTOR:
ENG APPROVAL DATE:
ASSEMBLY NUMBER
CUSTOMER:
MFG APPROVAL DATE:
CREATION DATE:
CHECKED DATE:
DRAWN BY:
APPROVED:
STATUS:
CHECKED:
MFG:
DIN-2768-vk
Dillon.Hurley
WorkInProgress
4/22/2013
169015-003
Rail Support, Fix-EZ, Kit, with Rapid Angle
C
169015-003
1 1
OLD PART # :
WT/FT:
0.913 kg
(7.95)
176.6
(152.4)
(152.4)
(102 [4 in])
1
3
2
8
Due to the variety of roong material, protective padding composition will vary based on substrate compatibility. Consult certied roong contractor for best practices.
Attach L-foot connection and secure using 3/8”
bolt and washer
Rail support and Rapid
2+
Angle
assembly (169015-003)
3. Rail/Splice Options for Fix-EZ Application
• FixZ series
Top channel: M8
Bottom channel: M10
• Eco05, Solo05, Pro05, ProPlus05,
ProPlus XT
Top channel: M8
Bottom channel: M10
• DN rail series
Top channel: M10
Bottom channel: M10
Eco05 Solo05
