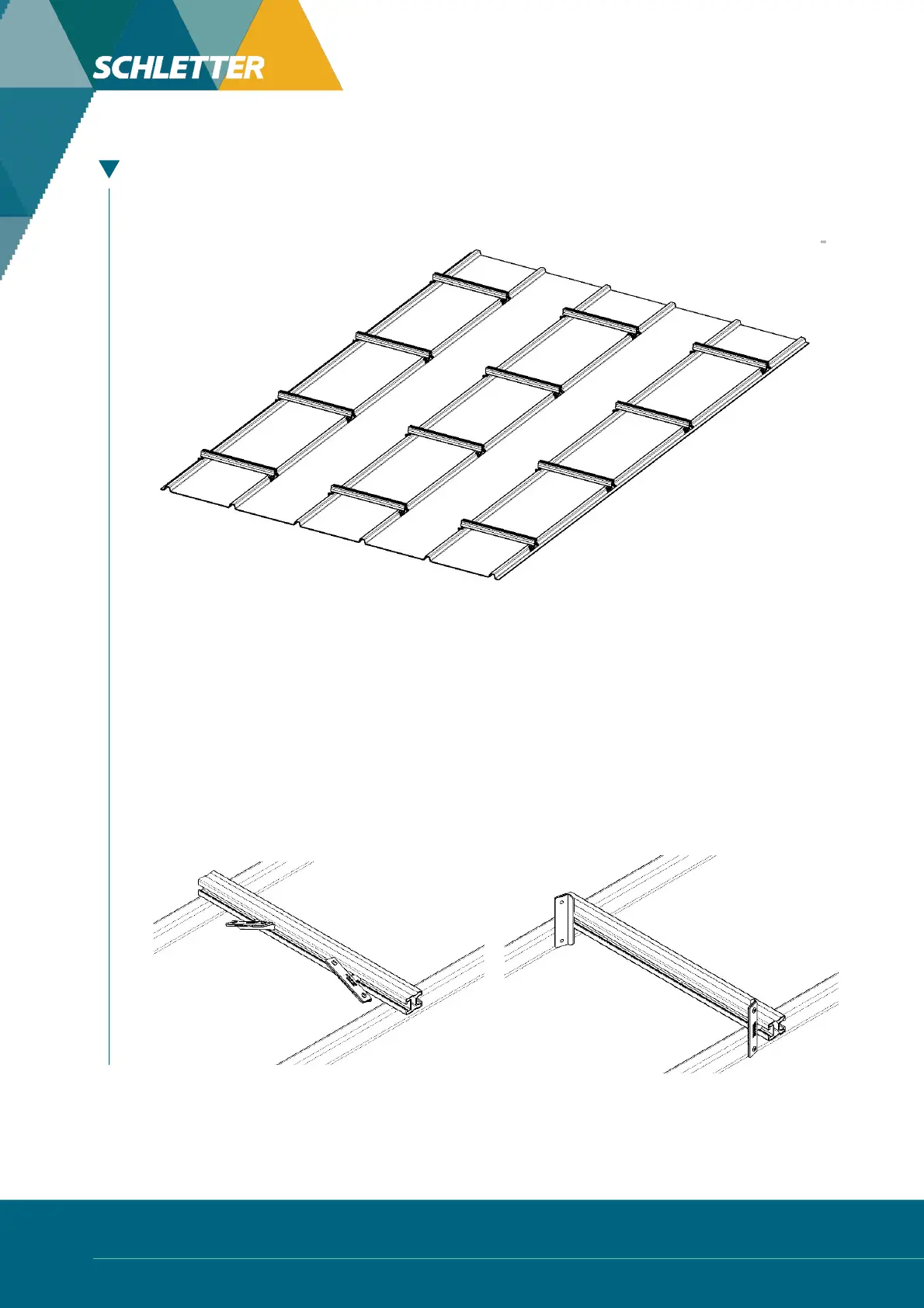

2. DEFINE FIXING POINTS
n The fixing points must be chosen in such a way that the modules later rest in the required
positions so they can be fixed with end and centre clamps.
3. ASSEMBLE MOUNTING KITS
n Screw 2 SingleFix-V components each into the lower screw channel of the profile piece.
n Arrange together over 2 high beads.
n Press the SingleFix-V components sideways onto the high beads and screw tight with 2
self-drilling screws.
n Place the screws slightly inclined downwards* and slightly inclined outwards**!
