PROLINE SINGLEFIX-V MOUNTING KIT | V1 | INSTALLATION GUIDE | 202102 7
SCHLETTER SOLAR GMBH | SUBJECT TO CHANGES
5. MOUNTING THE MODULE

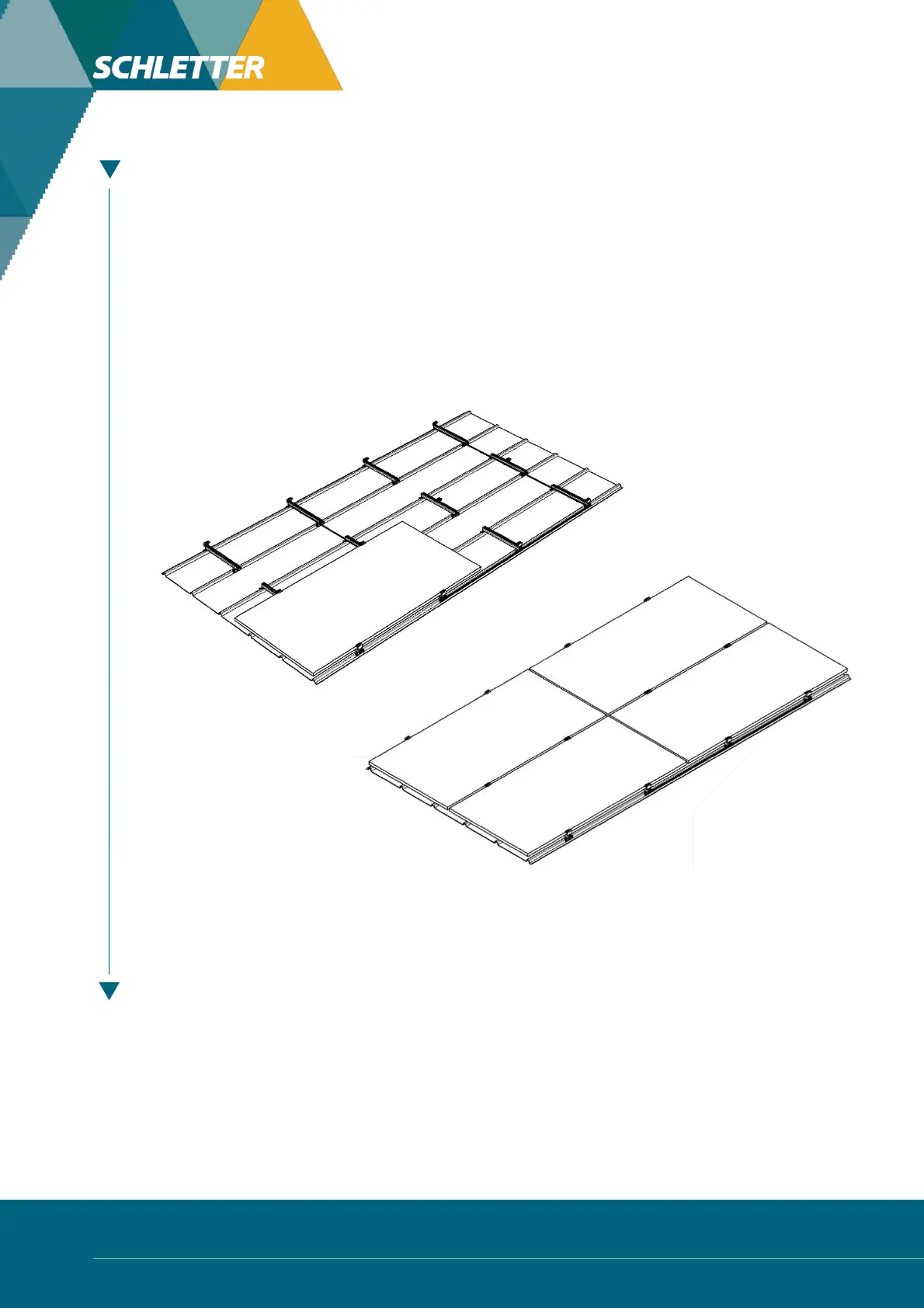

n Place the first module on the profile ends.
n Fix the module with 2 end clamps.
In our example: Click in ProLine end clamps and tighten the screws (TX-drive T40).
n Connect module cables accordingly.
n Put on additional modules and fix between the modules with 2 centre clamps each.
n Tightly screw the last module of a row with 2 end clamps.
Further information regarding our systems is available on our website:
www.schletter-group.com under Downloads in the solar section.
