ElectricPress 343-345 – V2.1 19

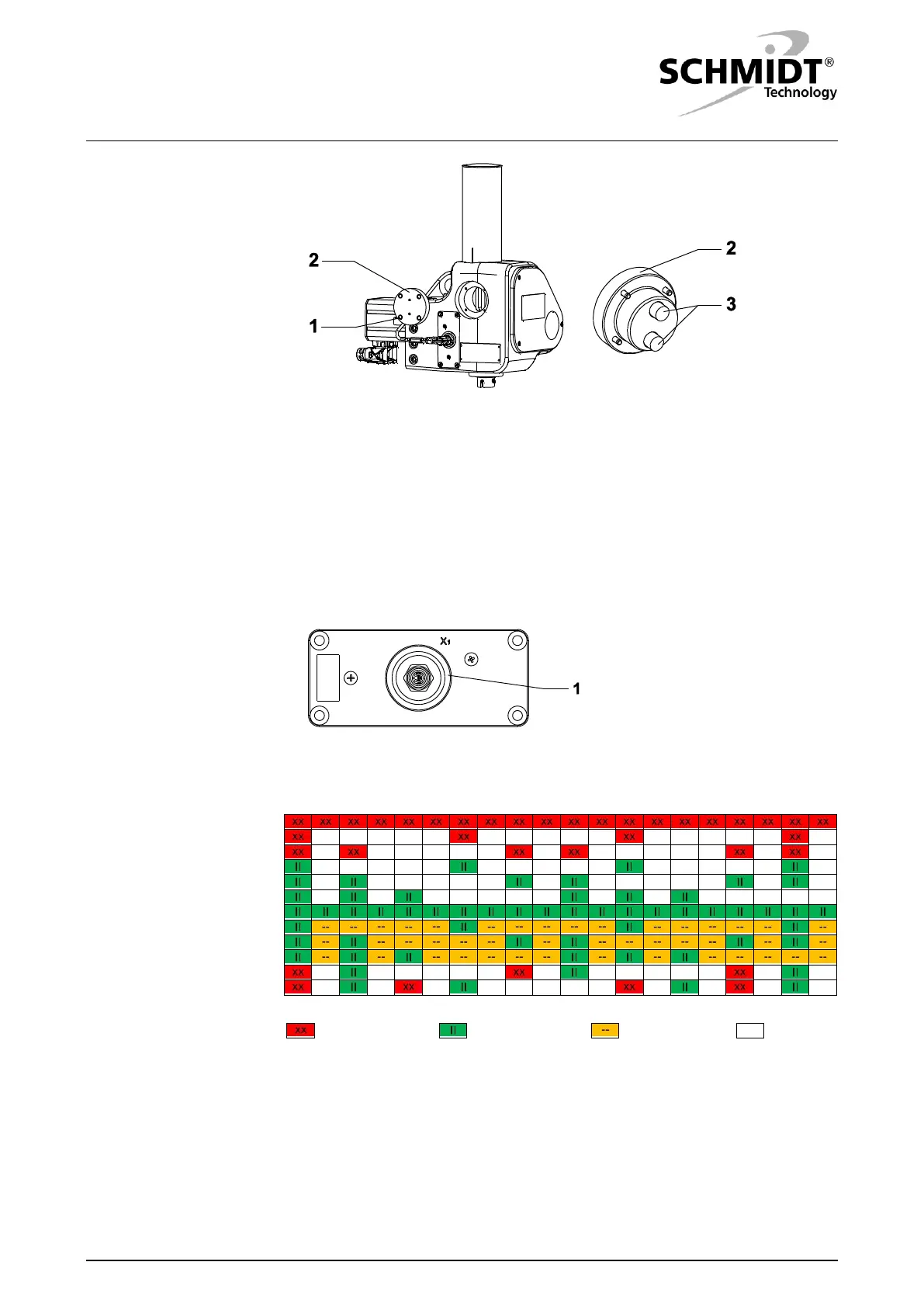

Figure 11: Replacing the mechanical stop (example)
1
Socket head screws
2
Distortion lock
3
Upper and lower stop pin
4.6 Troubleshooting
Fundamental functions are automatically monitored by the press. A flashing
signal on the ring-shaped status display of the process data acquisition
indicates the various operating states.
Figure 12: Status display (example)
1
Status display "X1"
24 V DC / EtherCAT inactive
INIT / No LINK
INIT / LINK OK & No ACT
INIT / LINK OK & ACT OK
Pre-Operational
Safe-Operational
Press ready
Process data acquisition
RangeCalc
Press not referenced
FW-Update (Bootloader active)
FW-Update (FoE in FW active)
= red
= green
= orange
= off
Figure 13: Flashing signals X1
4.7 Customer service
Contact the SCHMIDT Technology Customer Service department when you
encounter difficulties with the press system or the software.
For prompt processing, keep the material no. and serial no. of the
components of the press system at hand. This data can be found on the type
plate of the
