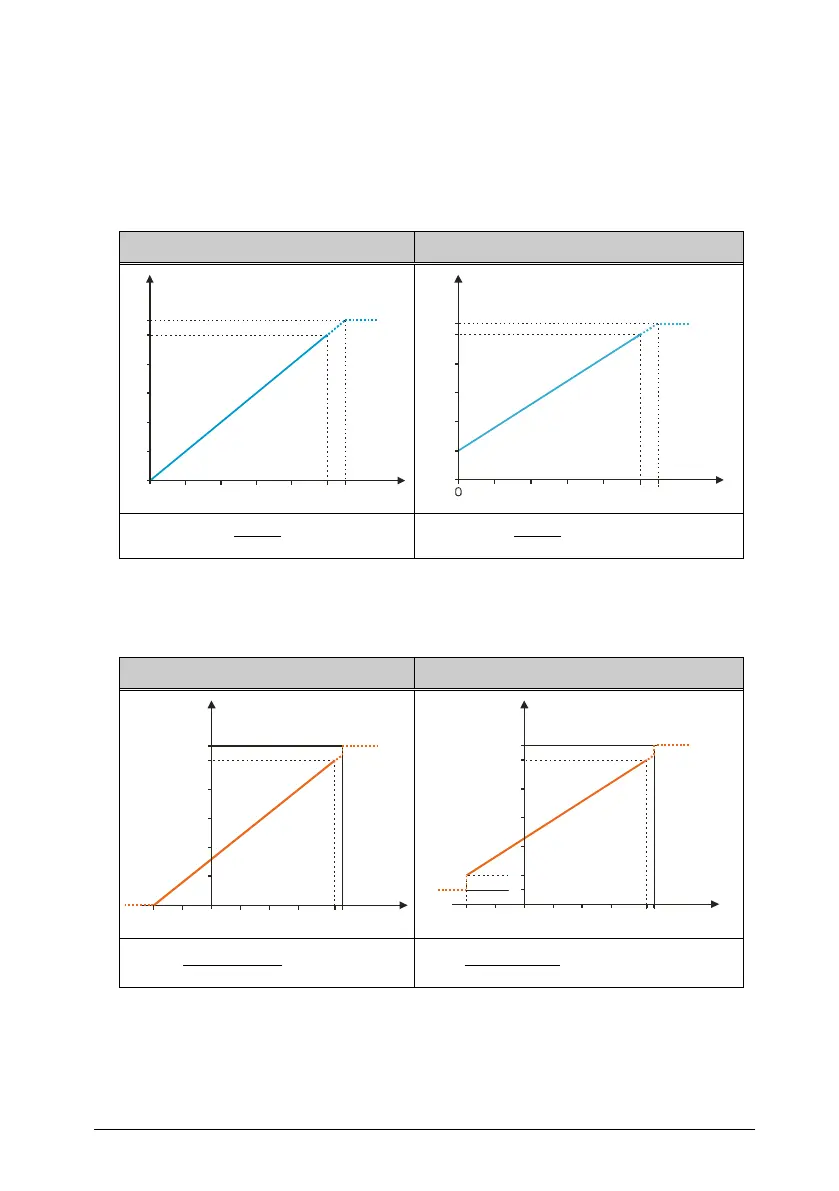

Representation of measuring range
The measuring range of the corresponding measuring value is mapped
in a linear way to the mode-specific signaling range of the associated
analog output.
For flow velocity measurement, it ranges from zero up to the selectable
end of the measuring range w
N,max
(see Table 7).
Table 7 Representation specification for flow velocity measurement
The measuring range of the medium temperature starts at the selected
measuring range T
Min
and ends at 120 °C (see Table 8).
