Installation and Adjustment Guidelines
5.4. Preparing for Installation
5.4.1 Required tools and equipment
• Oil stone
• Lubricant
• Torque wrench
• Fastening screws
• White spirit or rubbing alcohol
5.4.2 Preparing the locating surfaces
• Check locating surfaces of the machine bed and mounting plate for shape and
position accuracy.
• Clean all locating surfaces thoroughly. Remove ridges and surface irregularities
with an oil stone.
• Use white spirit or rubbing alcohol to clean the locating and supporting surfaces
of guideways. Do not use paint thinner!
• Clean dirty guideways with a soft, lint-free cloth. Do not use compressed air!
• Lightly oil the locating surfaces on the guideways and carriages.

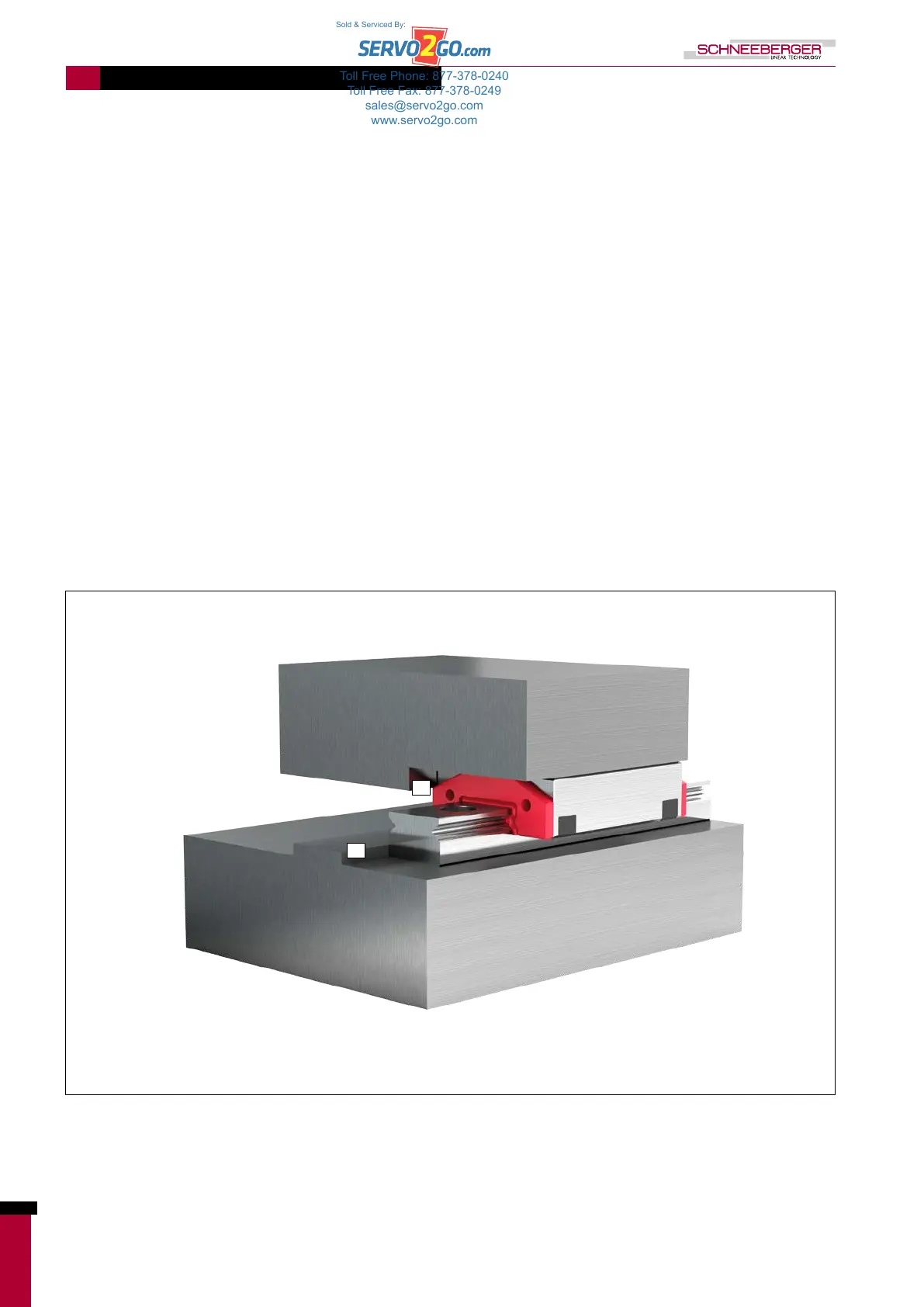

Locating surfaces
A Reference on the mounting plate for the carriage
B Reference on the machine bed for the guideway (both sides of the guideway can be used as locating surfaces)
