8
5
Installation and Adjustment Guidelines

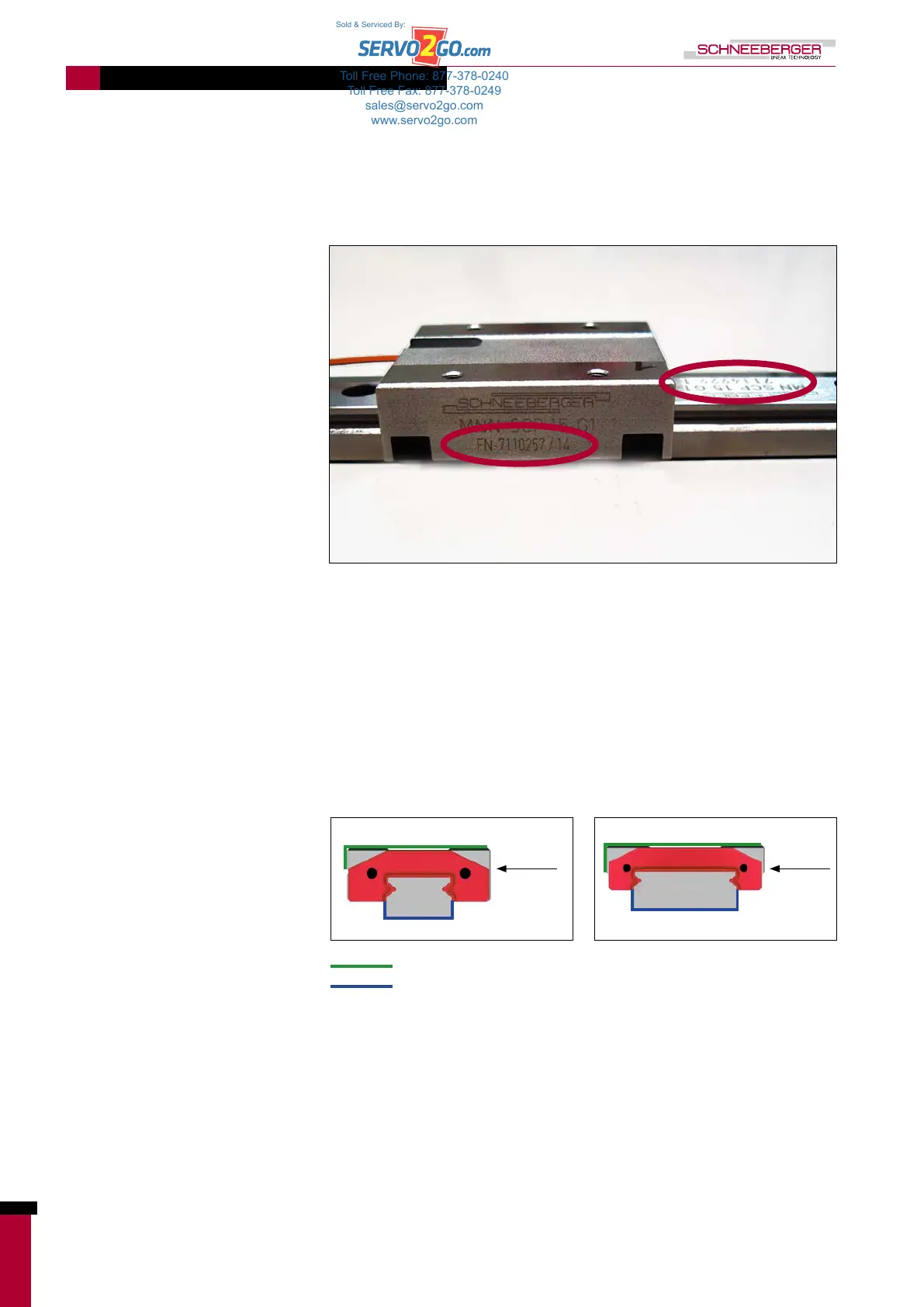

5.1. Serial Number on Guideway and Carriages
Both guideways and carriages are labelled with serial numbers. The serial number
on guideways and carriages is located next to the SCHNEEBERGER logo.
5.2. Locating and Supporting Surfaces
Locating and supporting surfaces on carriages and guideways are designated as
follows.
Standard sizes 7, 9, 12 and 15 Wide sizes 14, 18, 24 and 42
Carriage locating and supporting surfaces
Guideway locating and supporting surfaces
The polished locating side of the carriage is opposite the carriage side with the
company logo / type designation.
The guideway can be located on both sides.
Logo side Logo side
