Installation and Adjustment Guidelines
5.4 / 5.5 Installation and Adjustment Guidelines

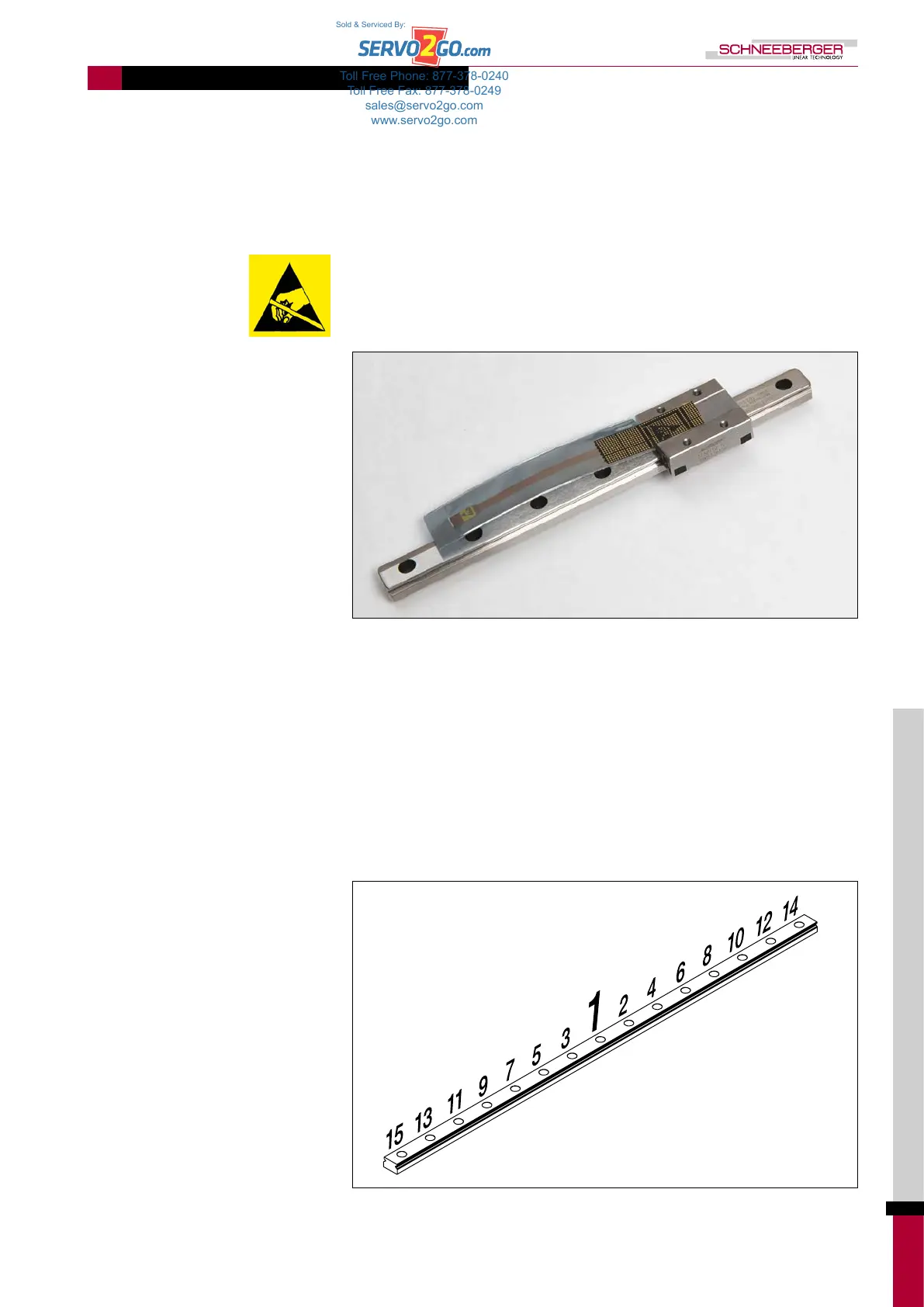

5.5 Installing the Guideway
• Before installation, the guideway, machine bed, mounting plate and fastening
screws must all be at room temperature.
• The MINISCALE PLUS sensor is an electrostatically vulnerable component and
is delivered in ESD-protective packaging. To ensure the sensor remains
protected, the ESD-protective packaging should not be removed during
installation of the MINISCALE PLUS guideway.
• Always tighten the fastening screws with a torque wrench. See chapter 5.6 for
tightening torques.
• Always brace the locating surface of the guideway against the locating surface
of the machine bed. The guideway can be located on both sides, the locating
side of the carriage is opposite the carriage side with the company logo / type
designation.
• Alternate between sides of the guideway, starting at the middle, when
tightening fastening screws.
Fixing MINIRAIL Guideways Correctly
