6.2 Output Signals and Supply
Output Signals and Supply
If the carriage is on the guideway and the LED lights up red despite the flexible
printed circuit board being inserted, the error should be found using the table in
chapter 10 ‚Error Description’.
LED Supply missing Supply connected, normal operation Error condition
red Red LED does not light up Red LED does not light up Red LED lights up red
green Green LED does not light up Green LED lights up green Green LED lights up green
The status of the interface module is shown electronically with the output («ERR
NOT»). ERR NOT is a 5-volt output (TTL level), where a «low - signal» = «pending
error» and a «high - signal» = «no error».
6.2.5. Using the analog interface module with the USB counter 026 or 046
(for technical information, see chapter 12 in the MINI-X product
catalogue).
The USB counters mentioned above allow MINISCALE PLUS to be connected
directly to a computer via USB.
Current consumption:
< 150 mA
Storage temperature of the USB counter:
-30 °C to + 70 °C
Operating temperature of the USB counter:
0° to 45 °C in relative humidity of <75%.
When using the USB counter’s analog input, the interpolator built into the USB
counter reaches a resolution of just 256 (= 28). As a result, the resolution displaya-
ble with the USB counter is limited to 0.39 µm. A speed of 5 m/s is guaranteed,
and the maximum input frequency amounts to 75 kHz (based on one channel, e.g.
the A signal.)
The maximum length for the USB cable is 5 meters. With a USB repeater cable,
the USB connection can be extended up to a maximum of 25 m.
• For operating the USB counter, PC software for demonstrating the functionality
is available.
• A DLL file is available for customers that wish to write their own software
applications.

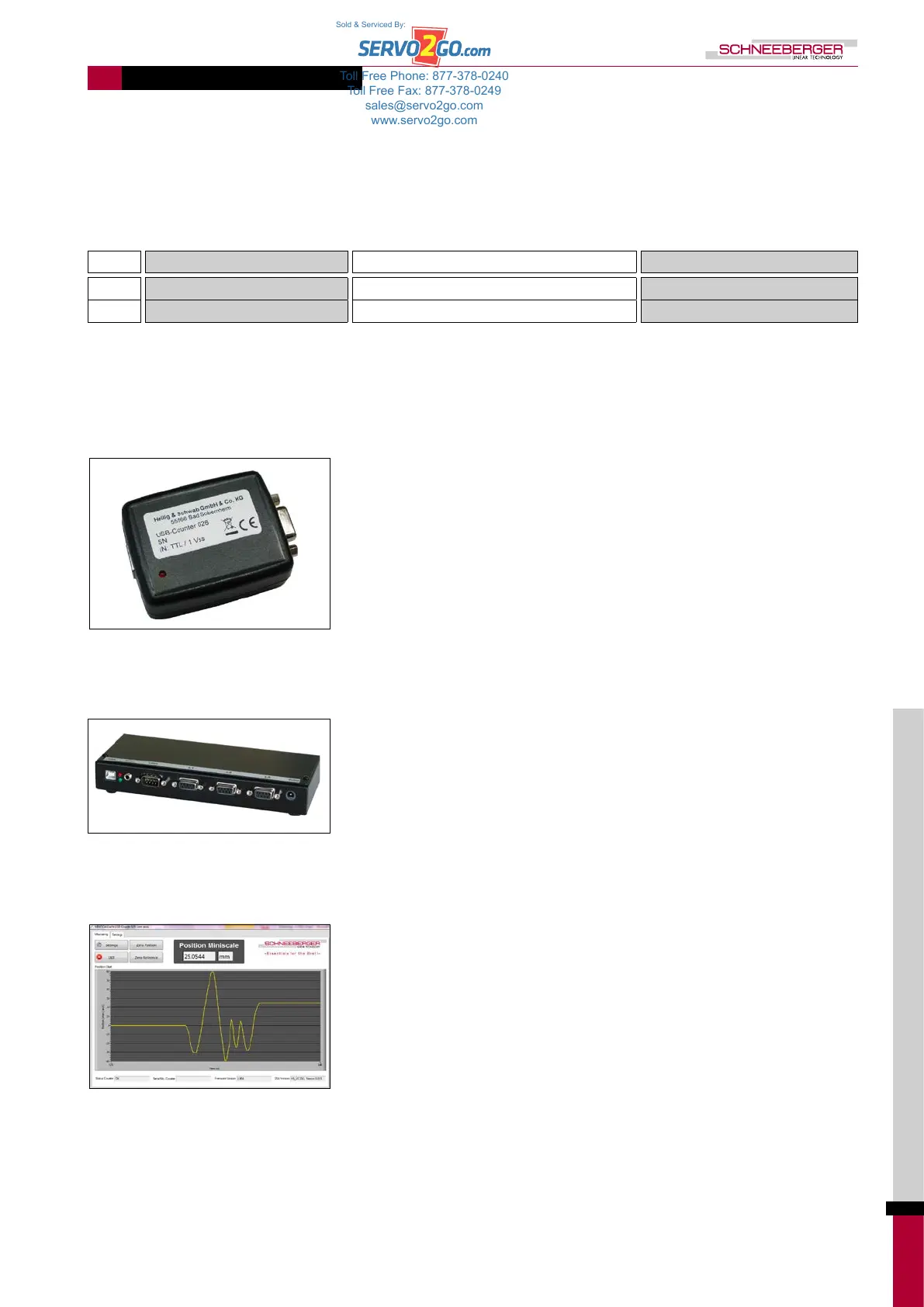

1-axis USB Counter 026
3-axis USB Counter 046
PC software for USB counter 026
