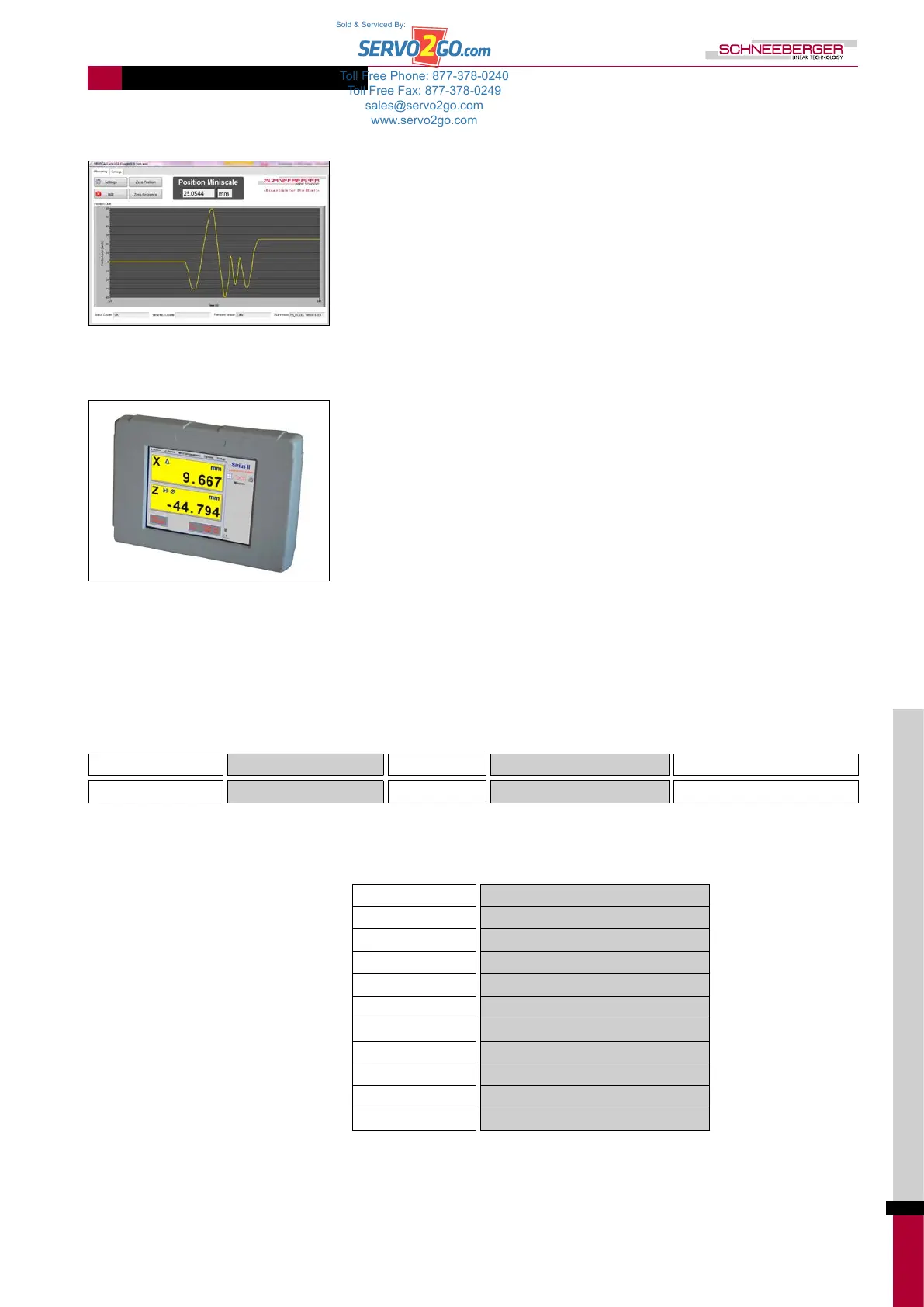

PC software for USB counter 026
• For operating the USB counter, PC software for demonstrating the functionality
is available.
• A DLL file is available for customers that wish to write their own software
applications.
6.3.6 Using the digital interface module with the digital 2-axis SIRIUS II
position indicator (for technical information, see chapter 12 in the
MINI-X product catalogue).
Storage temperature of the position indicator:
-40 °C to + 70 °C
Operating temperature of the position indicator:
0 °C to 45 °C in relative humidity between 15% and 95% without condensation.
Digital signal input to the position indicator must be used in order to make use of
the full resolution of the interface module in the position indicator. This has a
maximum permissible input frequency of 1 MHz (based on one channel, e.g. the A
signal). Consequently, a count rate around 4 times higher occurs during 4-edge
evaluation. This limits the maximum possible travelling speed to 0.4 m/s for a
resolution of 0.1 µm.
SIRIUS llr Interpolation Resolution Input frequency Speed
Digital TTL input (4-edge evaluation) 0.1 μm 1 MHz Max. 0.4 m/s
The configuration menu must be set as follows:
Name x
Reference mode once
Direction positive
Counting direction -
Signal period 100 µm
Interpolation 1000 times
Spacing 0 mm
Start point 0 mm
Base -
Increment 0.0001 mm
Increment 0.0001 inch
2-axis SIRIUS II position indicator
Output Signals and Supply
6.3 Output Signals and Supply
