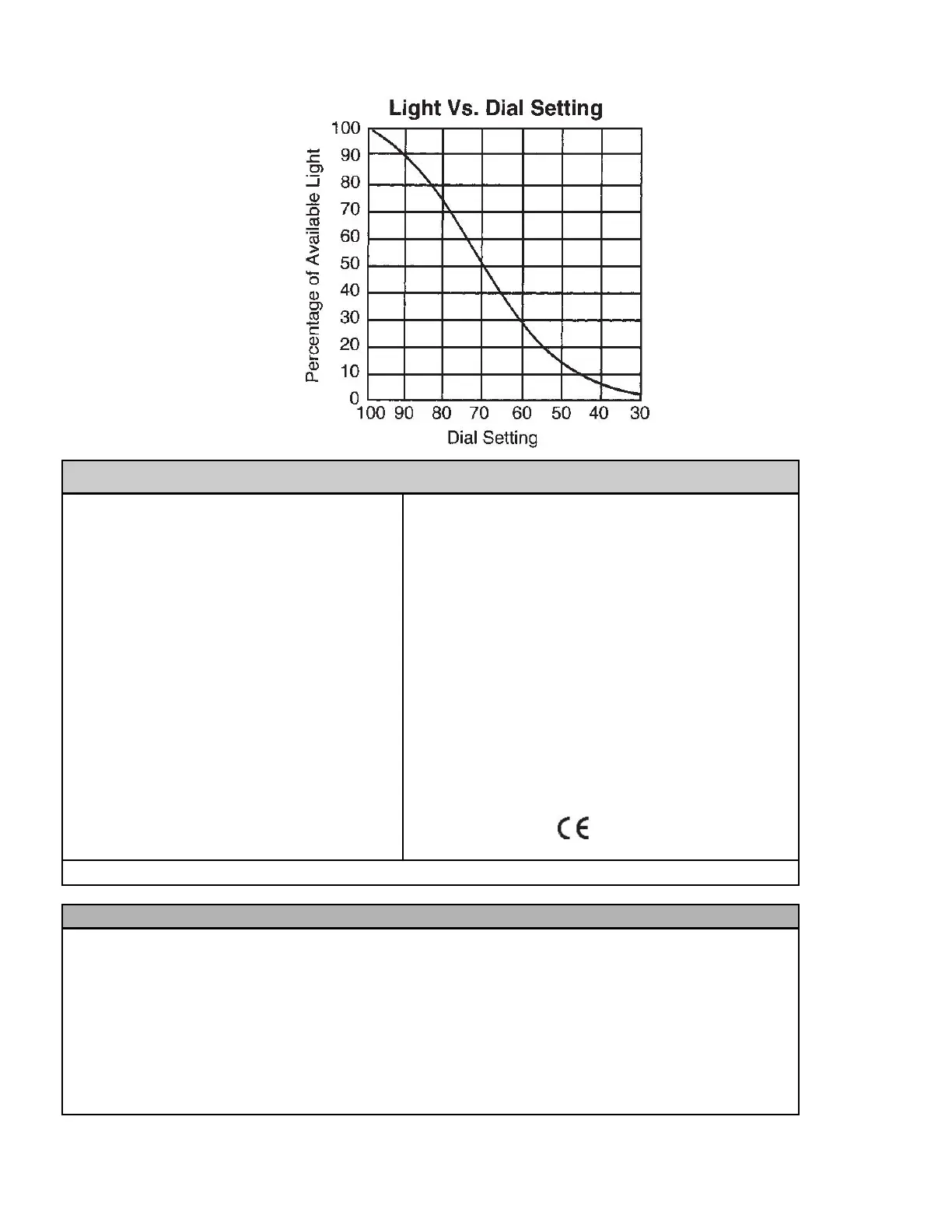

SPECIFICATIONS
PHYSICAL:
Overall dimensions
Height: 4.62" (177 mm)
Width: 7.27" (185 mm)
Depth: 8.61" (219 mm)
Weight: 9 pounds
Fiber Receptacle
.720" diameter (18.3 mm)
Environmental Operating
Temperature Range:
0° to 50°C Relative humidity Range:
0% to 95% non-condensing
ELECTRICAL:
Input Voltage
115VAC/60Hz (Models A20500 & A20520)
230VAC/50Hz (Models A20510 & A20530)
Output
21VAC
Power Consumption
190 Watts (nominal)
Lamp Types –Tungsten Halogen
150 Watt, 21 Volt (EJA, EKE)
150 Watt, 20 Volt (DDL)
CSA to UL-1571,
Improvements may result in specification or feature changes without notice.
PARTS LIST
EJA Lamp A08110 Rheostat Control Knob H09033-100
EKE Lamp A08120 Iris Control Knob H09050-045
DDL Lamp A08130 Fuse (10/pkg) 115 V units A08126
Lamp Socket D08375-070 Fuse (10/pkg) 220 V units A08127
Assembly
Fiber Optic Power Cord H09050-016
Positioning
Screw D08375-063
