LAMP REPLACEMENT
• Turn power off.
• Remove the fiber optic component.
• Allow the lamp to cool.

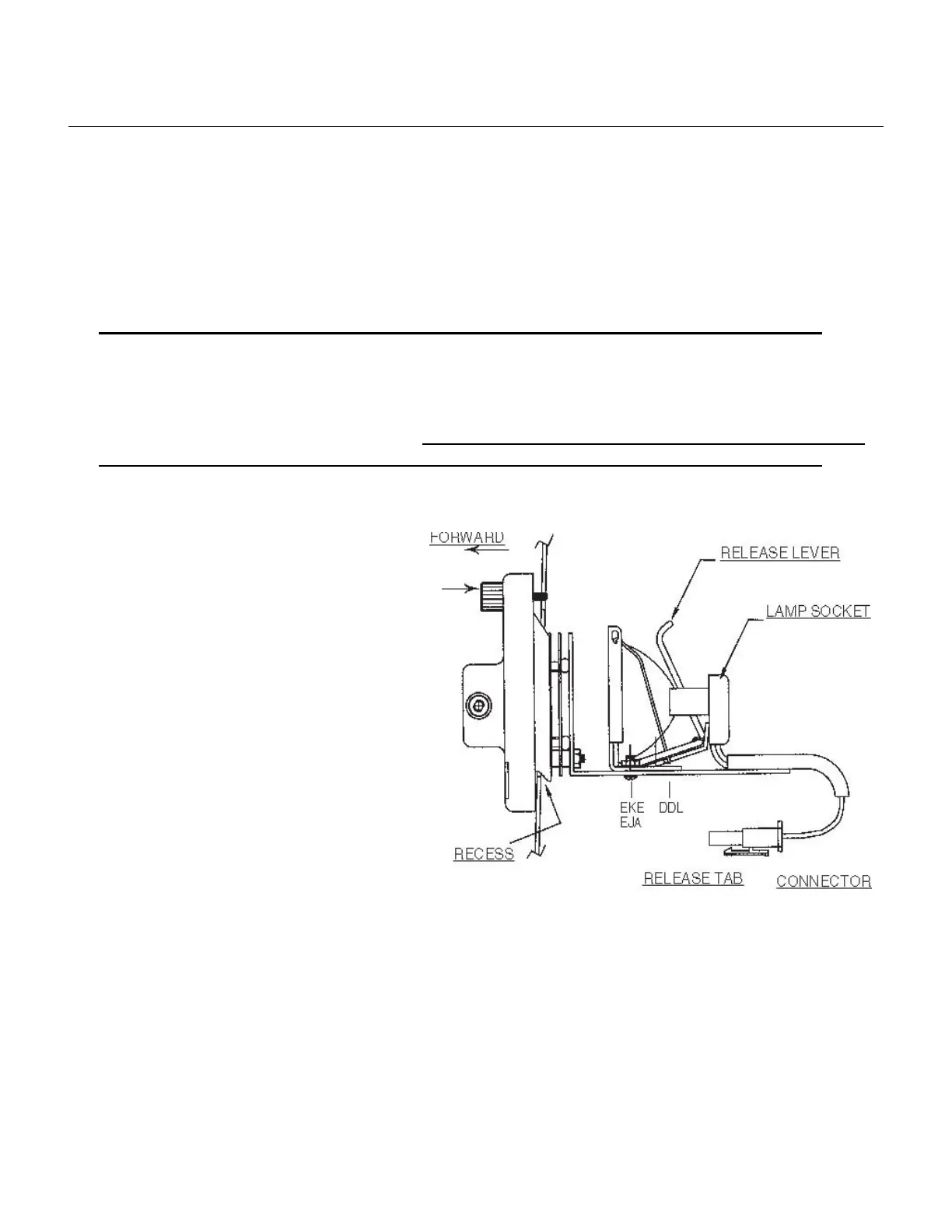

• Loosen the “Modulamp” captive thumbscrew until the head springs forward.
• Pull the top of the “Modulamp” assembly forward and lift the unit out of the recess.
CAUTION: LAMP, LAMP SOCKET AND SURROUNDING SURFACES MAY BE HOT!
Do not pull the Assembly beyond the length of the cable and connector assembly. You can
remove the “Modulamp” assembly, if you desire. Instructions follow.*
• Push down on the lampholder release lever to raise the lamp.
• Gently unplug the ceramic lamp socket.
• Insert a new bulb into the lamp socket. BE CAREFUL NOT TO TOUCH THE BULB OR THE
INSIDE OF THE REFLECTOR. FINGER-PRINTS MAY AFFECT THE LAMP OUTPUT.
• Push the ceramic socket on the two lamp pins until flush with the reflector.
TO REPLACE THE “MODULAMP” ASSEMBLY:
• Slide the connector into the mating receptacle until the release tab clicks into place.
• Place the “Modulamp” assembly into the recess with the two bottom “ears” riding over the
bottom edge of the recess first.
• Slide the “Modulamp” assembly into place and depress the captive thumbscrew while turning
clockwise. TIGHTEN FIRMLY.
TO CHANGE BULB TYPES
• The “Modulamp” concept allows quick change of bulb, bulb type and/ or intensity control (Iris
diaphragm or solid state rheostat) by exchanging “Modulamp” assemblies. However the bulb
CAPTIVE THUMBSCREW
LIFT
TO REMOVE THE “MODULAMP”
ASSEMBLY:
• Make sure the power switch is off.
• Reach into the recess and depress the
release tab on the connector.
• Slide the connector apart and remove
the “Modulamp” assembly.
