4.5.2 Recorder (analog output)
You can transmit the data to a recorder via the analog out-
put. Connect the analog output to the recorder via the Z394
interface cable.
The data output switches automatically to
recorder output .
Note
Activate the analog output by connecting 2 and 3 or use the
original cable.
The signal range of the analog output depends on the mea-
sured parameter and the measuring range:
Measuring range Voltage Resolution
0.000 ... 1.999 µS/cm 0 ... 1999 mV 1 mV
0.00 ... 19.99 µS/cm 0 ... 1999 mV 1 mV
0.0 ... 199.9 µS/cm 0 ... 1999 mV 1 mV
0 ... 1999 µS/cm 0 ... 1999 mV 1 mV
0.00 ... 19.99 mS/cm 0 ... 1999 mV 1 mV
0.0 ... 199.9 mS/cm 0 ... 1999 mV 1 mV
0 ... 500 mS/cm 0 ... 500 mV 1 mV
Measuring range Voltage Resolution
0 ... 70.0 0 ... 700 mV 1 mV
Measuring range Voltage Resolution
0 ... 1999 mg/l 0 ... 1999 mV 1 mV

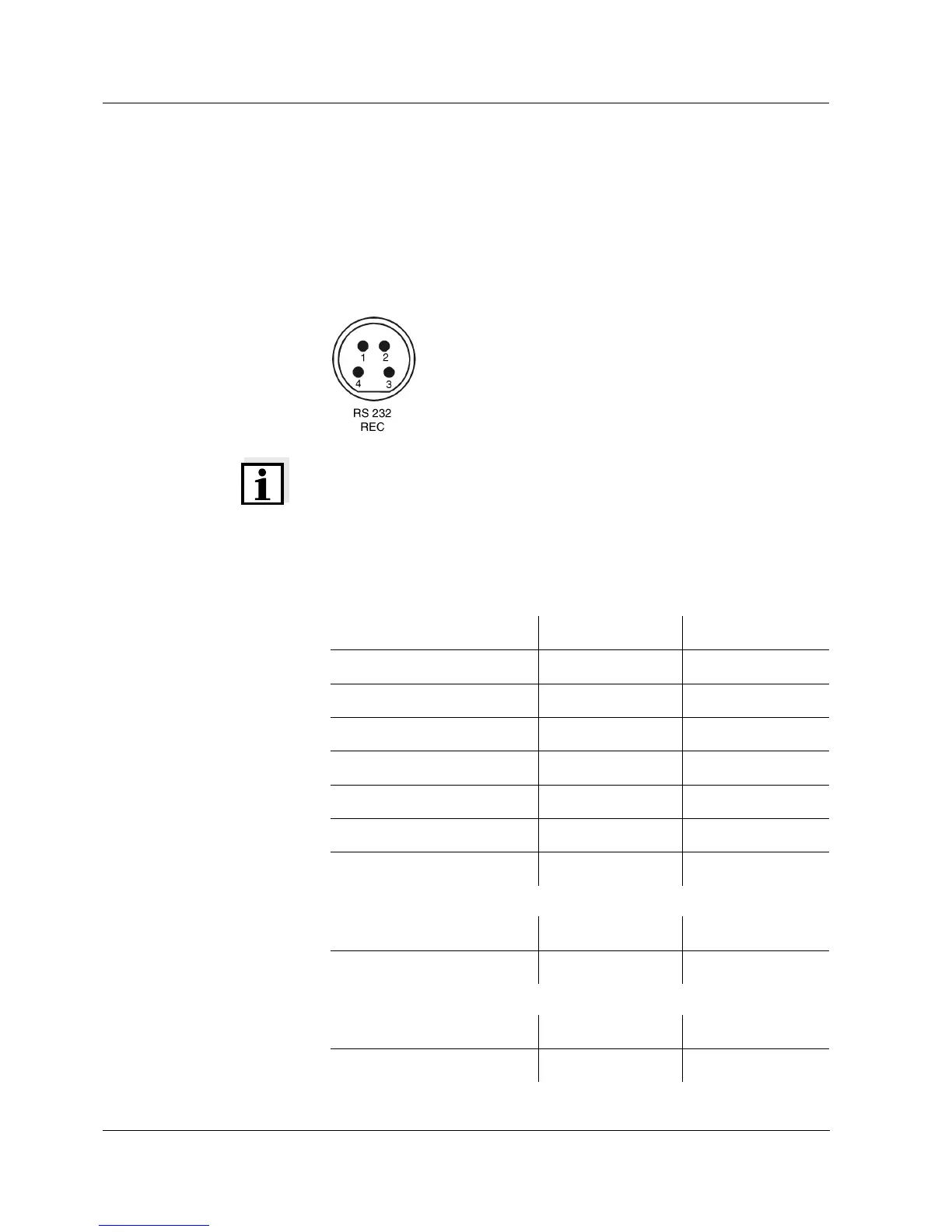

Socket assignment
1 Free
2 Plug coding
3 Ground
4 Analog output
(Internal resistance < 5 Ohm)
Conductivity
/
resistance
Salinity
TDS
