68 69
english
2. The face shield will then audibly
lock into place when you press it
gently towards the helmet with a
simultaneous closing movement.
3. Make sure that the face shield
mechanism is functioning properly
by opening the face shield once to
its maximum extent.

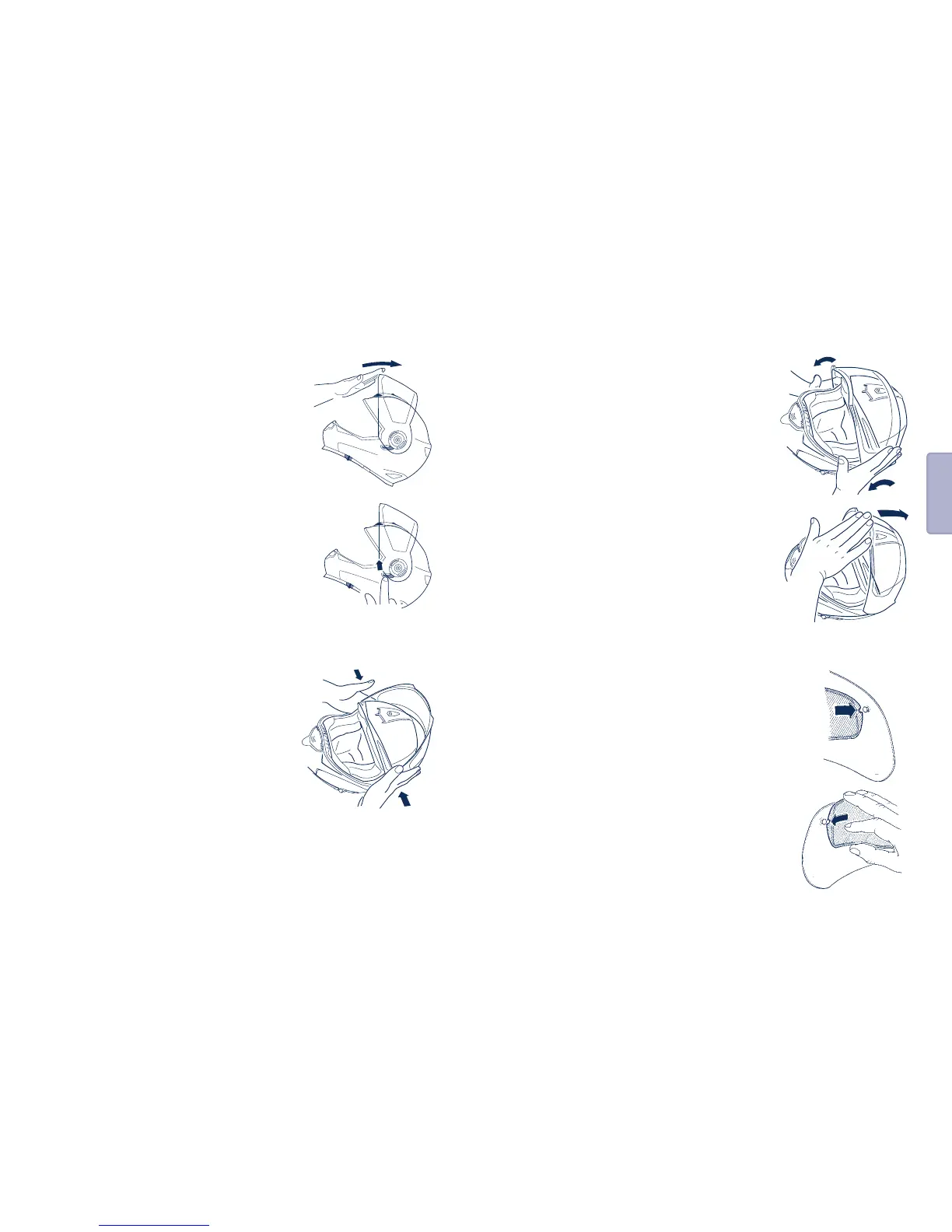

PINLOCK
®
VISOR
Fitting
1. Lay the Pinlock
®
visor in the face
shield in such a way that one side
of it is already slotted into the
locking pin and the silicone seal is
on the side facing the face shield.
2. Now grasp the other side of the
Pinlock
®
visor by its upper and
lower transverse edges and use
your index finger to gently press
the end of the visor into a slight
"S" shape. Now you can easily
guide the slot over the locking pin
and release the Pinlock
®
visor into
place.
Removing the face shield
1. Move the face shield into the
uppermost locked position.
2. Press the spring underneath the
face shield mechanism on one side
towards the face shield opening,
then do the same with the spring
on the other side.
3. Move the face shield upwards until
it is released from the face shield
mechanism.
Fitting the face shield
1. Using both hands, guide the face
shields locking studs into the
respective recesses in the face
shield mechanism.
english
D. THE HELMET
