English
27
2.
A. B.

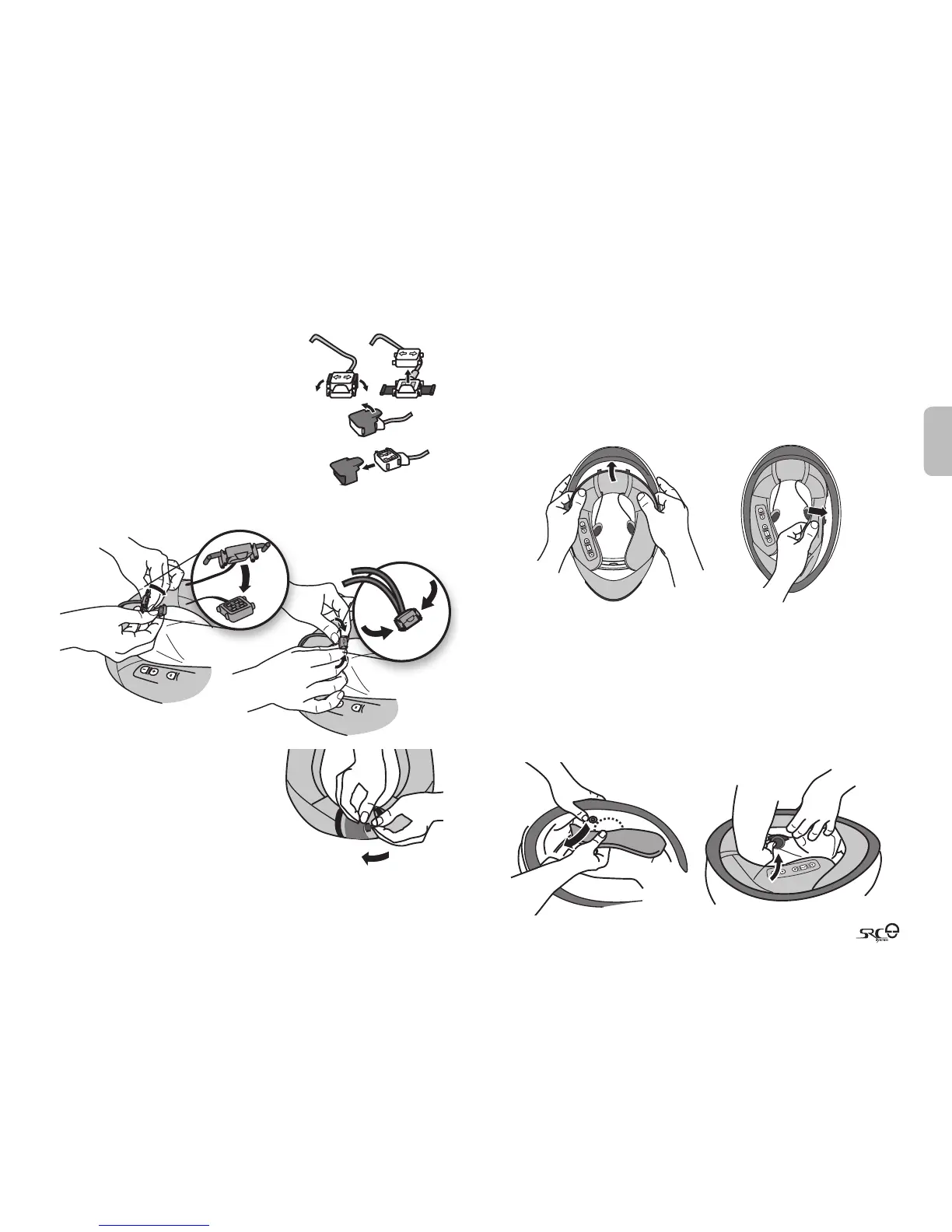

On the SRC collar open the two fasteners
on the antenna connector and remove the
protective plastic cover.
3.
A.
B.
On the helmet remove the rubber
protector from the antenna
connector.
4. Align the two connector heads and snap the two fasteners back into place to
lock the connector in a closed position.
5. The antenna connector can now be
safely stowed away inside the antenna
connector pocket on the center of the
SRC-System™.
5.3 ATTACHING THE SRCSYSTEM™
1. Make sure to place the speaker and microphone cords inside the helmet, and
then secure the SRC-System™ into place.
2. Push and insert the SRC-System™ starting from the back of the helmet area.
Do the same for the sides of the SRC-System™ and then the front of the
helmet area to secure the SRC-System™ into place.
5.4 POSITIONING THE SPEAKERS
For best audio results, make sure that both of your speakers are placed as closely
as possible just opposite your ears.
The following applies to both sides of the SRC-System™:
1. Open the rear red button located under the interior lining that covers the cheek
pads (the button is held by a black ring). Lift the lining slightly.
2. Attach the corresponding oval Velcro pads to the speaker-shaped indentations
on the EPS (expanded polystyrene) and position the speakers on the Velcro pads.
