ASSEMBLY
FX-318 - FX212 08/21 Assembly Section 3-6
© 2021 Alamo Group Inc.
ASSEMBLY

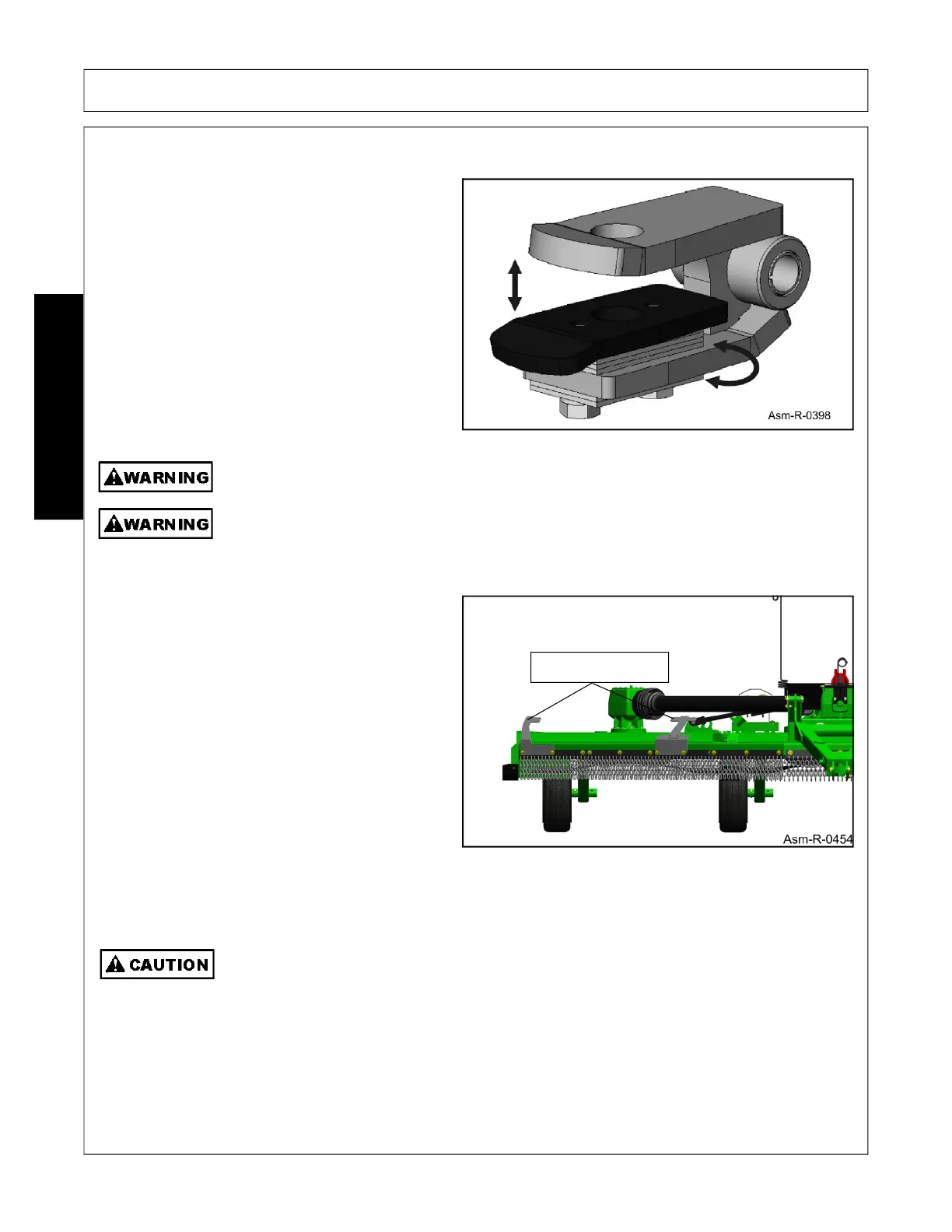

PRECISION CLEVIS– C000-360
Adjust the opening of the precision clevis by
shimming the wear plate with the spacers. Remove
the two 5/8” bolts and lockwashers and stack the
spacers between the wear plate and the hitch block
until the opening measures less than 1/8” taller than
the drawbar. Replace unused spacers under the
hitch block and reinstall the lockwashers and bolts.
NEVER USE YOUR HANDS TO STEADY THE HITCH BLOCK WHILE THE TRACTOR IS
BEING BACKED TO THE HITCH
NEVER STAND BETWEEN THE TRACTOR AND THE ROTARY CUTTER WHILE THE
TRACTOR IS BEING BACKED TO THE HITCH
TRACTOR SHAFT
After the wings are lowered to the ground, remove
the tractor shaft from shipping brackets on the wing.
Longer Bolts have been used to mount to mount the
shipping bracket on the machine then needed for
the chain guard. Remove these bolts from the
machine and replace them with the carriage bolts
provided in the manual container. Attach the tractor
shaft to the divider gearbox. See Driveline
Attachment in the Operation Section.
Remove the tractor shaft shipping brackets from the
machine.
TRANSPORT LIGHT KIT– S000-085
Use FLASHING WARNING LIGHTS when traveling on public roads day or night, unless
prohibited by law.
If the rotary cutter obscures the tractor warning or tail lights, the rotary cutter MUST be equipped with a
transport light kit.
Check local highway regulations concerning moving machinery on highways.
Shipping Brackets
