ASSEMBLY
FX-318 - FX212 08/21 Assembly Section 3-9
© 2021 Alamo Group Inc.
ASSEMBLY

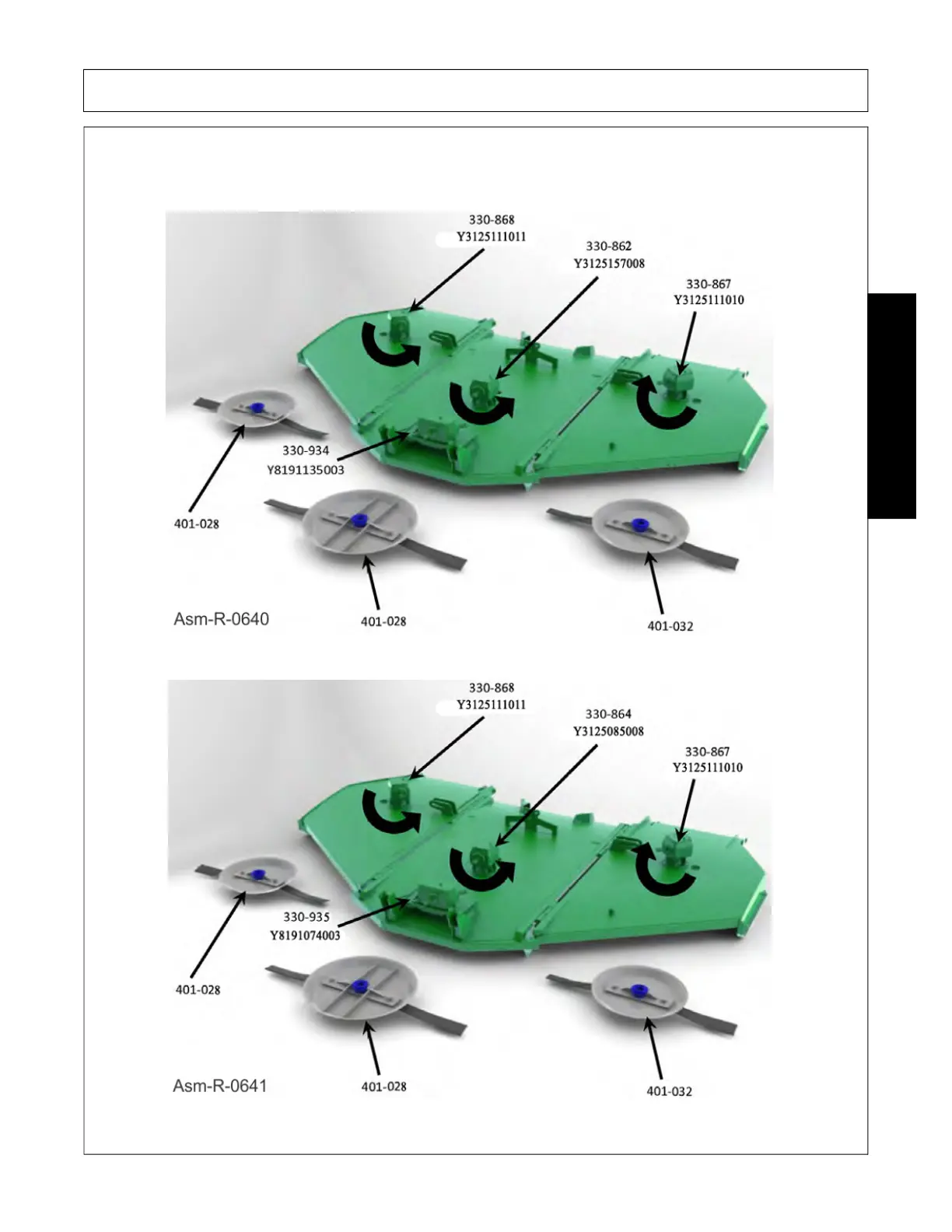

GEARBOX LAYOUT & BLADE ROTATION
CCW Pan Machine - 540 RPM
CCW Pan Machine - 1000 RPM
