Schulz AIR PLUS - Electrical Installation Guidelines; Installation Table and Safety Circuit; Procedure for Use: Initial Steps and Safety; Pre-Use Safety and Area Check

35
FIGURE 9.1
0
1545
30
9. PROCEDURE FOR USE
ELECTRIC SAFETY
Figure 8.1 shows the connection plug-inlet. For your safety against electric shock, only use your paint spray
in structures with residual differential circuit breaker (RD) of 30mA. If necessary, hire an electrician you trust and
ask for the installation of this safety component part.
- Before using the paint spray, make sure there are no people or pets in the operating
area. - When using an electric product, certain basic safety precautions must be observed in order to reduce
risks of  re, electric shock and personal injury.
- Make sure the paint spray is turned off and disconnected from the energy inlet before starting the procedures
that follow the preparation for use.
- Accident danger! Never press the activation trigger during the adjustment of the paint regulator.
- Never point the gun in your direction, especially when it is energized.
ATTENTION

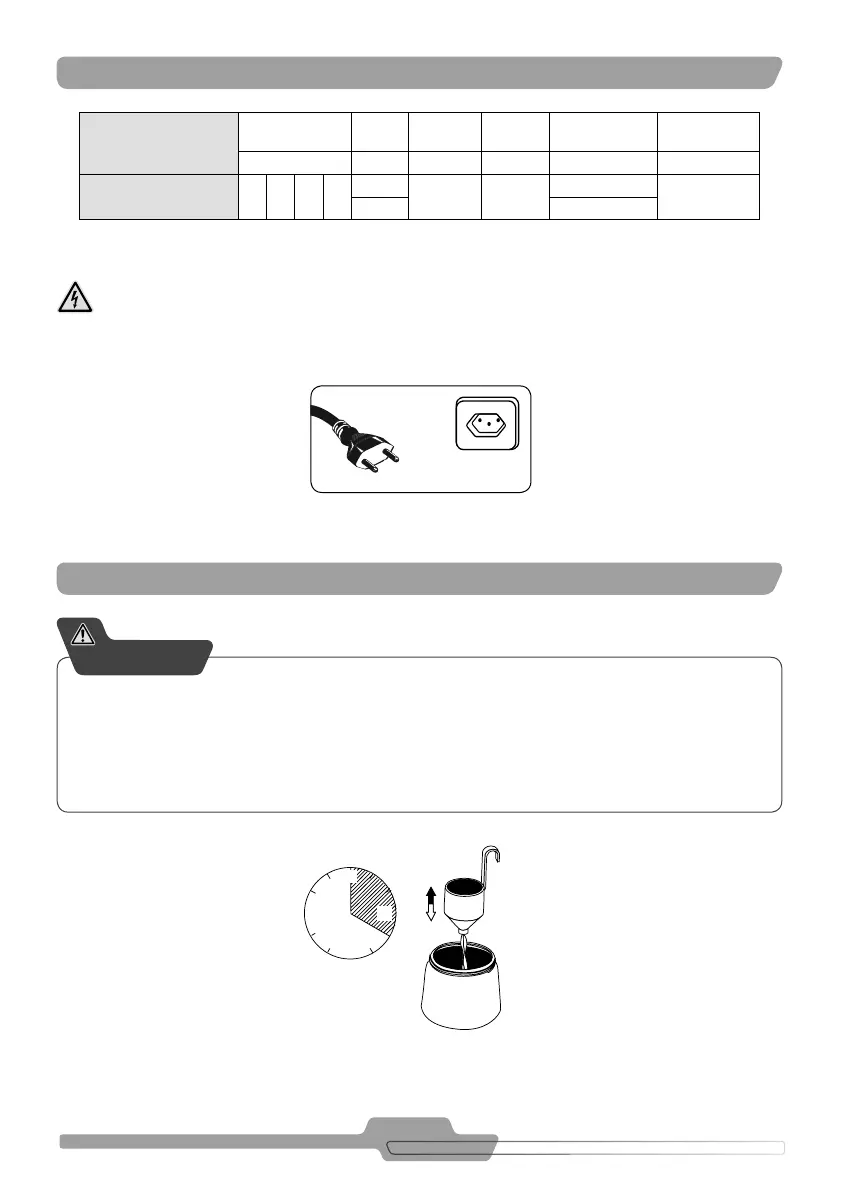

TABLE 8.1 – ELECTRIC INSTALLATION
8. INSTALLATION
FIGURE 8.1 – CONNECTION OF THE PLUG TO THE INLET
MODEL
Power Voltage
Cable
(Min. section)
Fuse Circuit
breaker
Maximum distance of
the distribution board
Extension up to 10m
(Minimun section)
W V mm² A metros mm²
Air Plus Spray Schulz 250 450 600 700
127
1,5 10
10
1,5
220 30
