10

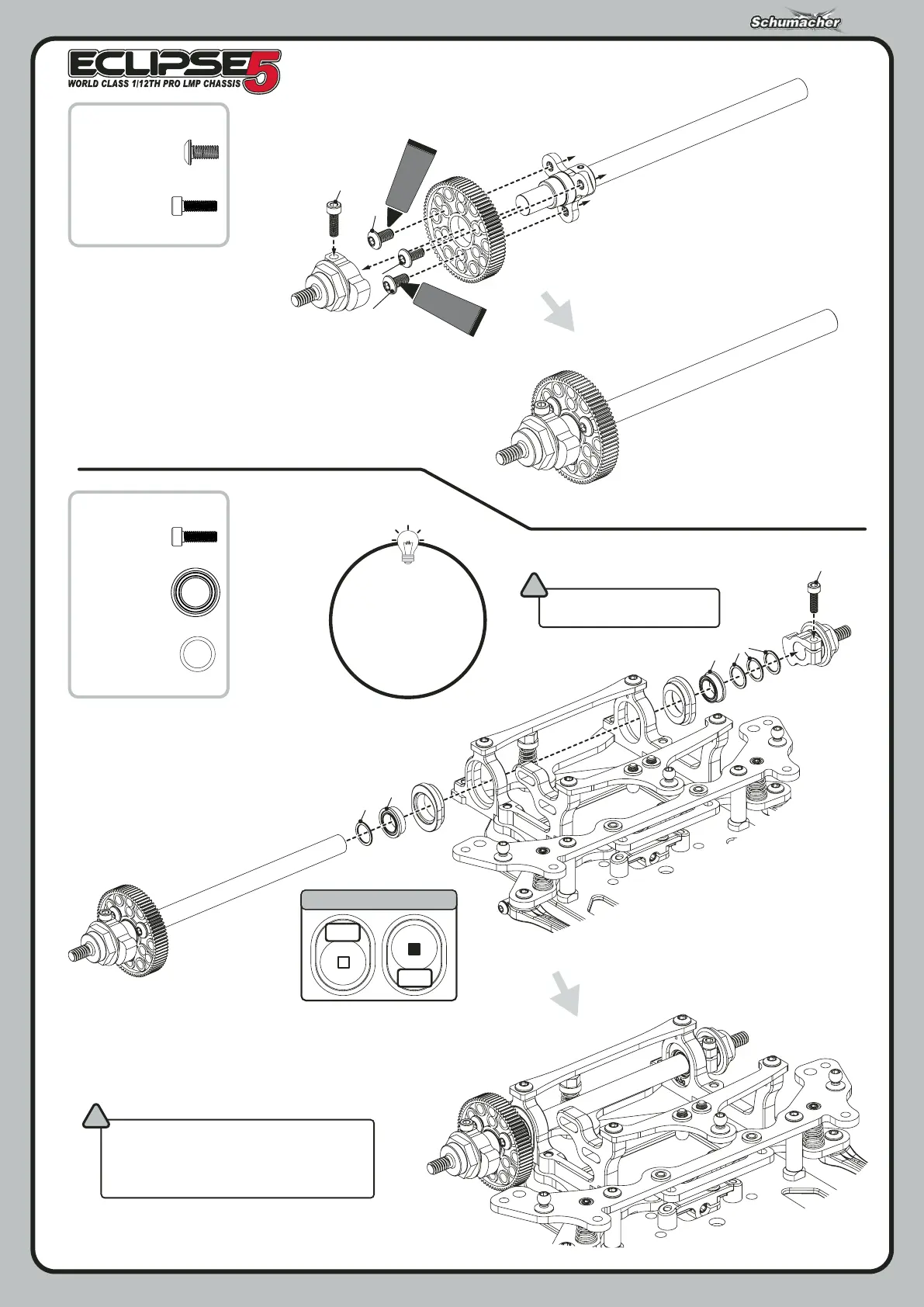

STEP 10b
TEAM TIP
Press a 0.2mm feeler
gauge between
bearing ‘B’ and spacer
‘C’ when tightening
screw ‘A’. This easily
offers the perfect
setting.
A x1
M2.5 x 8 Cap Hd Screw
B x2
1/4” x 3/8” Flanged Bearing
C x4
1/4” x ø8mm x 0.50 Spacer
STEP 10a
A
x3
B x1
M3 x 6 Button Hd Screw
M2.5 x 8 Cap Hd Screw
A
A
A
B
B
B
C
C
A
0.50
The eccentrics are used to adjust the ride
height. There are 8 different eccentrics, 7 of
which can be flipped to give a total of 15 options.
See page 17 to choose an appropriate one
for your tyre size.
!
Ensure the spool rotates freely
with minimum end float.
!
Eccentric Height
0.25
Eccentric Height
0.50
THREAD LOCK
BLUE CR520
THREAD LOCK
BLUE CR520
