03
Screw ‘E’ must not be over tightened!
Allow a small clearance between the
screw head and the plastic part to
ensure a free pivot in the step 4.
!

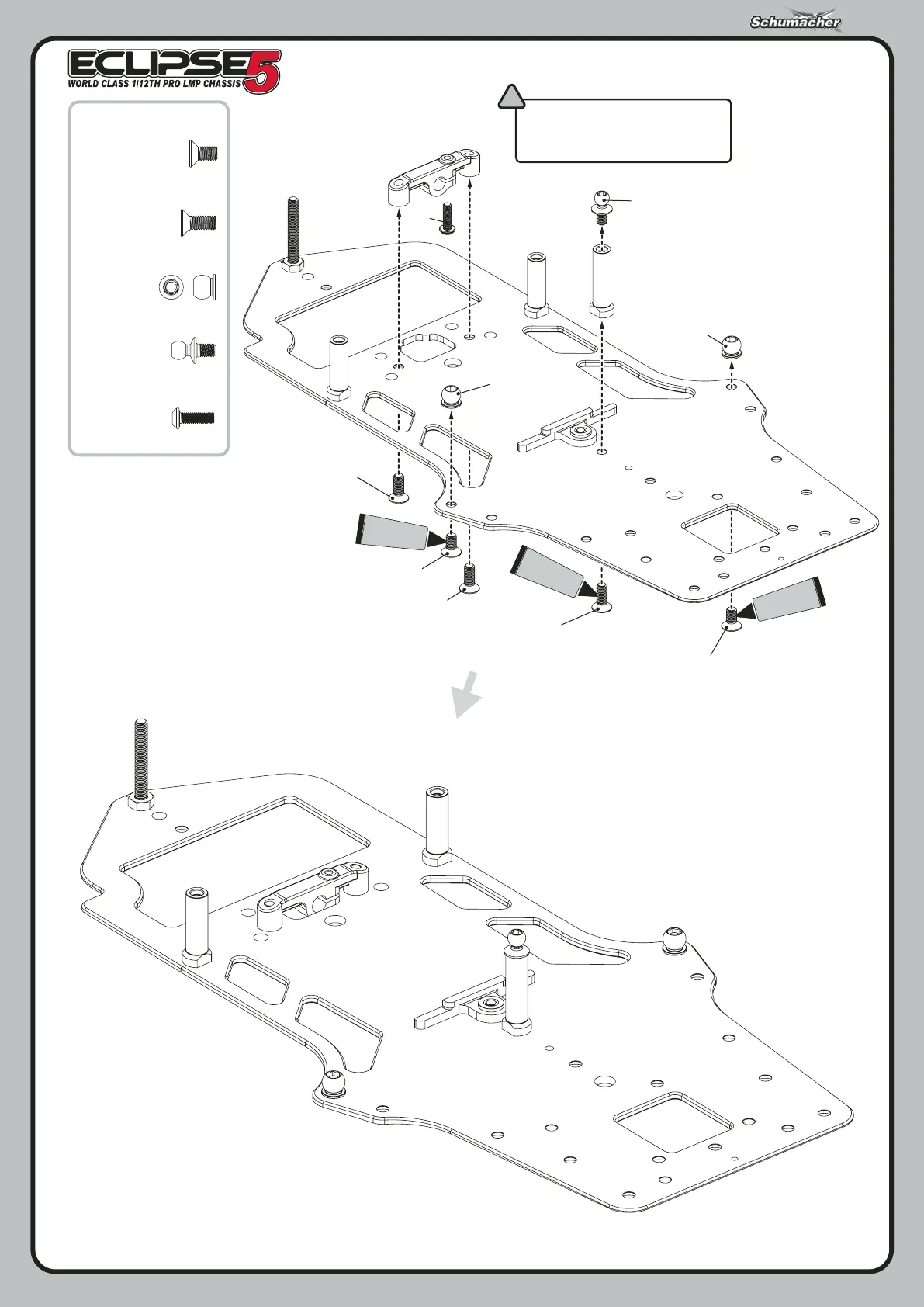

STEP 2
A
x2
B x3
M3 x 6 Csk Hd Screw
M3 x 8 Csk Hd Screw
C x2
D x1
E x1
5.5mm Pivot Ball
Ball Stud Ultra Short
M2.5 x 8 Button Hd Screw
D
A
A
B
B
B
C
C
E
THREAD LOCK
BLUE CR520
THREAD LOCK
BLUE CR520
THREAD LOCK
BLUE CR520
