04
THREAD LOCK
BLUE CR520
THREAD LOCK
BLUE CR520
THREAD LOCK
BLUE CR520
THREAD LOCK
BLUE CR520
Setting this 1.5mm is a good starting point
and will result in a rear droop of 1mm.
!
Use only the Purple Thread Lock on
this screw! (CR865 - Included)
Using the Blue will result in insert ‘D’
falling out when setting droop.
!
THREAD LOCK
PURPLE CR865
1.5mm
C
C
D
C
C
E
E
C
C
I
G
I
B
B
A
A
H
H
F
D
F
D
C

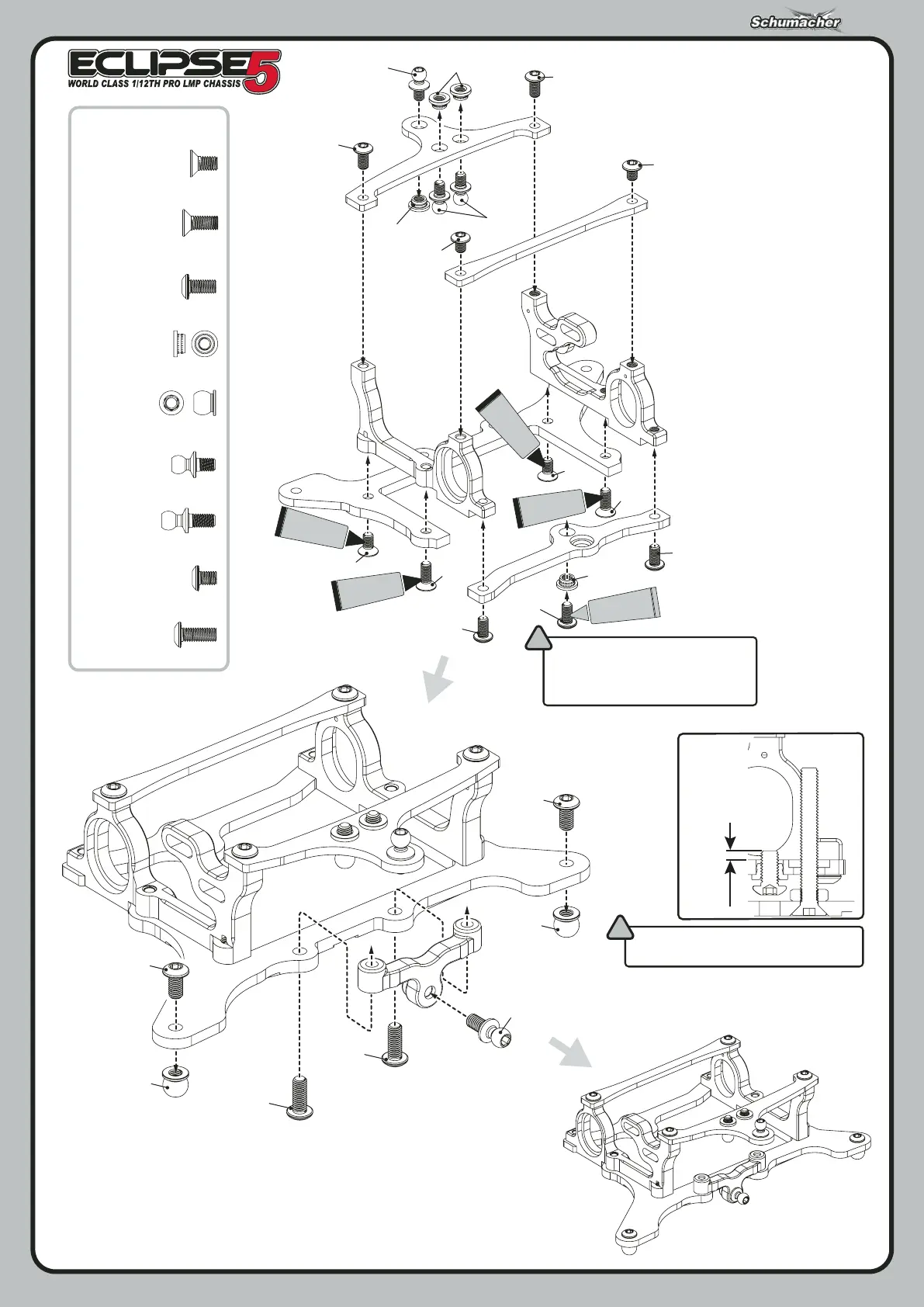

STEP 3 and 4a
A
x2
M3 x 6 Csk Hd Screw
B x2
M3 x 8 Csk Hd Screw
C x7
D x4
M3 Thread Insert
G x1
M3 x 6 Button Hd Screw
F x3
E x2
5.5mm Pivot Ball
Ball Stud Ultra Short
Silver Ball Stud Short
H x2
M3 x 4 Button Hd Screw
I x2
M3 x 8 Button Hd Screw
